9410 series Logging
Log depth configuration
You can change the number of records (depth) stored in the log.
Use ION Setup to change the maximum number of records (depth) stored in the log in
the meter’s long-term memory.
Data logs and circular-format waveform recorders have a minimum depth of 2 records.
The maximum depth is dependent on your meter’s memory and the configuration of
your other logs.
Log interval configuration
You can configure the logging interval, which is how frequently records are logged.
For example, a 15-minute interval results in records being logged at 1:00, 1:15, 1:30,
1:45, and so on
You can change the logging intervals for most logs using the ION Setup Assistant
Logging > Memory screen.
Changing the interval for other logs (for example, logs that are related to standards or
triggered by disturbances) is an advanced procedure that involves using the Advanced
mode of ION Setup to modify settings in the module that is linked to the log’s Record
input. See the ION Setup help and the ION Reference for more information.
Programming your meter to write to any data recorder at continuous intervals shorter
than 60 seconds (heavy logging configuration) can cause loss of data in the event of a
power failure.
NOTICE
DATA LOSS
Failure to follow these instructions can result in data loss.
Use an uninterruptible power supply (UPS) if you program your meter for heavy
logging.
Log mode configuration
You can configure the log record mode, or how the log behaves when full.
Changing how the log records information (circular or stop-when-full) is an advanced
procedure that requires changing the RecordMode setup register in the Data Recorder
and Waveform Recorder modules.

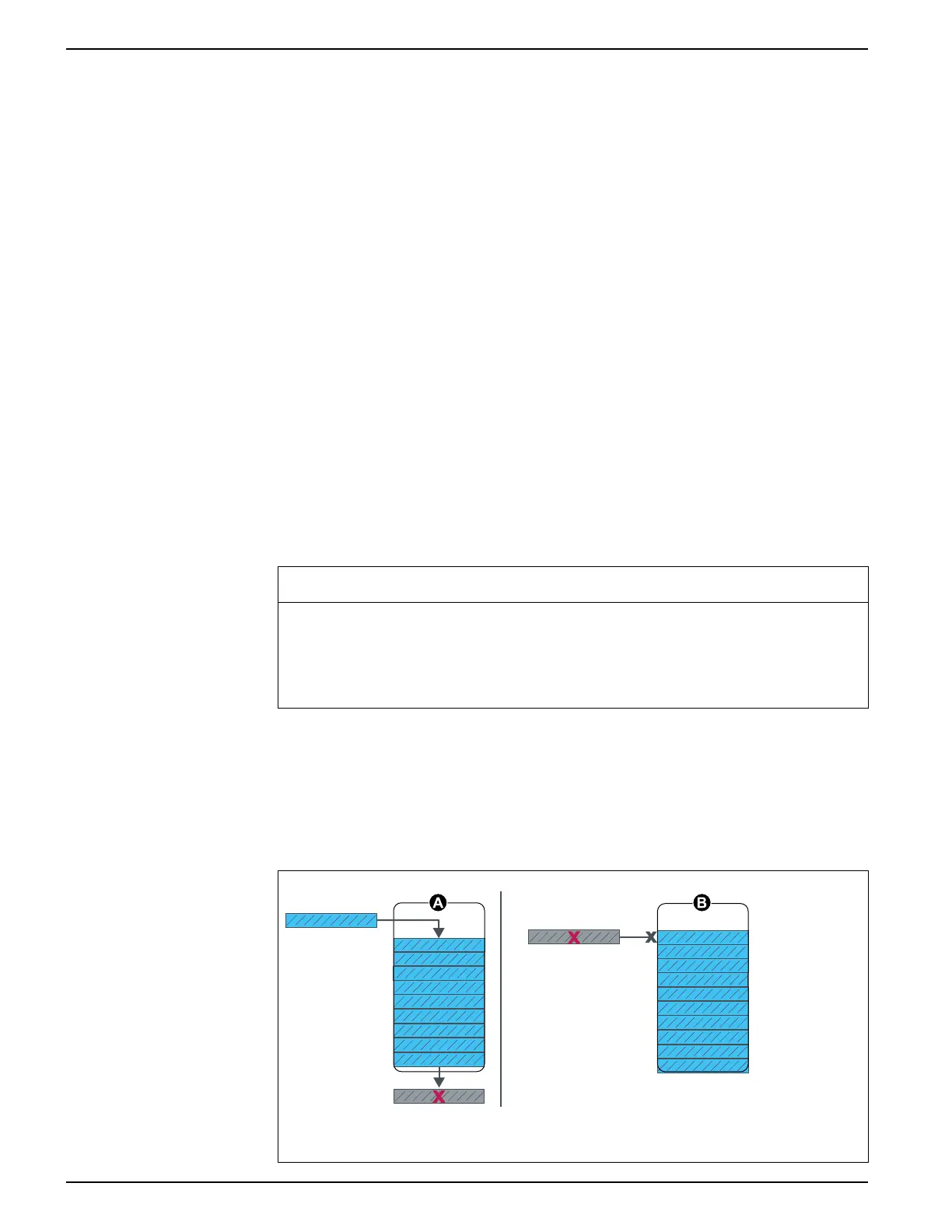

A. Circular (FIFO) logging mode: when the log is full, a new record overwrites the oldest record
B. Stop-when-full logging mode: when the log is full, any new records are not logged
130 7EN05-0336-03
