9410 series Meter display

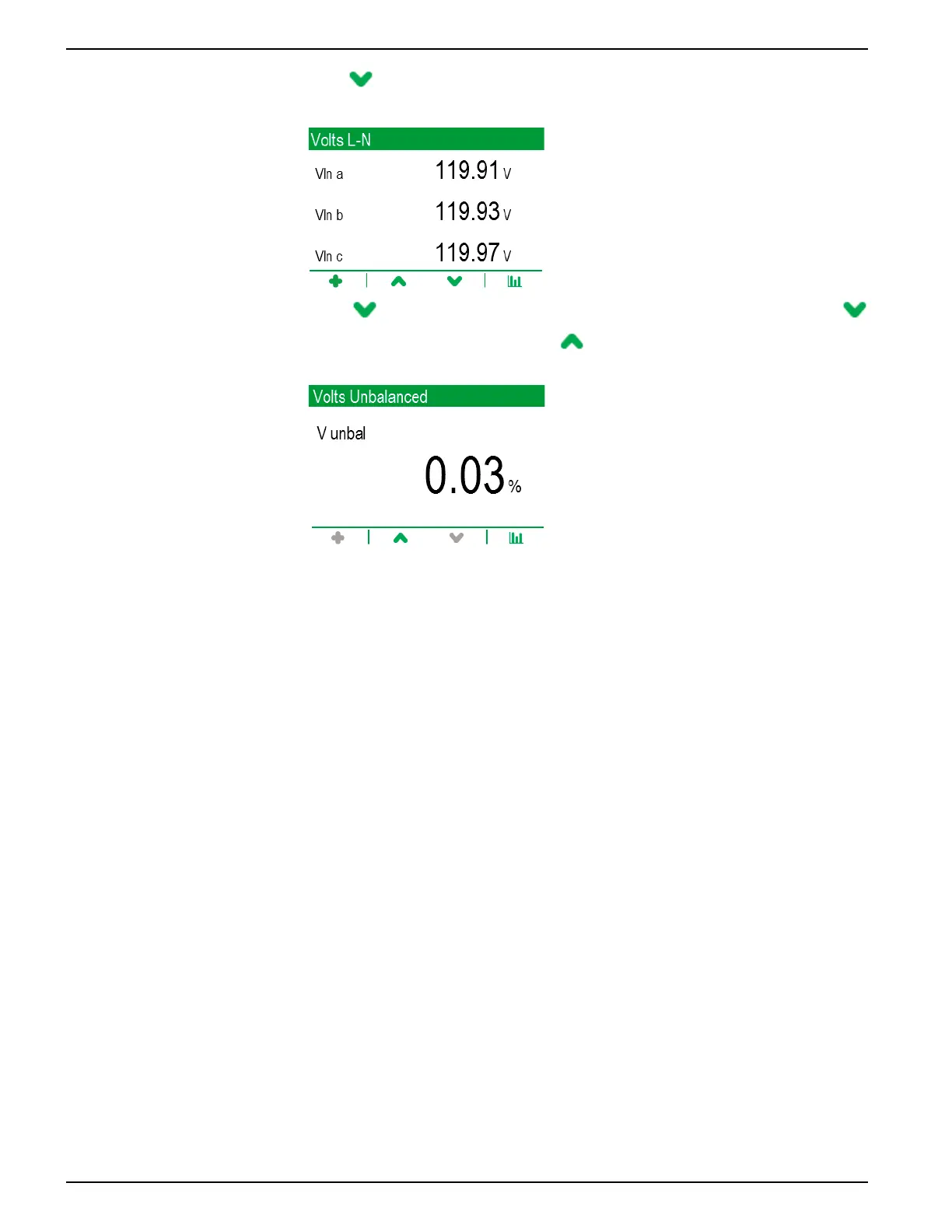

5. Press to view Volts L-N, which also has additional screens and the ability to
view the information in a graphical format.
6. Press again to view Volts Unbalanced. This is the last voltage screen, so
is grayed out and unavailable. Press to return to Volts L-N, and press again to
return to Volts L-L.
Setup menu
Meter configuration can be performed through the display, using the meter’s webpages
or through software.
This section contains information on how to set up the meter using the display. You
must have your meter’s security settings configured to allow front panel (display)
programming in order to set up the meter using the display.
NOTE: Your display may appear differently than shown, depending on your
meter’s power system, configuration and display settings.
NOTE: Some setup parameters cannot be configured when revenue security is
enabled.
