Meter display 9410 series
TOU Season
TOU Active Rates
IPv4 Assignment Mode Setup
Stored IPv4 Address Setup
DNS Setup
COM1 Setup
NTP Address
SMTP
Address
IPv6 Assignment Mode Setup
IPv6 Link Local Address
Stored IPv6 Global Address
Ethernet Device Name
Date & Time Setup
Clock S etu p
Screen Setup
Label & Symbol Setup
Numeric Format Setup
Sample
Volts Mode
Sample
PT/CT Setup
Sample
Voltage Polarity Setup
Sample
Current
Polarity Setup
Sample
Nominal Values
Sample
Ethernet Port Enable Setup
Alarm Setup
Password Setup
Password Setup
Resets
Language Setup
Ethernet Port Enable Setup

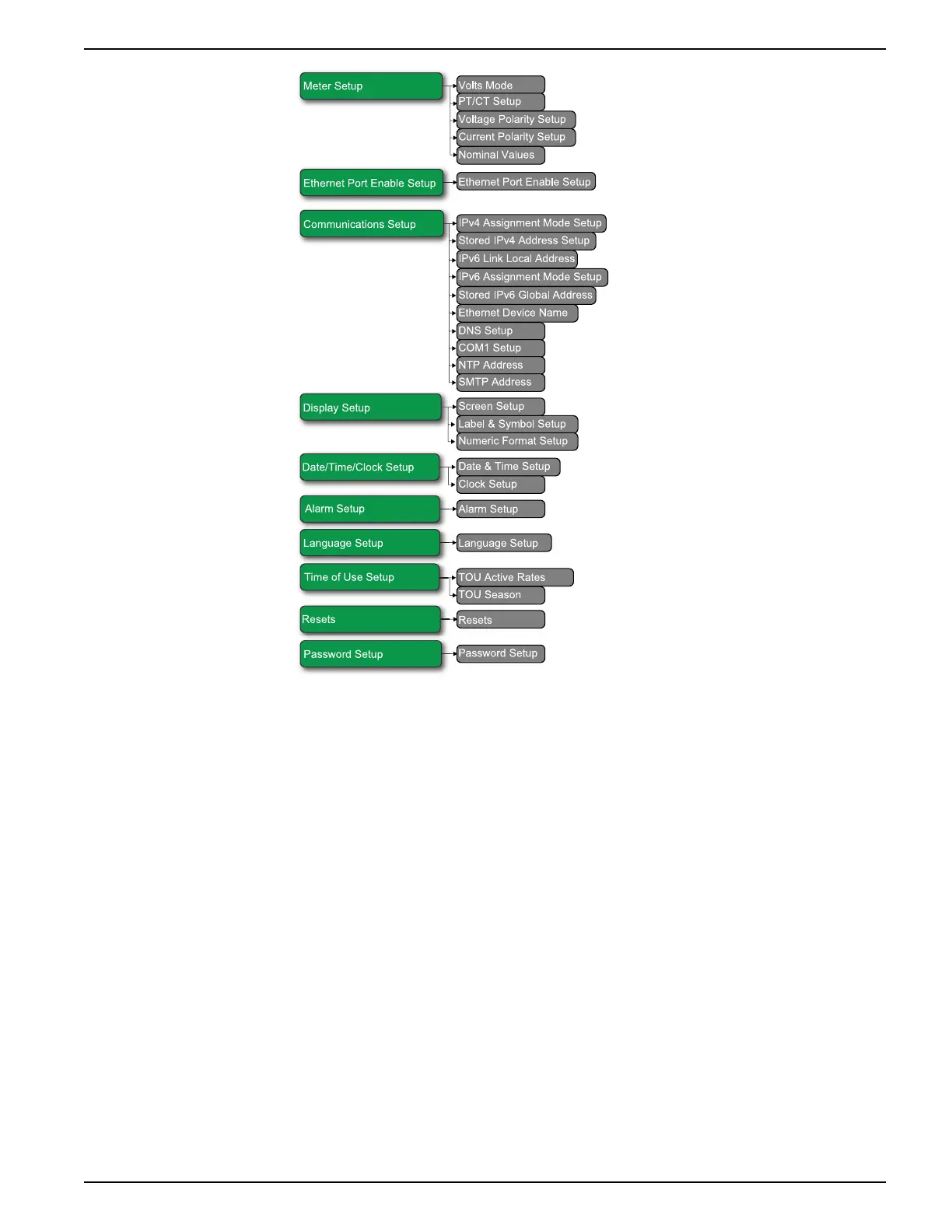

Meter Setup
Communications Setup
Display Setup
Date/Time/Clock Setup
Alarm Setup
Language Setup
Time of Use Setup
Resets
Meter setup using your meter’s display
Use the navigation buttons and displayed parameters to configure your meter.
The following example shows how to use the navigation buttons to select parameters,
enter numeric information or select parameter values from lists.
NOTE: Your display may appear differently than those shown, depending on your
meter’s power system and display and localization settings.
NOTE: Your navigation icons change color depending on the type of screen being
viewed. If an icon is gray, that navigation option is not available and nothing will
happen when you press the button associated with that icon.
NOTE: Your meter goes back to displaying data after a period of inactivity in the
setup menu screens.
NOTE: Your meter locks you out of display configuration after you have exceeded
the maximum number of attempts to enter an password.
Your meter’s default display password is 0 (zero).
Example: setting volts mode and PT/CT ratios
Use the display navigation buttons to set your meter’s volts mode and PT ratios.
NOTE: Potential transformers (PT) are also known as voltage transformers (VT).
7EN05-0336-03 35
