Meter display 9410 series
Related Topics
• LED locations
Navigation symbols
Navigation symbols are displayed on the bottom of the screen above their
corresponding navigation button.
NOTE: If the symbol is gray, that navigation function is not available.

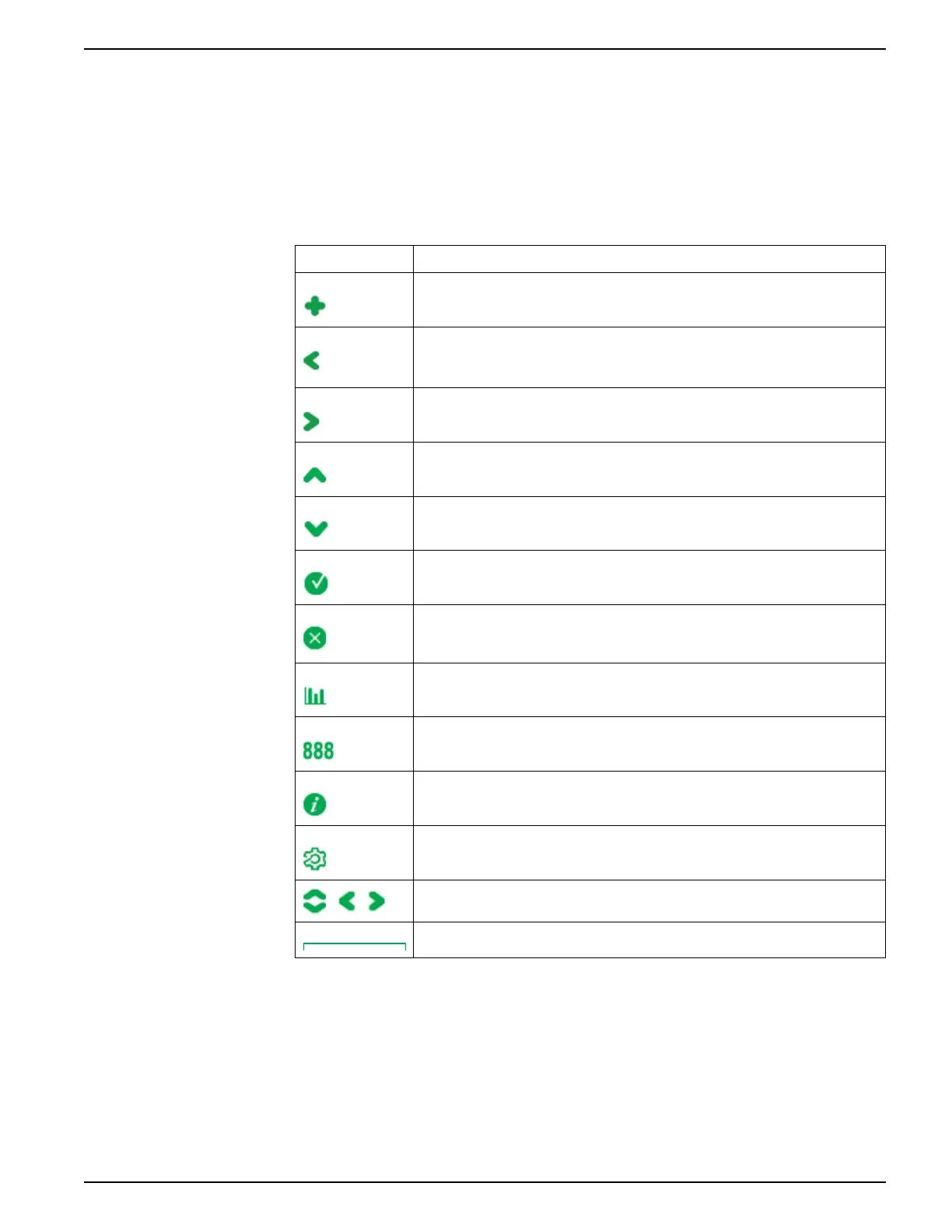

Symbol Description
More
Pressing this button displays additional screens.
Left
Pressing this button moves the displayed cursor one position to the left. If you are in
a more or info screen, it returns you to the previous screen.
Right
Pressing this button moves the displayed cursor one position to the right.
Up
Pressing this button takes you to the previous screen or menu item.
Down
Pressing this button takes you to the next screen or menu item.
Select
Pressing this button selects or confirms the highlighted value.
Cancel
Pressing this button cancels the current selection and returns you to the previous
screen.
Graphic
Pressing this button takes you to a graphical data display.
Numeric
Pressing this button takes you to a numeric data display.
Info
Pressing this button takes you to a detailed information screen.
Edit
Pressing this button allows you to edit the displayed parameter.
Pressing these buttons allow you to navigate parameter tables in the setup screens.
Pressing both buttons allows you to perform the described action.
More screens access
You can access additional screens.
Pressing the navigation button associated with the more icon brings up a list of
additional screens related to the displayed screen. Press cancel to remove the list. If
you do not press any button, the list automatically disappears after a short period of
time.
7EN05-0336-03 29
