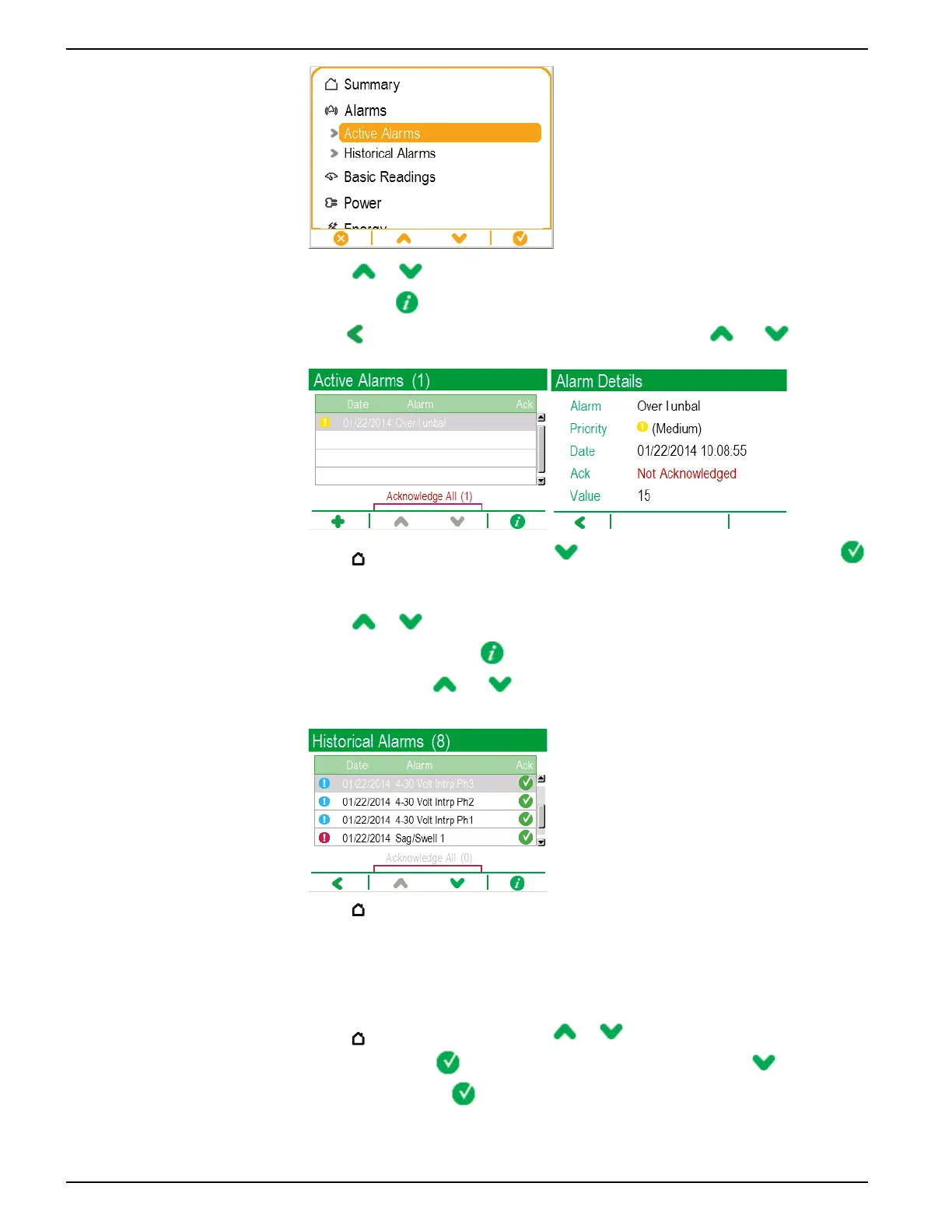

2. Press or to highlight a specific alarm, in this case an unbalanced currents
alarm. Press
to display detailed information about the highlighted alarm, and
press
to return to the Active Alarms screen. Press both and
simultaneously to acknowledge all active alarms.
3. Press to display the menu. Press to highlight Historical Alarms. Press
to display historical alarms. The Historical Alarms title lists, in brackets, the total
number of historic alarms.
4. Press
or to highlight a specific alarm, in this case a 4-30 voltage
interruption alarm. Press
to display detailed information about the highlighted
alarm. Press both
and simultaneously to acknowledge all historical
alarms.
5. Press to return to the menu.
Example: viewing the voltage screens
Use the display navigation buttons to view screens, display detailed information, and
display graphical representations of measured voltage data.
1. Press
to display the menu. Press or until Basic Readings is
highlighted. Press
to view the basic readings screens. Press until Voltage
is highlighted. Press
to view the voltage screens. Voltage line-to-line values
are displayed.
32 7EN05-0336-03
