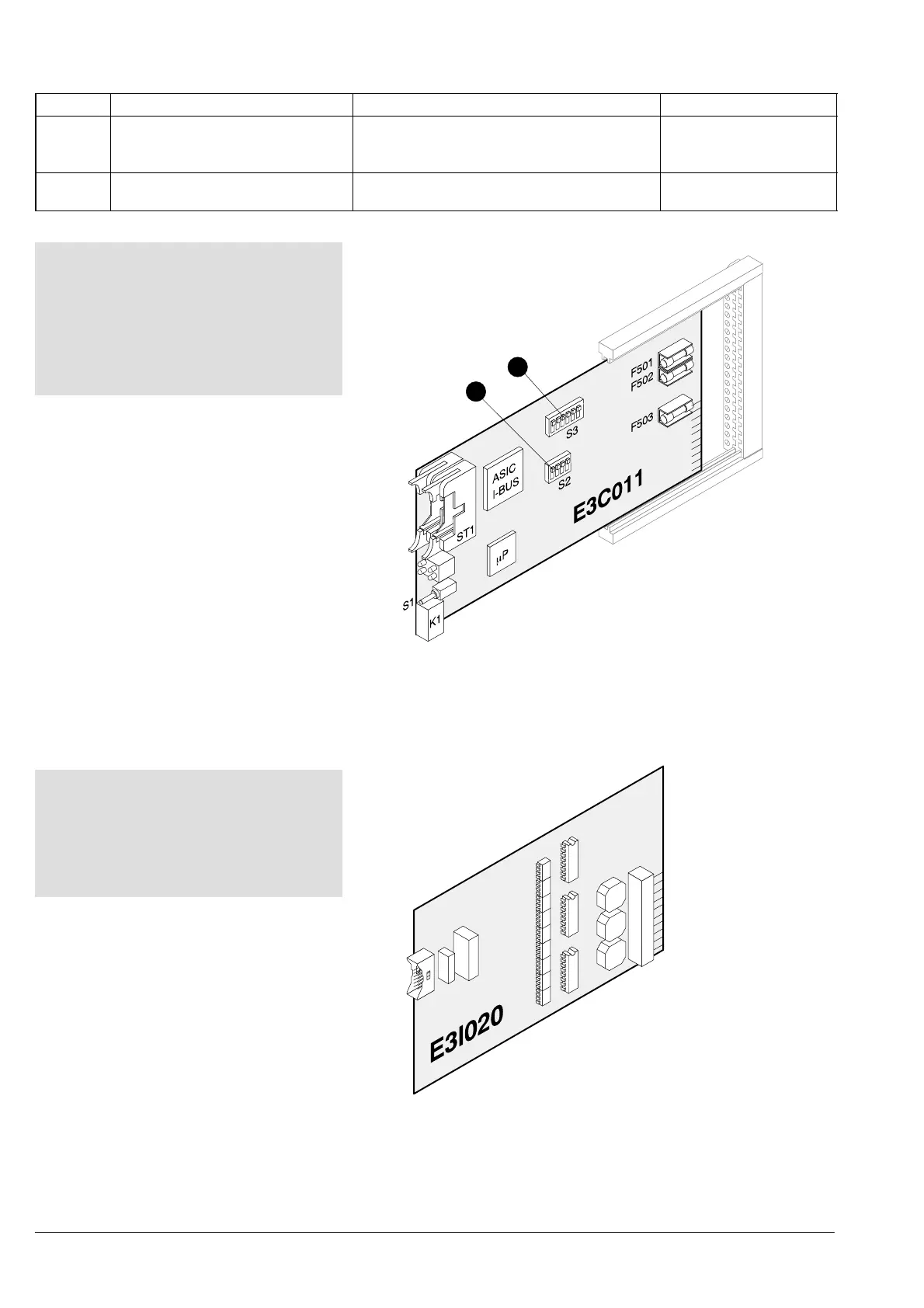

3.4.4 Battery charging module E3C011 (supersedes E3C010)
Pos. Component Preparation Default
1 DIL Switch S2
Battery type
Set to battery type used
 See hardware description
(document e1260)
Type
«ALARMCOM (FIAM)»
2 DIL switch S3
I-Bus address
Set as per system documentation address 0
2
1
Caution!
The jumper between terminals 2 and 3
must always be inserted when the
E3C010 is used ( document e1260)!
On the E3C011 this connection is al-
ready provided on the module.
3.4.5 RS232 module E3I020
Caution!
Never connect or disconnect ribbon
cable when power supply is con-
nected.
This may cause the system to restart.
