Siemens Cerberus CS1140 Commissioning

e1249d3
75
Fire & Security Products
Siemens Building Technologies Group
01.1999
4.10.5 Control unit CI1145
Procedure

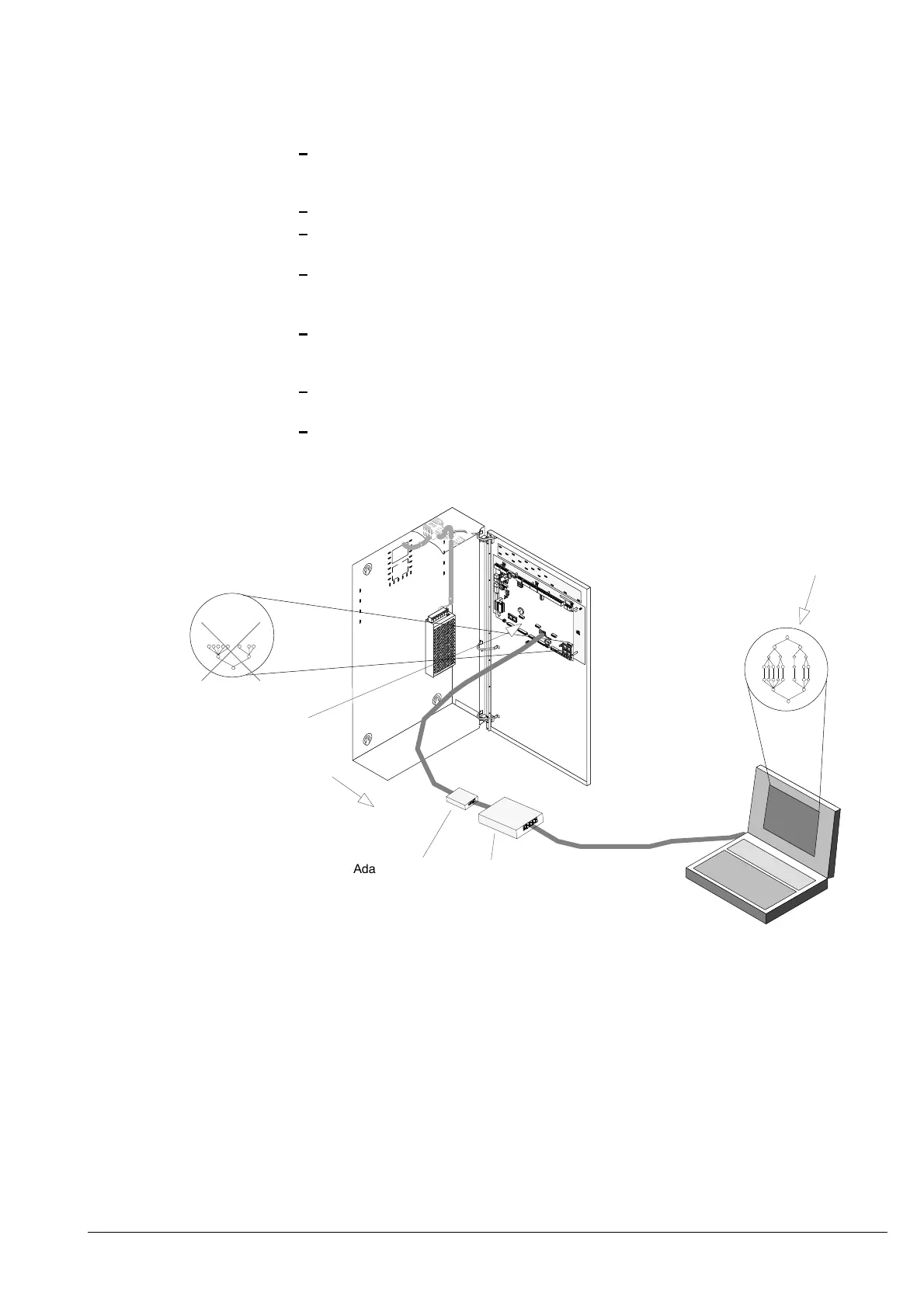

Connect the serial interfaces of the maintenance PC(COM1) and the CI1145 control
unit (connector ST6 on E3X120) via the modem box Z3W050/51 + adapter box
B3D040 or via the modem box B3D021
Start the SWE11
Load the CI1145 control unit configuration data
 Ensure C-Bus address is correct (only C-Bus address no.1 is valid)!
Start transfer of configuration data from the SWE11 to the CI1145 control unit
 Function Comm.  Fast Download –> CS11 (only with modem box B3D021) or
 Function Comm.  Download –> CS11
If there is not enough available memory (RAM) on the control unit, the message ’No
data base memory available’ appears on the SWE11 information line. In such cases,
refer to page 81.
After a successful download the following message appears in the SWE11: ’Operation
successful’
Once the startup procedure on the control unit has been completed, the green ’System
operation ’LED lights up.
CI1145
Loaded CI1145 con-
trol unit configura-
tion data
Existing localization
data in RAM are
erased during a
download !
SWE11
Serial interface
(COM1)
RS232 interface: con-
nector ST6 on E3X120
ÉÉ
É
Adapter B3D040 + Z3W050/51
or
modem box B3D021
