Siemens Cerberus CS1140 Commissioning

e1249d1
10
Fire & Security Products
Siemens Building Technologies Group
01.1999

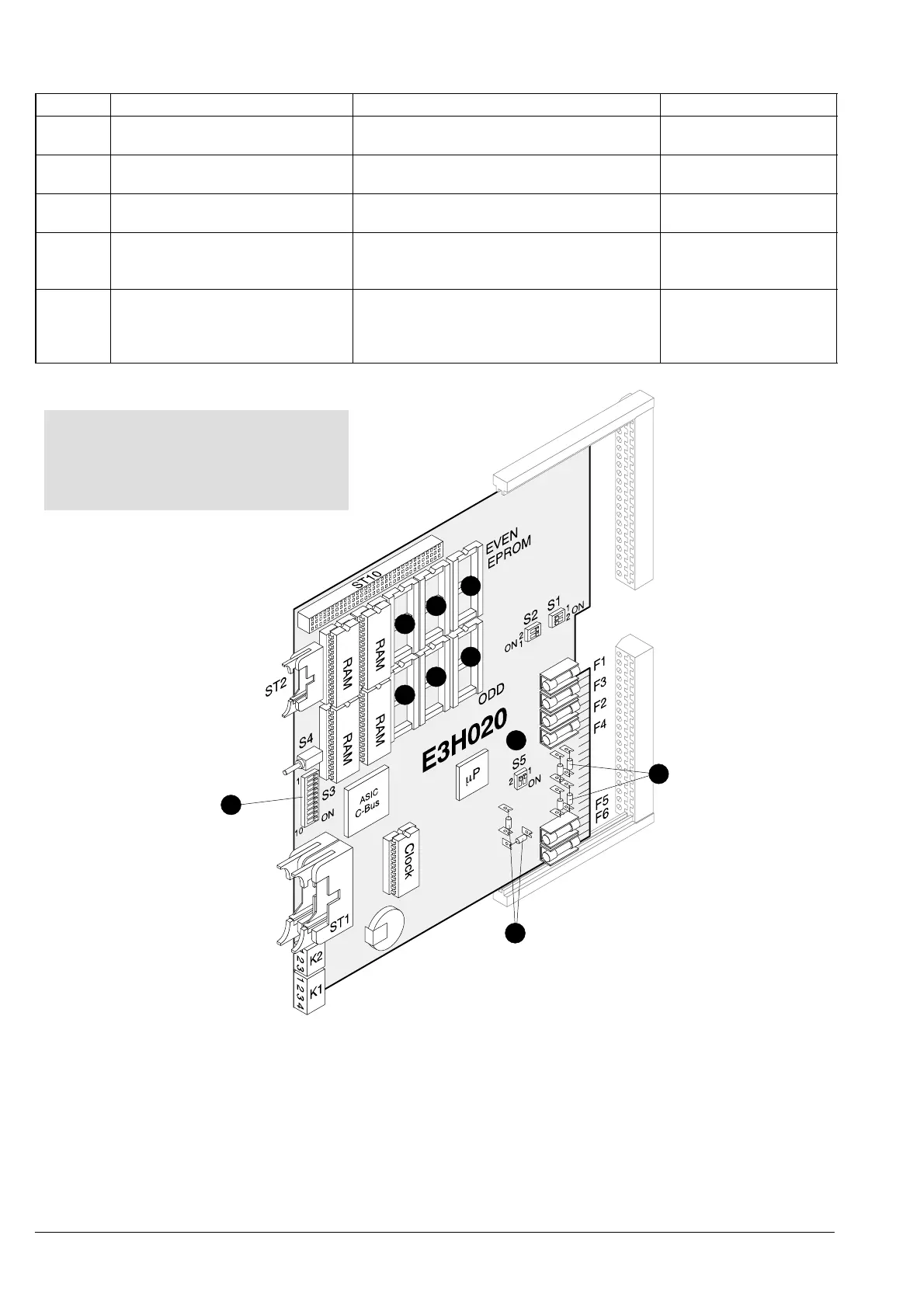

3.4.7 C-Bus gateway E3H020
Pos. Component Preparation Default
1 RAM modules (4x 512kx8)
or (8x 256kx8)
Inserted at factory (from
Index ’FA’)
2 EPROMs (2x 512kx8)
EPROM set CKQ...
insert
(note ODD and EVEN positions)
not used
3 DIL switch S3
C-Bus address
Set according to system documentation Address 16
No E3C010
4 DIL switch S5
Select interface path
Set according to system documentation
 See also hardware description
(document e1260)
Both set to ”OFF”
5 Resistors R... (6 pcs)
C-Bus impedance
Replace with other resistors if necessary
(according to system documentation)
 See also hardware description
(document e1260)
For 110 Ω impedance
X2
X1
3
1
1
1
1
2
2
4
5
5
Take precautions against voltage
surges when inserting EPROM modules!
Make sure modules are pushed fully
home in their slots!
