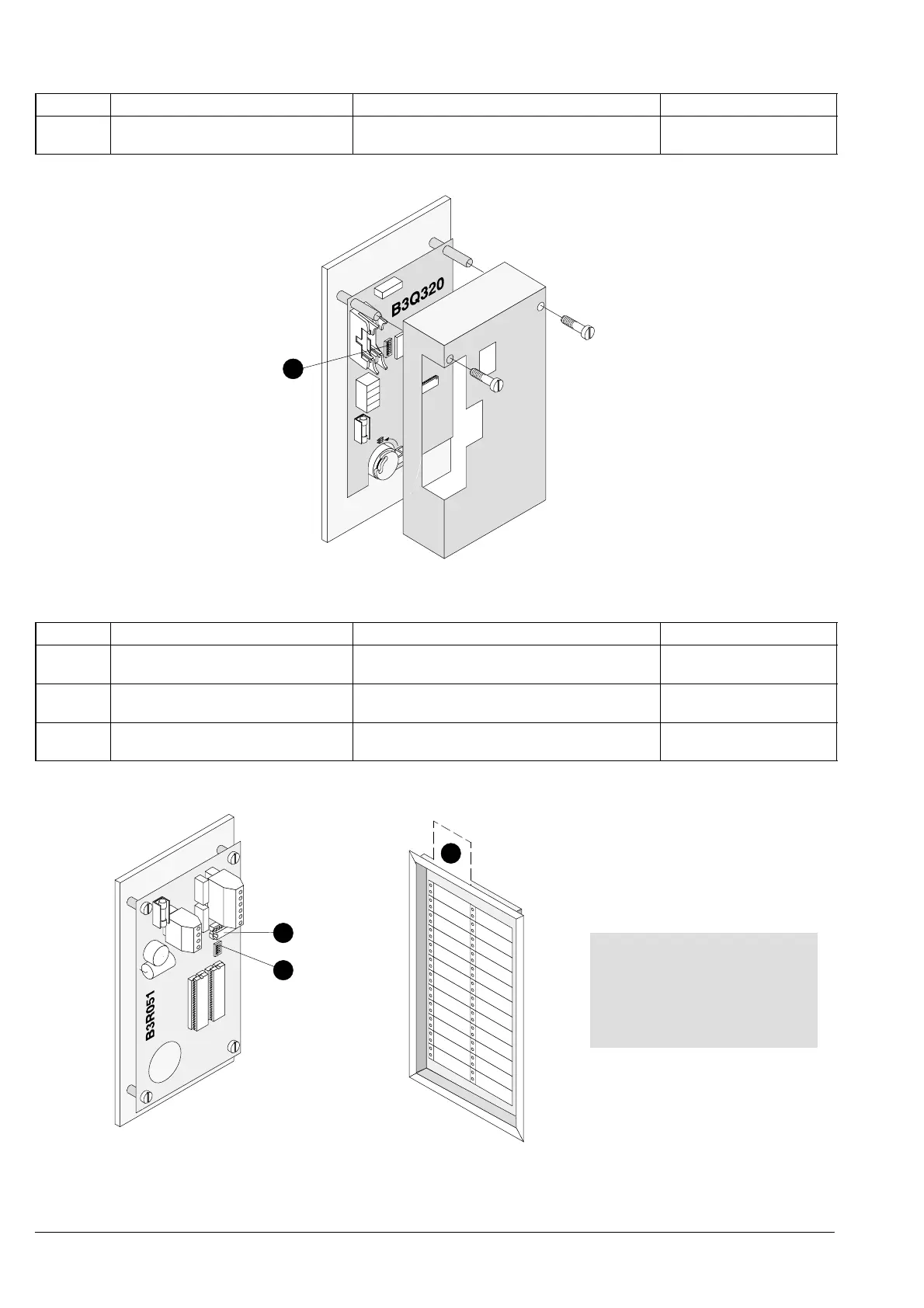

3.4.22 Fire department control panel B3Q320
Pos. Component Preparation Default
1 DIL switch S3
I-Bus address
Set as per system documentation address 0
Afterwards install B3Q320 and connect up databus and supply cables
2
1
3.4.23 Parallel display panel B3R051 (supersedes B3R050)
Pos. Component Preparation Default
1 Resistor network module Remove (on all B3R051 modules except
one)
Installed
2 DIL switch S3
Databus address
Set as per system documentation Address 0 (Test)
3 Labels Label as per user data and
insert labels
Labels are blank
3
Note:
On B3R050 the device ad-
dress is determined by the
wiring order
2
1
Afterwards fit B3R051 and connect up databus and supply cables
