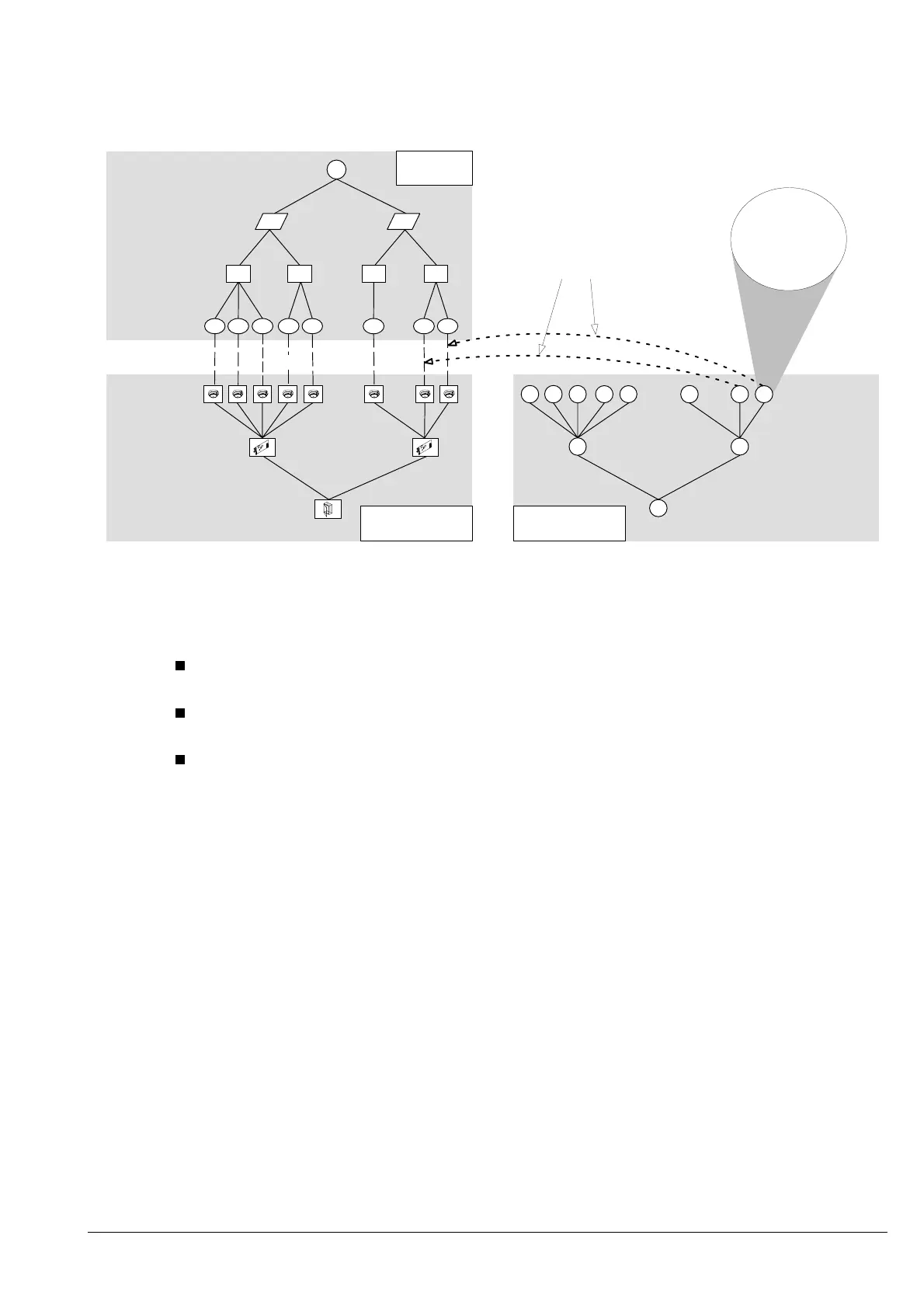

The CC/CI11 station and all function units present are automatically localized provided
that the bus addresses, models and line numbers (AnalogPLUS line modules only) pro-
grammed in the physical structure match the actual settings.
Station
Function units (in-
teractive)
Devices (in-
teractive)
Elements
Zones
Sections
Area
System configuration
(with all parameters)
Physical
structure
Logical
structure
Station
Function units
Devices
Localization
structure
I-Bus 1
I-Bus 2
I-Bus 2I-Bus 1
C-Bus 1
C-Bus 1
Allocations
Location data
– Device type
– Location index
– ID numbers
– Bus address
Links
Upload location data (CC11/CI11  SWE11) ( page 94)
Representation on SWE11 ( page 98)
Requirements for allocation ( page 100)
4.5.2 Automatic allocation of devices using the function ’Auto link’
Principle
With the manual procedure each device of the localization structure is individually allo-
cated using the commissioning list / ground plan for the corresponding element of the log-
ical structure. The function Auto link simplifies the allocation procedure by automatically
linking the localization data with the localization indexes assigned to the logical structure.
The localization indexes are in turn either allocated by reading in the SmartHandy data
(for description see document 1689) or – as adopted in the following sections – by
manual transfer of the localization indexes from the commissioning list / ground plan.
This is done by means of Loc.  Set loc. index.
