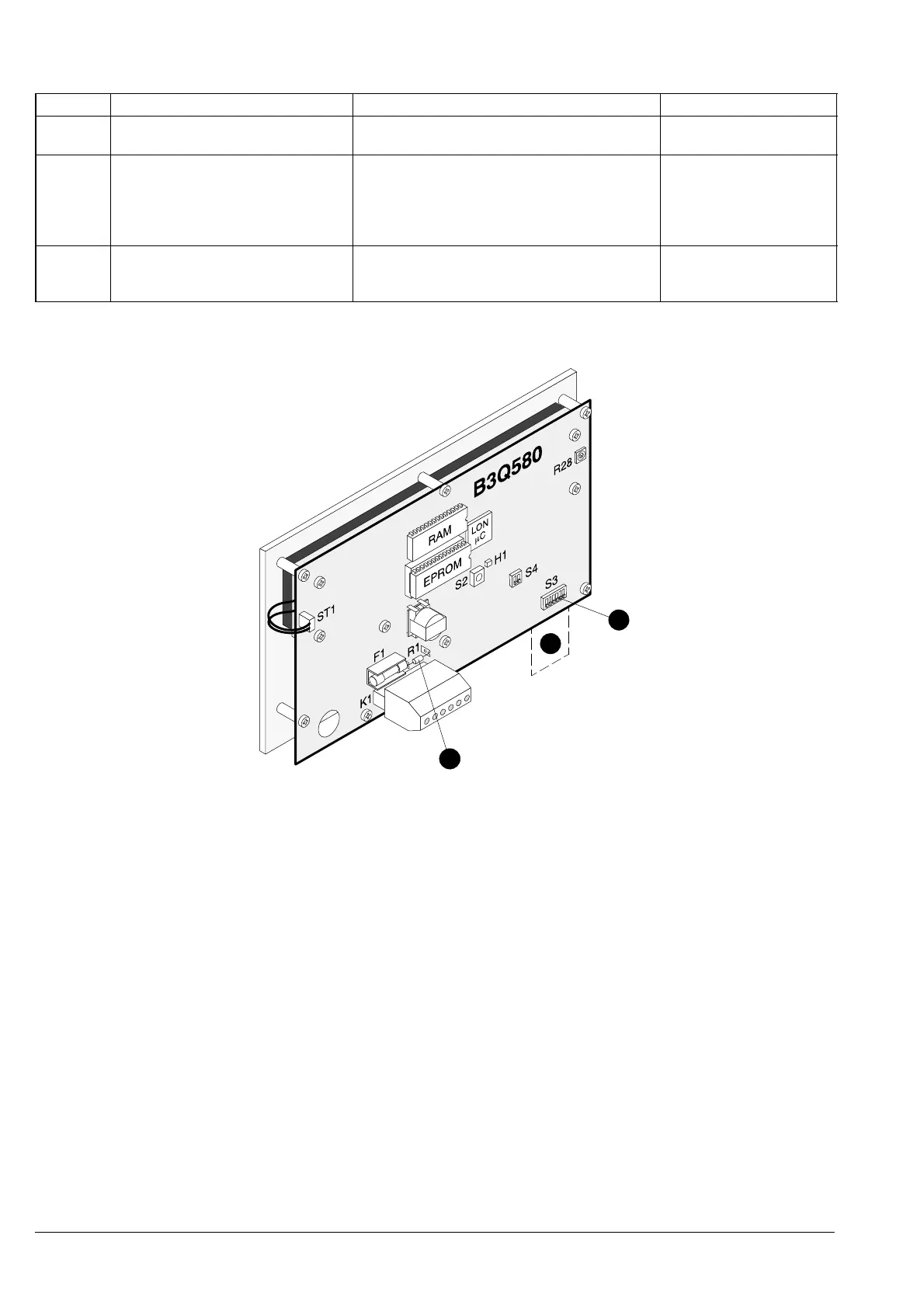

3.4.20 Text display terminal B3Q580
Pos. Component Preparation Default
1 DIL switch S3
LON-Bus address
Set as per system documentation address 0
2 Resistor R1
LON-Bus termination (EOL)
R1 must be removed if B3Q580 is not the
last device on the LON-Bus (when wired as
single feeder)
 See also hardware description
(document e1260)
100W
3 Labels
Included in Z5B....
insert Supplied/ordered sepa-
rately (not available in
all countries)
Afterwards install B3Q580 and connect up LON-Bus and supply cable
