Supplementary information
16.2 Supplementary information on diagnostics of CPU 410-5H as PROFIBUS DP master
CPU 410-5H Process Automation/CPU 410 SMART
System Manual, 10/2013, A5E32631667-AA
215
Evaluating diagnostics data in the user program

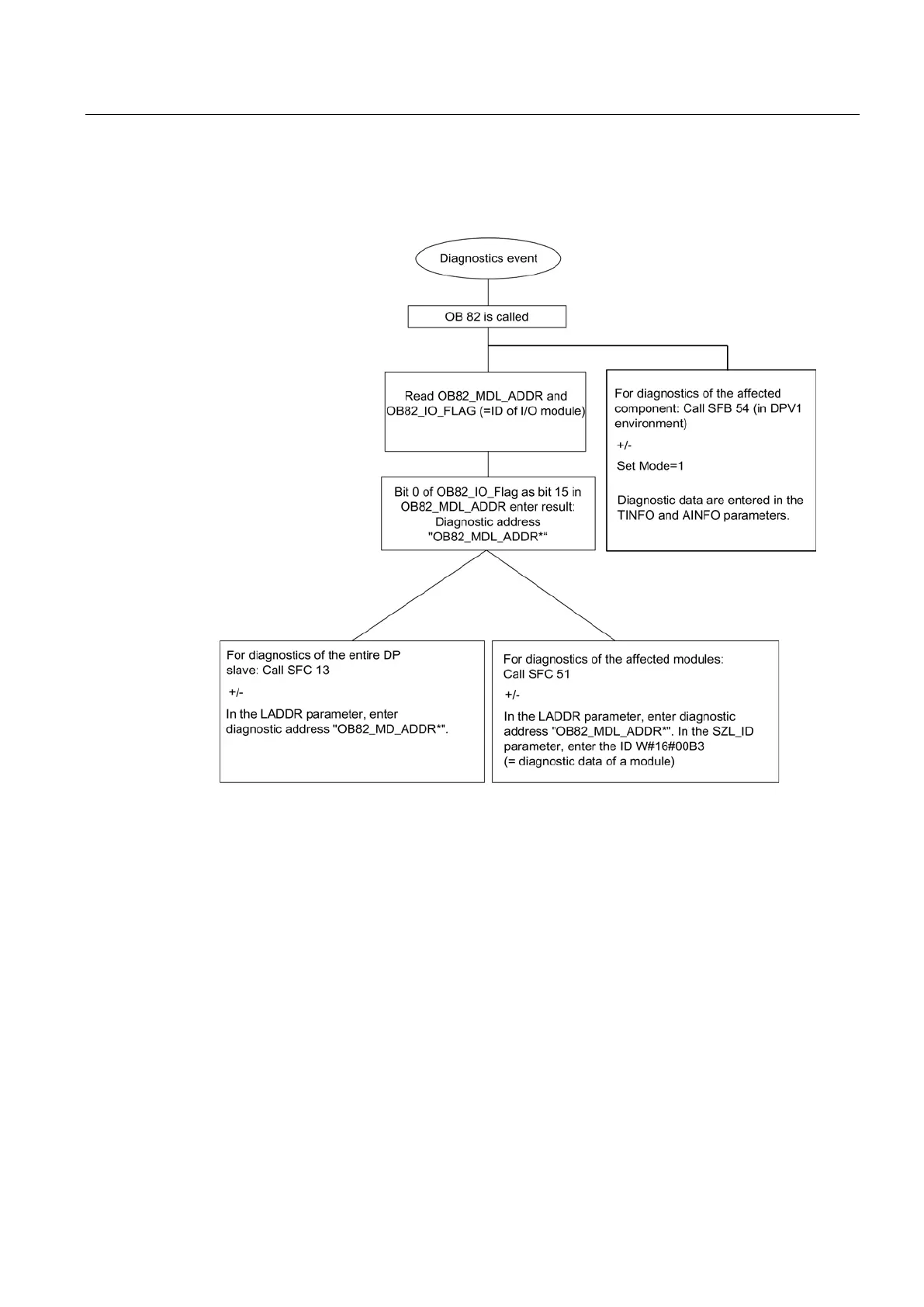

The figure below shows how to evaluate the diagnostics data in the user program.
Figure 16-1 Diagnostics with CPU 410
