Connection examples for redundant I/Os
C.5 SM 321; DI 16 x DC 24 V, 6ES7 321–1BH02–0AA0
CPU 410-5H Process Automation/CPU 410 SMART
System Manual, 10/2013, A5E32631667-AA
311
SM 321; DI 16 x DC 24 V, 6ES7 321–1BH02–0AA0
The diagram below shows the connection of two redundant encoders to two SM 321; DI 16 x
DC 24 V. The encoders are connected to channel 0.

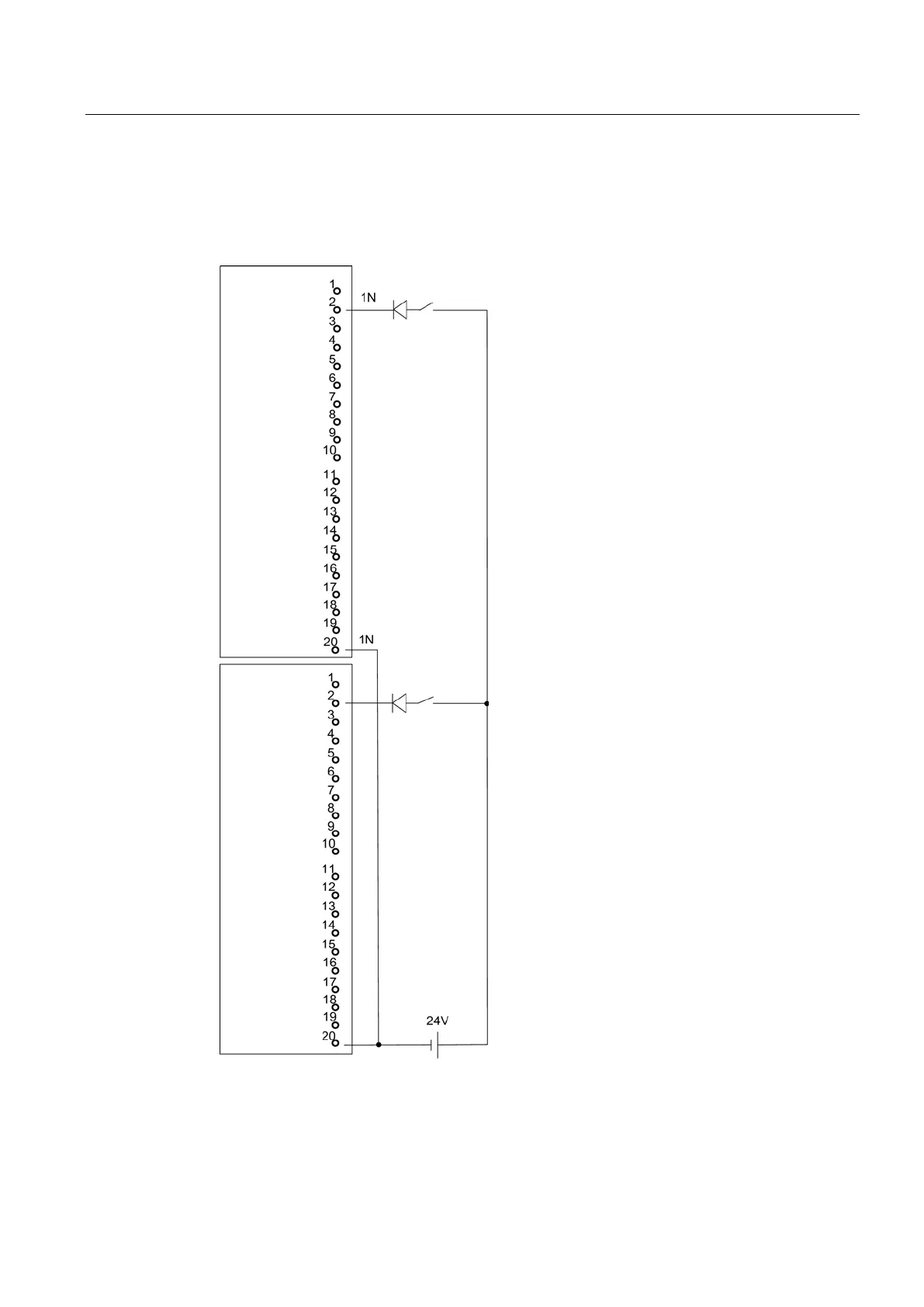

Figure C-3 Example of an interconnection with SM 321; DI 16 x DC 24 V
