Connection examples for redundant I/Os
C.25 SM 332; AO 8 x 12 Bit, 6ES7 332–5HF00–0AB0
CPU 410-5H Process Automation/CPU 410 SMART
System Manual, 10/2013, A5E32631667-AA
331
C.25
SM 332; AO 8 x 12 Bit, 6ES7 332–5HF00–0AB0

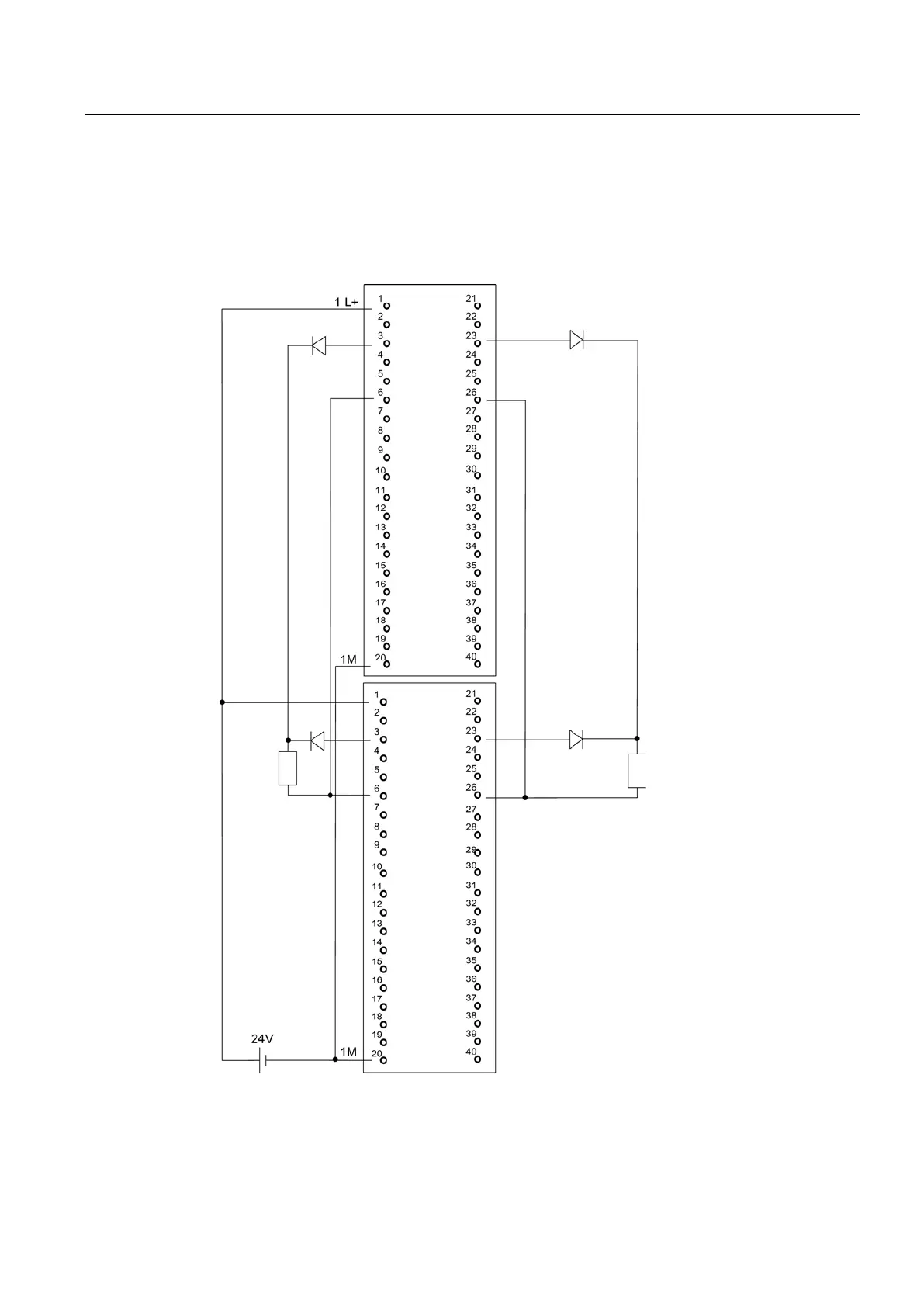

The diagram below shows the connection of two actuators to two redundant SM 332; AO 8 x
12 Bit. The actuators are connected to channels 0 and 4. Suitable diodes are, for example,
those of the series 1N4003 ... 1N4007, or any other diode with U
_r
>=200 V and I_
F
>= 1 A
Figure C-23 Example of an interconnection with SM 332, AO 8 x 12 Bit
