Connection examples for redundant I/Os
C.32 SM 331; AI 8 x 16 Bit; 6ES7 331–7NF10–0AB0
CPU 410-5H Process Automation/CPU 410 SMART
338 System Manual, 10/2013, A5E32631667-AA
C.32
SM 331; AI 8 x 16 Bit; 6ES7 331–7NF10–0AB0

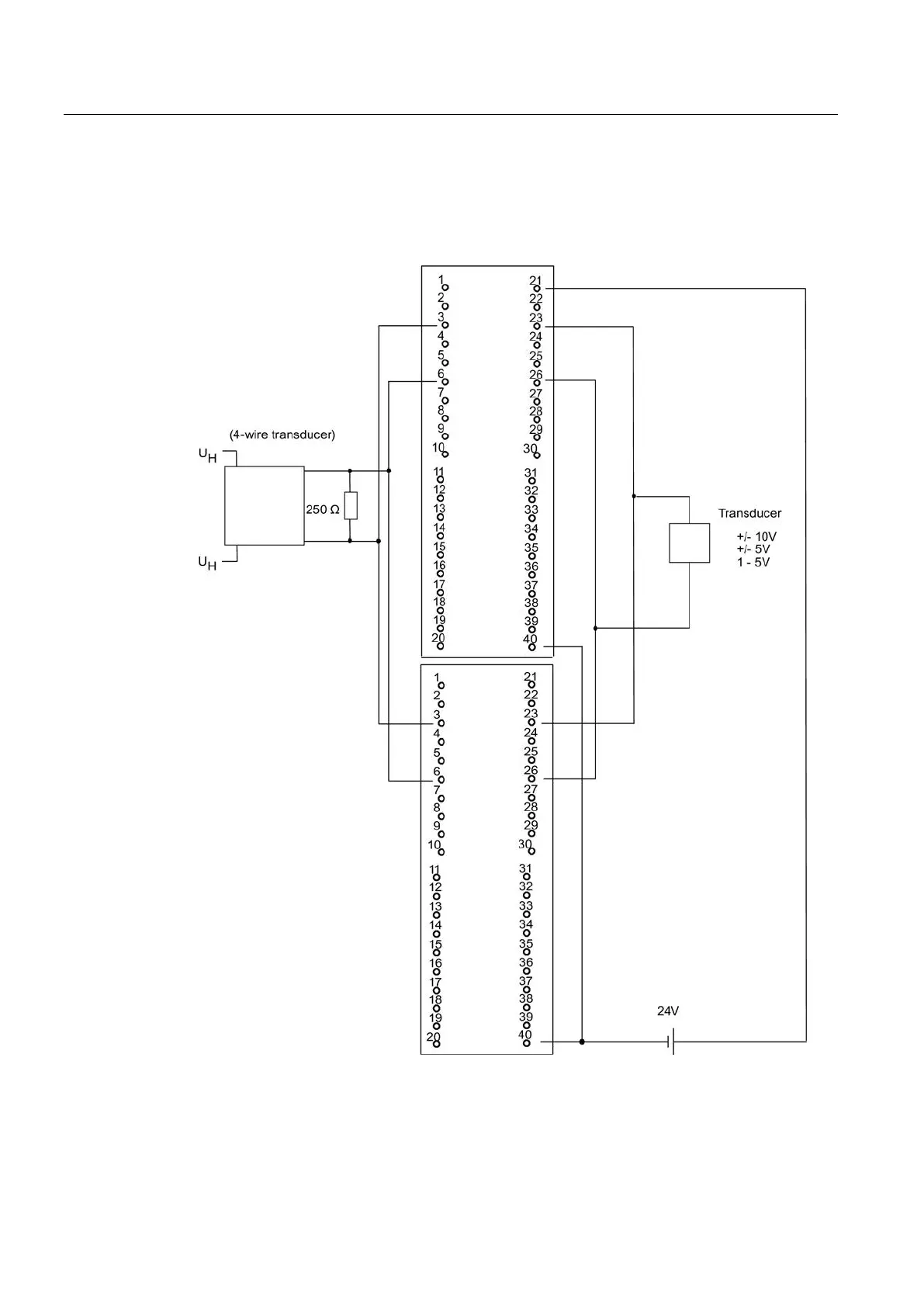

The figure below shows the connection of a transmitter to two redundant SM 331; AI 8 x 16
Bit. The transmitter is connected to channel 0 and 3 respectively.
Figure C-30 Example of an interconnection with SM 331; AI 8 x 16 Bit
