Connection examples for redundant I/Os
C.23 SM 322; DO 8 x DC 24 V/0.5 A, 6ES7 322–8BF00–0AB0
CPU 410-5H Process Automation/CPU 410 SMART
System Manual, 10/2013, A5E32631667-AA
329
C.23
SM 322; DO 8 x DC 24 V/0.5 A, 6ES7 322–8BF00–0AB0

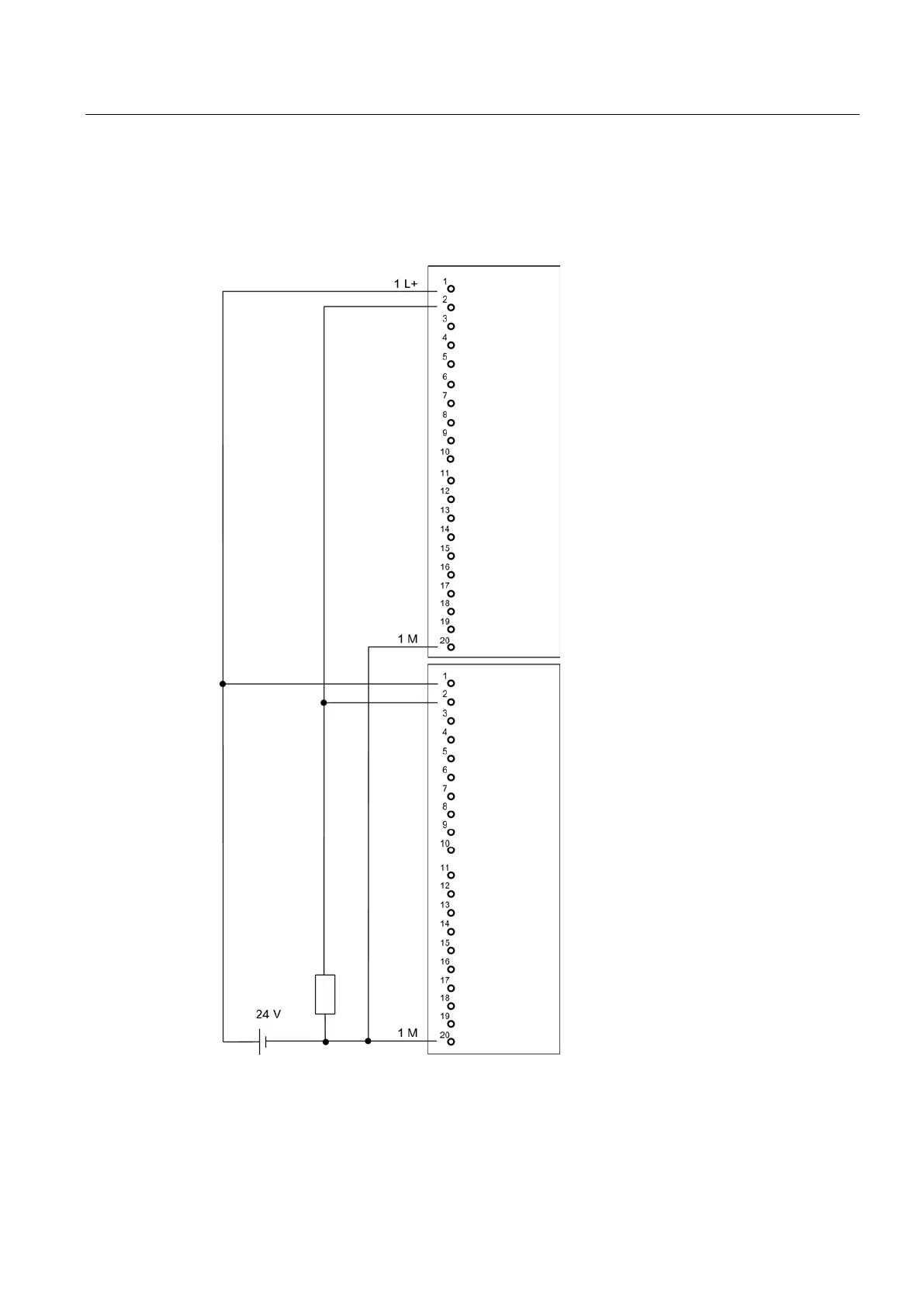

The diagram below shows the connection of an actuator to two redundant
SM 322; DO 8 x DC 24 V/0.5 A. The actuator is connected to channel 0.
Figure C-21 Example of an interconnection with SM 322; DO 8 x DC 24 V/0.5 A
