Siemens CPU 410-5H Process Automation User Manual

Connection examples for redundant I/Os
C.15 SM 421; DI 16 x DC 24 V, 6ES7 421–7BH01–0AB0
CPU 410-5H Process Automation/CPU 410 SMART
System Manual, 10/2013, A5E32631667-AA
321
C.15
SM 421; DI 16 x DC 24 V, 6ES7 421–7BH01–0AB0

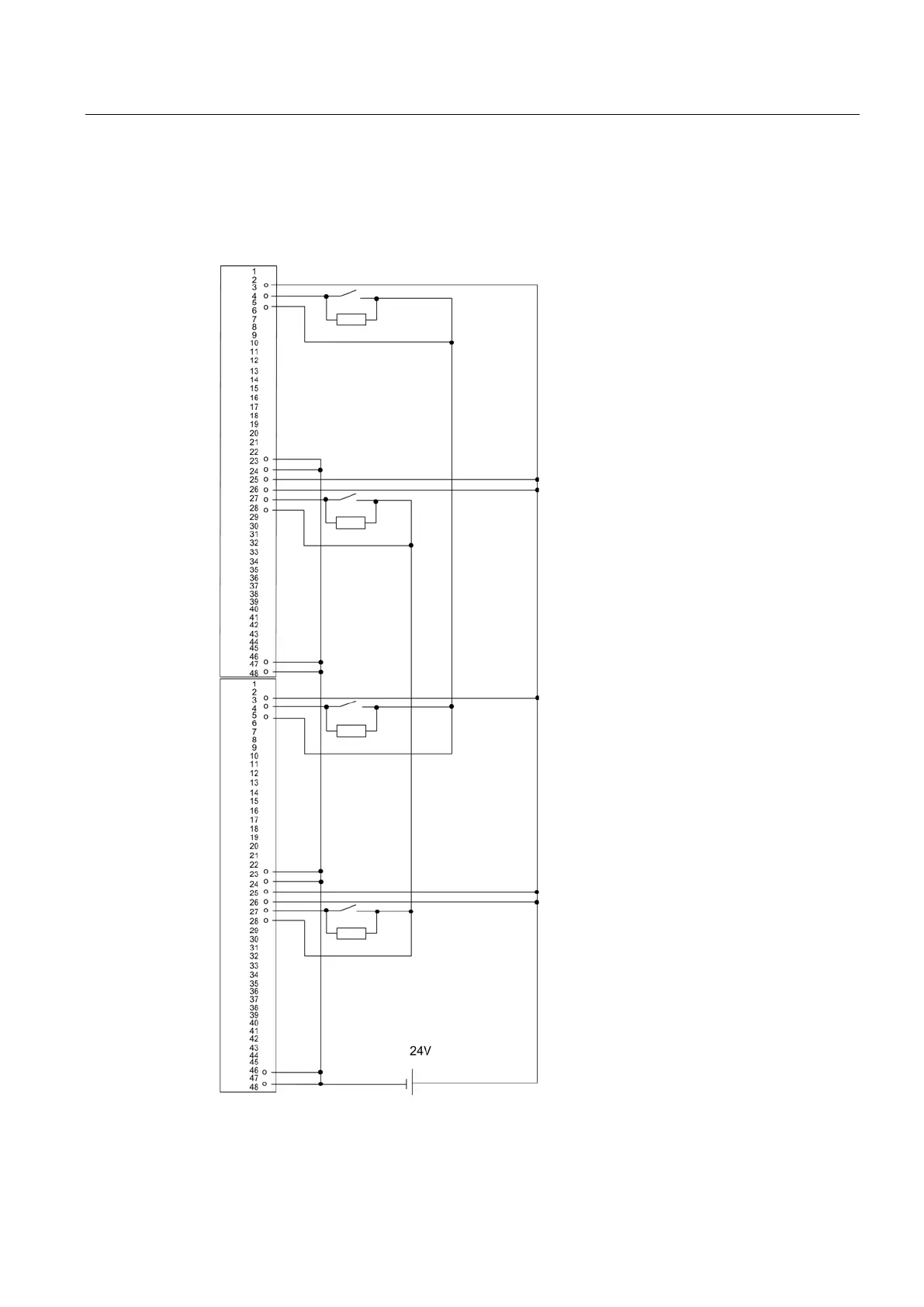

The diagram below shows the connection of two redundant encoders pairs to two
SM 421; D1 16 x 24 V. The encoders are connected to channel 0 and 8.
Figure C-13 Example of an interconnection with SM 421; DI 16 x 24 V
