Connection examples for redundant I/Os
C.36 SM332; AO 8 x 0/4...20mA HART, 6ES7 332-8TF01-0AB0
CPU 410-5H Process Automation/CPU 410 SMART
System Manual, 10/2013, A5E32631667-AA
343
C.36
SM332; AO 8 x 0/4...20mA HART, 6ES7 332-8TF01-0AB0
The diagram below shows the connection of an actuator to two SM 332; AO 8 x 0/4...20 mA
HART.

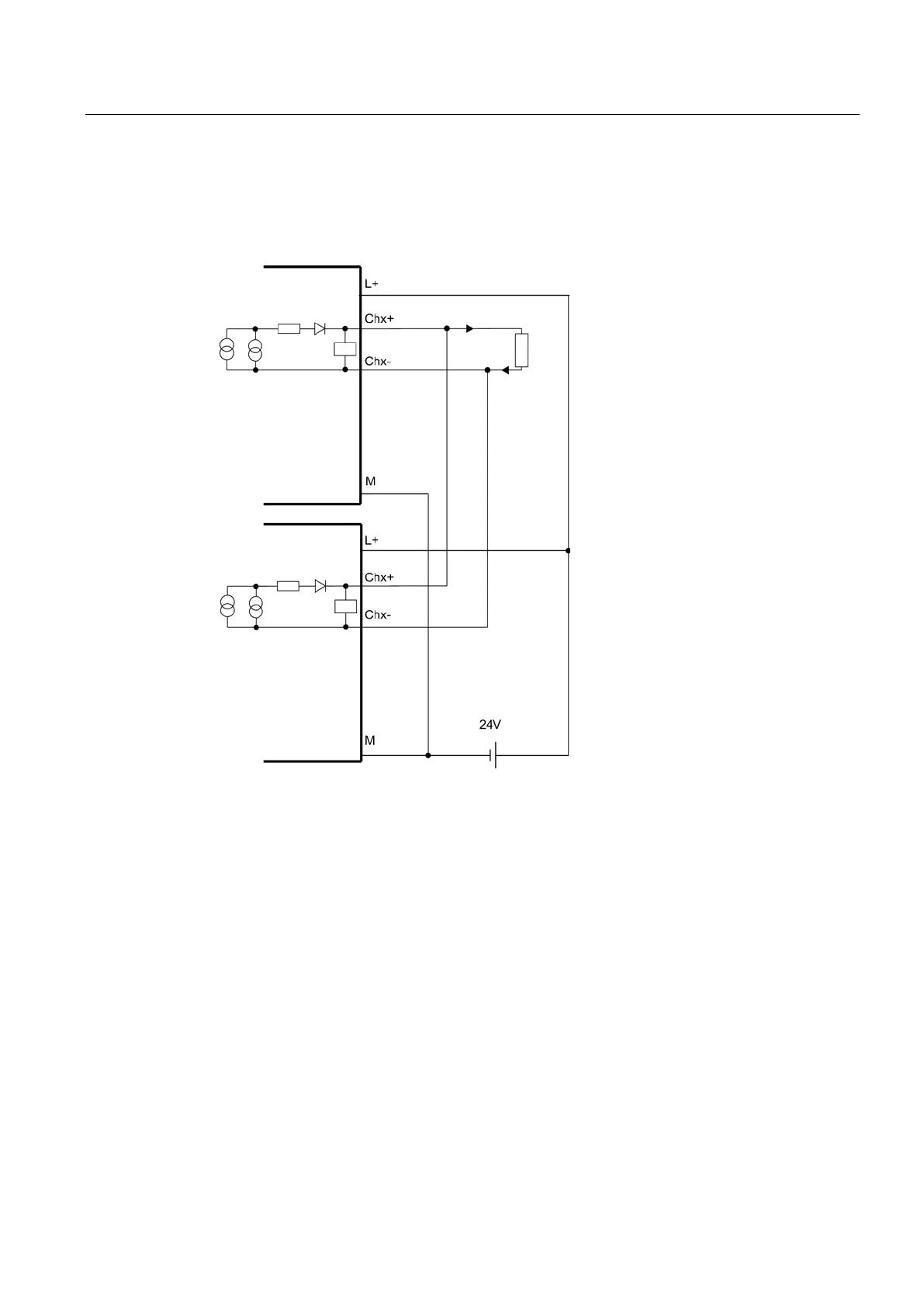

Figure C-35 Interconnection example 3 SM 332; AO 8 x 0/4...20mA HART
