I/O configuration variants
4.5 Using single-channel switched I/O
CPU 410-5H Process Automation/CPU 410 SMART
58 System Manual, 10/2013, A5E32631667-AA
Single-channel switched I/O configuration at the PROFIBUS DP interface
The system supports single-channel switched I/O configurations containing an ET 200M
distributed I/O module with active backplane bus and a redundant PROFIBUS DP slave
interface module and with the ET 200iSP distributed I/O module.

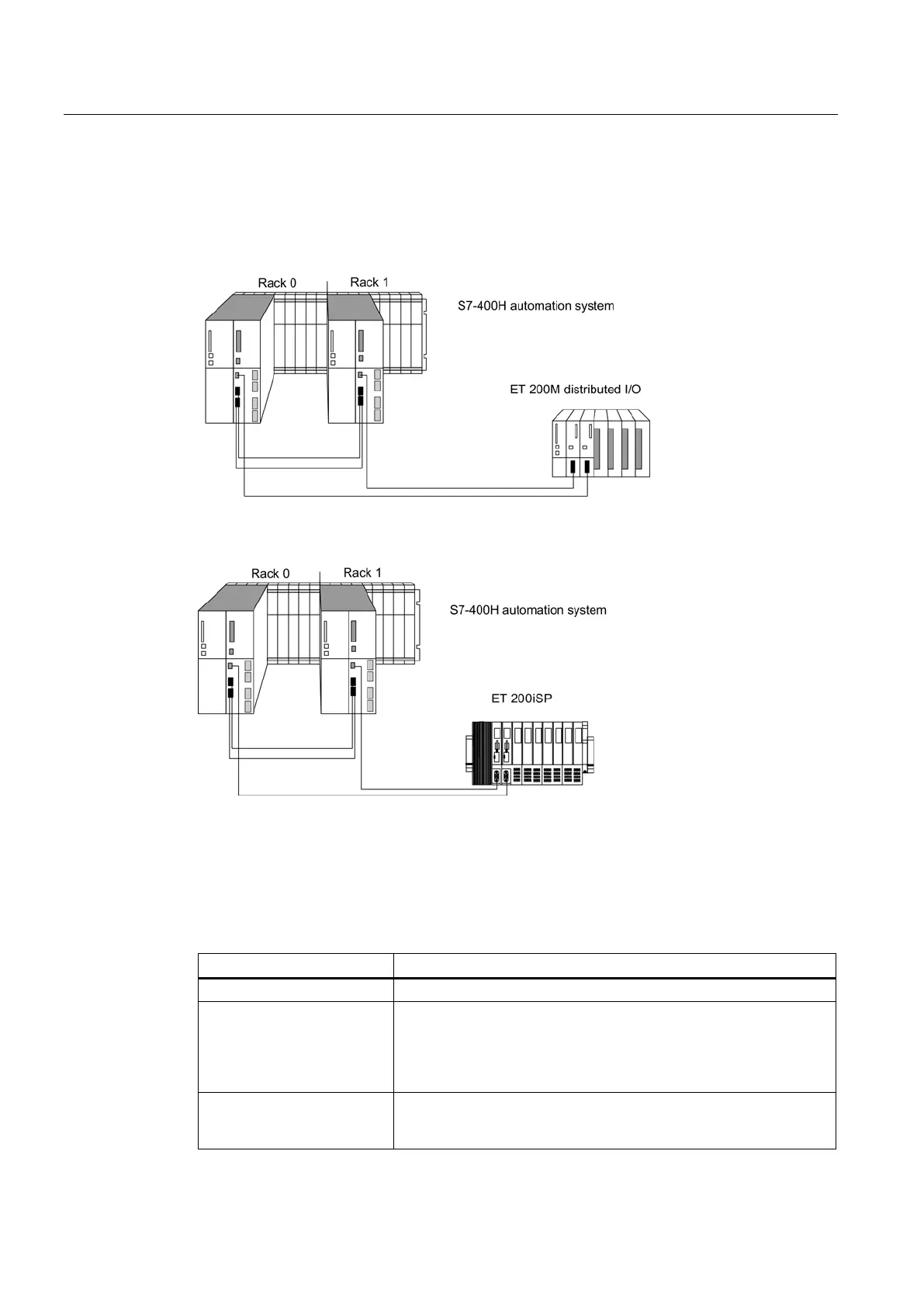

Figure 4-9 Single-channel switched distributed I/O configuration at the PROFIBUS DP interface
You can use the following interface modules for the I/O configuration at the PROFIBUS DP
interface:
Table 4- 2 Interface modules for use of single-channel switched I/O configuration at the PROFIBUS
DP interface
Interface module
Order number
IM 152 for ET 200iSP
6ES7152-1AA00-0AB0
IM 153–2 for ET 200M 6ES7 153–2BA82–0XB0
6ES7 153–2BA81–0XB0
6ES7 153–2BA02–0XB0
6ES7 153–2BA01–0XB0
6ES7 153–2BA00–0XB0
IM 153–2FO for ET 200M 6ES7 153–2AB02–0XB0
6ES7 153–2AB01–0XB0
6ES7 153–2AB00–0XB0
