Connection examples for redundant I/Os
C.33 AI 6xTC 16Bit iso, 6ES7331-7PE10-0AB0
CPU 410-5H Process Automation/CPU 410 SMART
System Manual, 10/2013, A5E32631667-AA
339
C.33
AI 6xTC 16Bit iso, 6ES7331-7PE10-0AB0

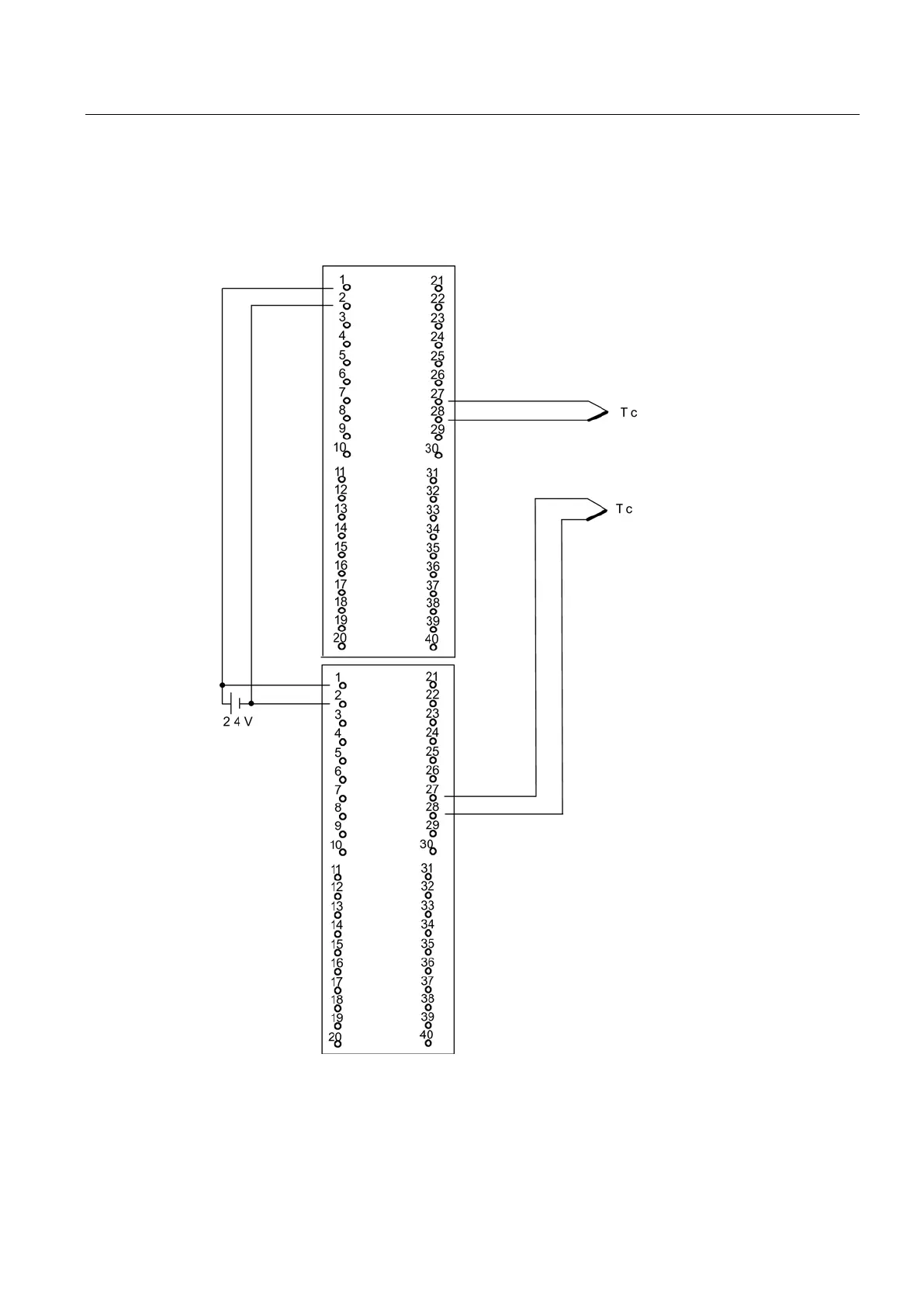

The figure below shows the connection of a thermocouple to two redundant SM 331 AI 6xTC
16Bit iso.
Figure C-31 Example of an interconnection AI 6xTC 16Bit iso
