Supplementary information
16.6 Communication services
CPU 410-5H Process Automation/CPU 410 SMART
System Manual, 10/2013, A5E32631667-AA
227
S7 routing gateways: PN - DP
Gateways between subnets are routed in a SIMATIC station that is equipped with interfaces

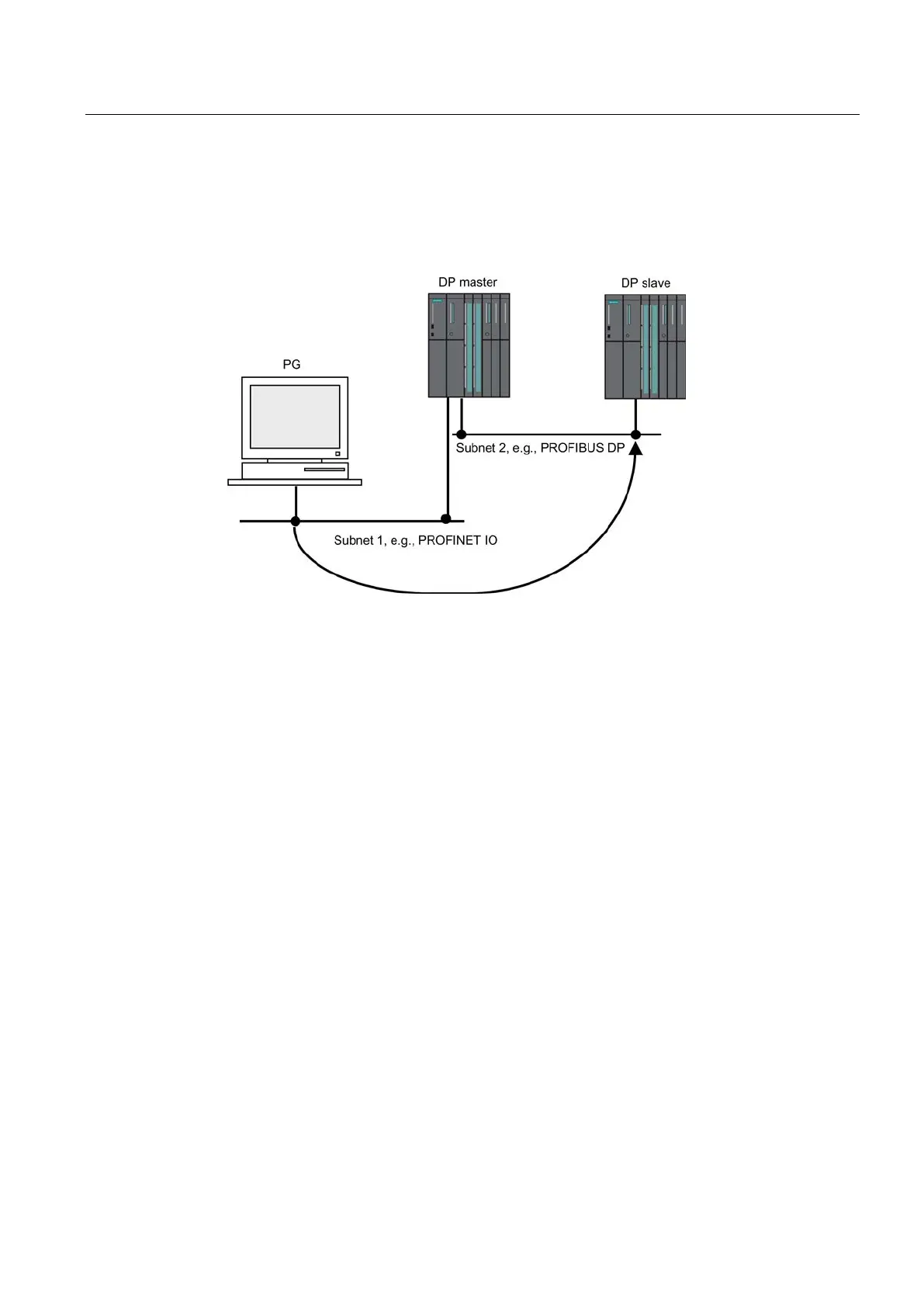

to the respective subnets. The following figure shows CPU 1 (DP master) acting as router for
subnets 1 and 2.
Figure 16-2 S7 routing
