Interrupts/diagnostic alarms
14.4 Diagnostics response
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
130 Manual, 07/2018, A5E42674880-AA
Example

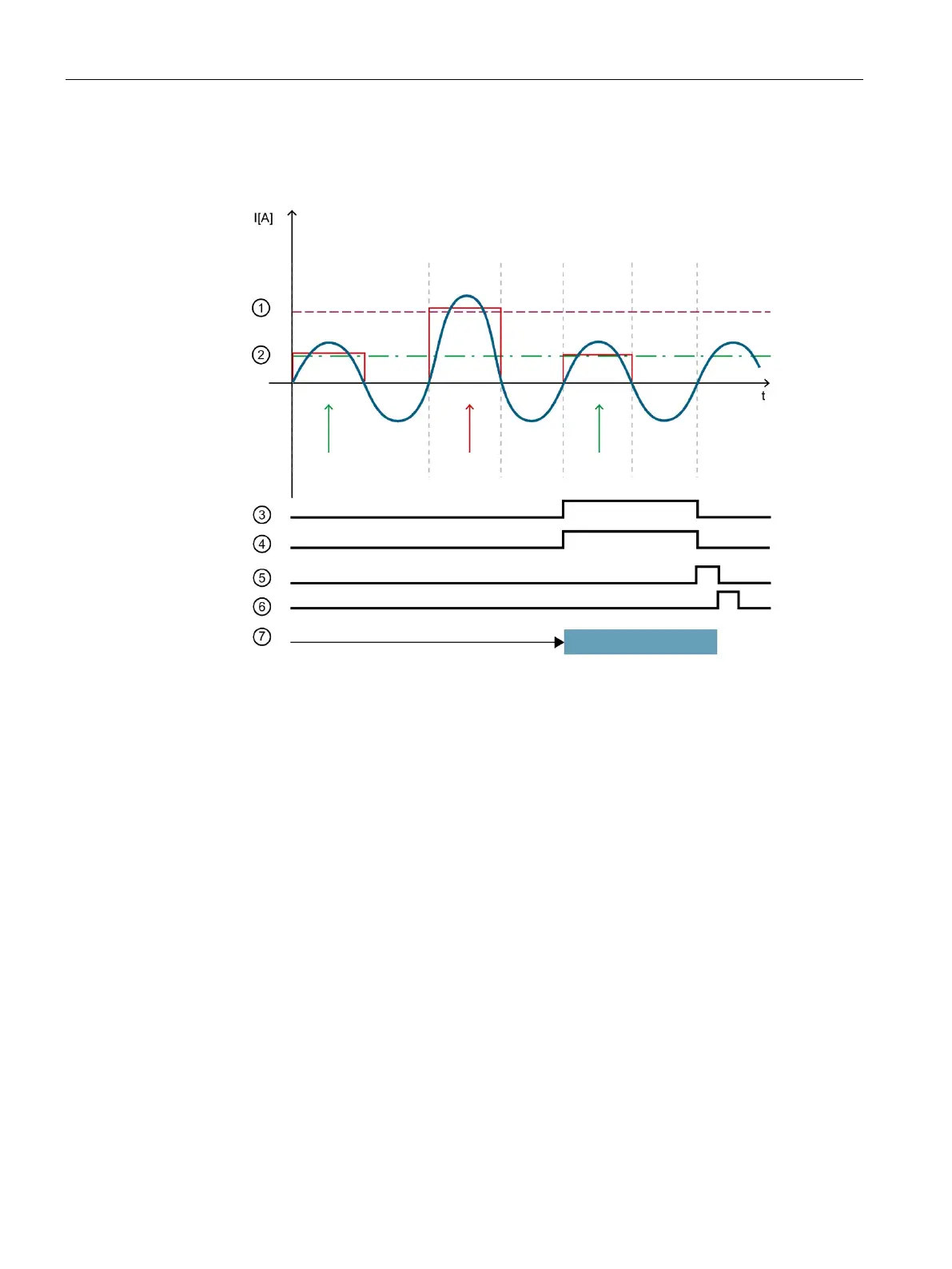

The following figure is a schematic diagram of the principle of operation:
①
Threshold overcurrent
②
Nominal current
③
Qualifier Bit 7
④
Diagnostics power quality
⑤
Status "power quality overcurrent"
⑥
Bit "Reset status "power quality""
⑦
Max. overcurrent (half-wave) value can be read
Figure 14-10 Example of principle of operation

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
