Module versions
C.1 Module version "2 I / 2 Q"
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
Manual, 07/2018, A5E42674880-AA
193
Allocation of the input user data

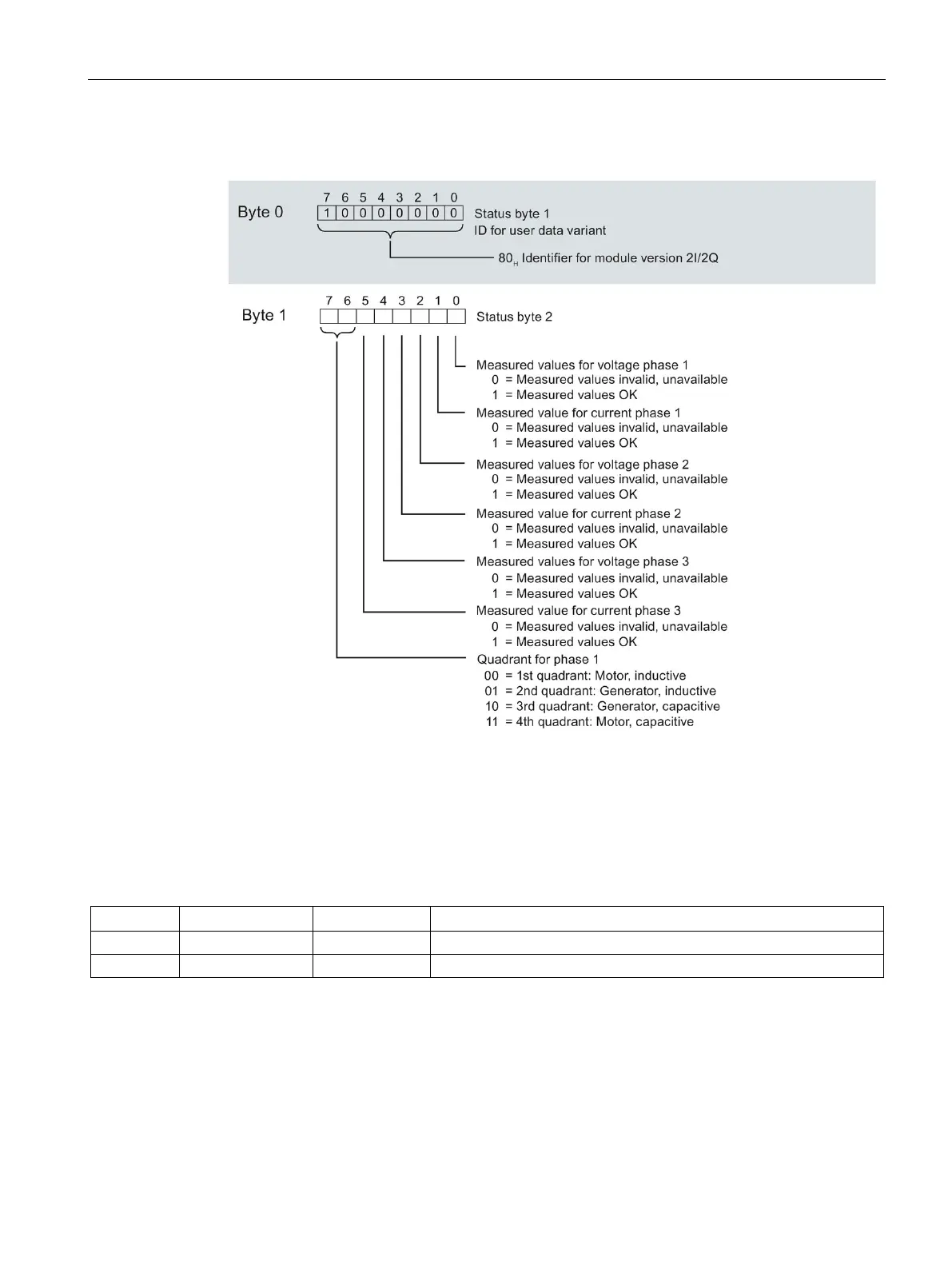

Figure C-1 Allocation of the status bytes in the input user data (2 bytes)
Structure of output user data
The structure of the output user data is fixed.
Table C- 2 Structure of output user data (2 bytes)
Byte
Validity
Designation
Comment
0
Module
Reserved
Reserved
1
Module
Control outputs
Reset of values and counters, gate
