Module versions
C.1 Module version "2 I / 2 Q"
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
194 Manual, 07/2018, A5E42674880-AA
Assignment of the output user data
Via the output user data you control for all phases
● Resetting for all minimum values, maximum values, limits, operating hours counter and
energy meters.
● The counter gates for operating hours counter and energy counters.

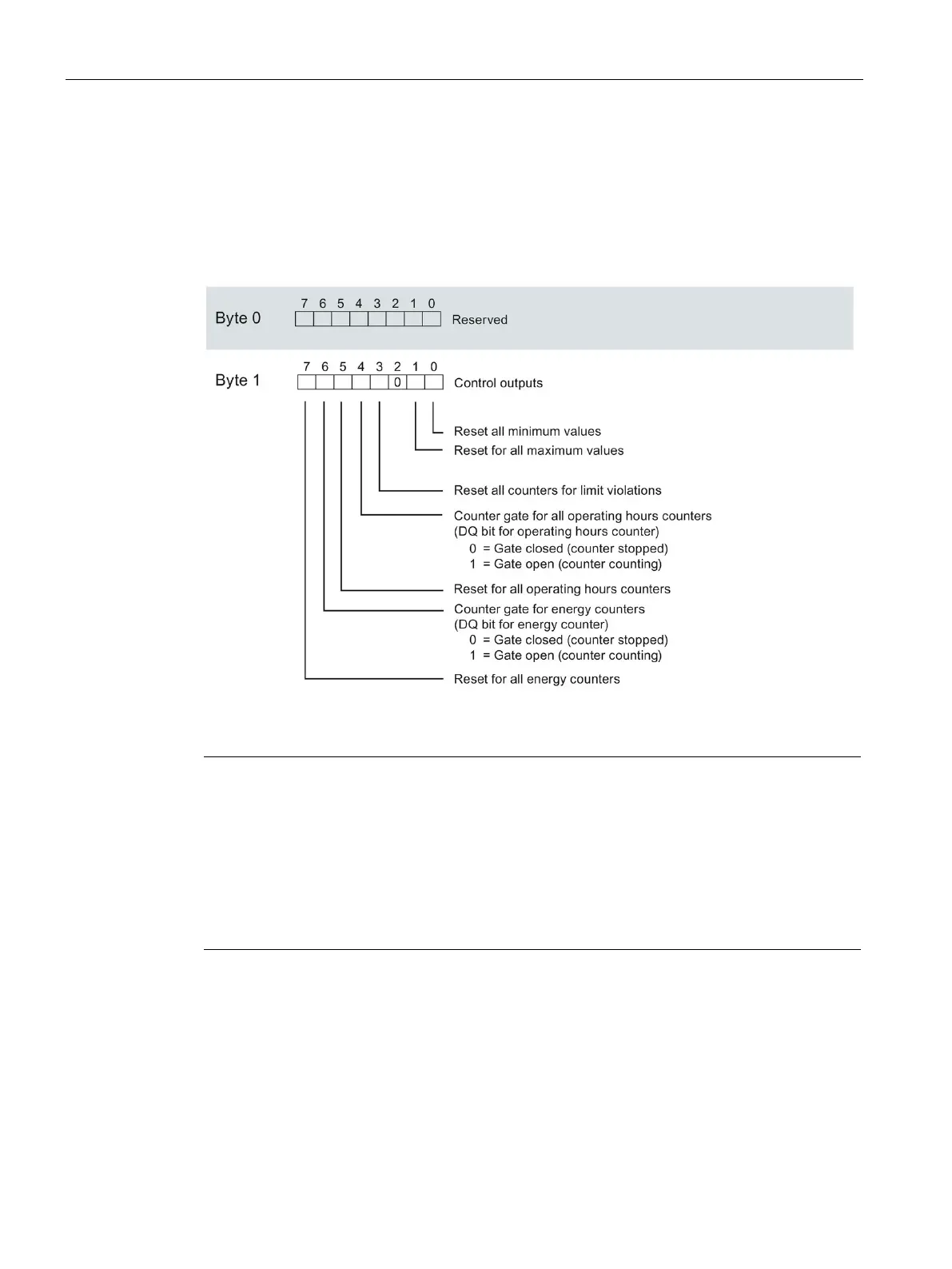

Figure C-2 Allocation of the control byte in the output user data (1 byte)
Note
For module version 2 I / 2 Q, a reset of the selected variables always acts on all
measured
values/counter levels of the three phases.
•
Reset energy counter: Acts on all active, reactive and apparent energies of all phases
•
Reset operating hours counter: Acts on the counters of Phases 1 to 3
•
Reset minimum / maximum values: Acts on the minimum and maximum value
calculations of Phases 1-3
•
Reset all counters for limit violations: Acts on all 16 limit values.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
