Module versions
C.2 Module version "32 I / 20 Q"
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
198 Manual, 07/2018, A5E42674880-AA
Control bytes for user data variant

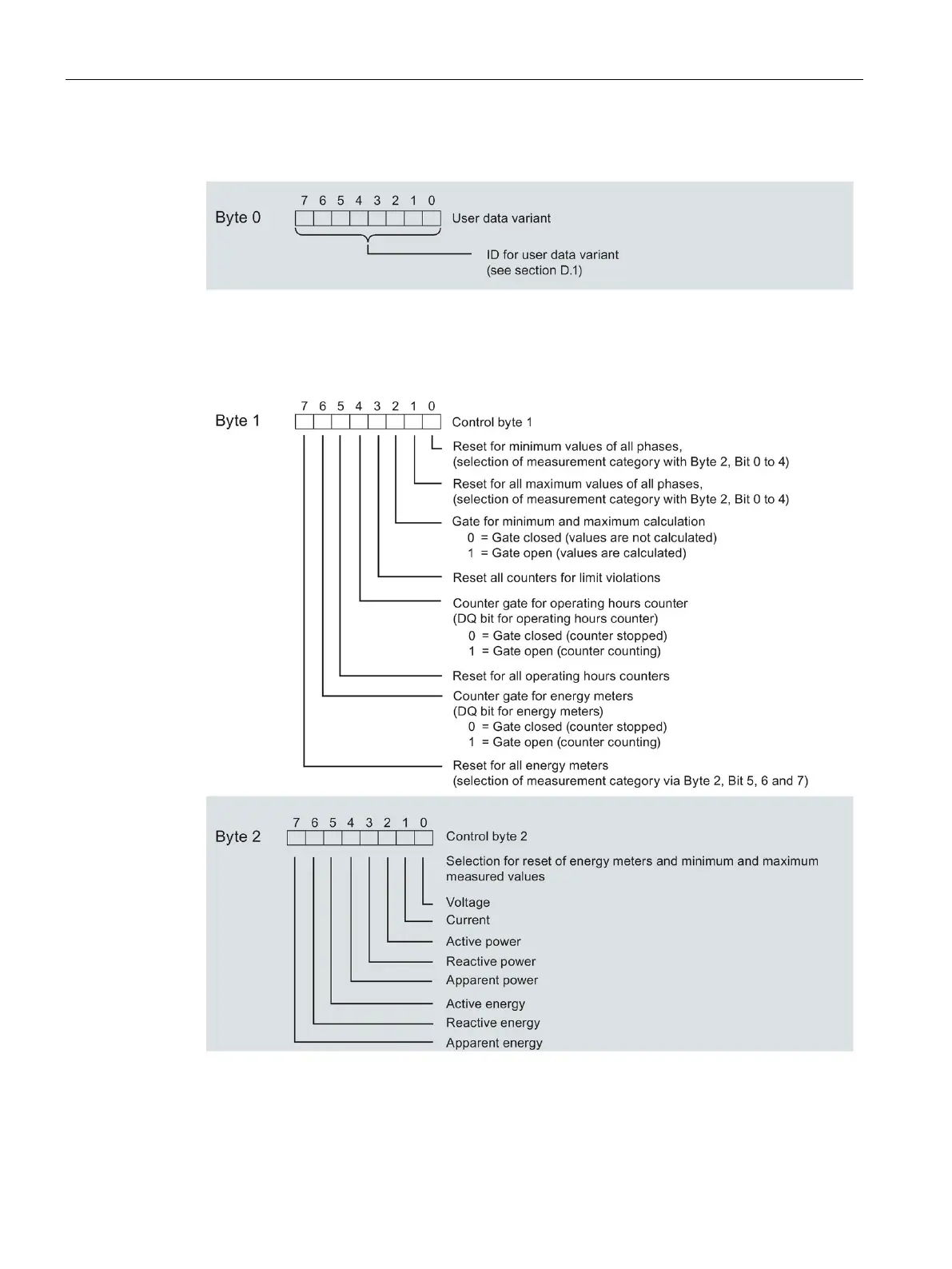

Figure C-4 Allocation of the control bytes for user data variant (Byte 0)
Control bytes for all three phases
Figure C-5 Allocation of the control bytes for all three phases (bytes 1 and 2)
