Siemens SIMATIC ET 200SP User Manual

Reading and processing measured values
6.1 Basics for reading measured values
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
Manual, 07/2018, A5E42674880-AA
43
General reset
With module versions with 20 bytes of output data you can reset some measured values and
counter levels.
An edge change of 0 -> 1 at the bit for the general reset has the following effect:
● Counters for energy, operating hours and limits start at "0" again.
● Results of the power quality analysis are deleted.
● Minimum and maximum value calculation starts again with initial values.
For the general reset, set bit 7 in byte 16 of the output user data. (Page 195)

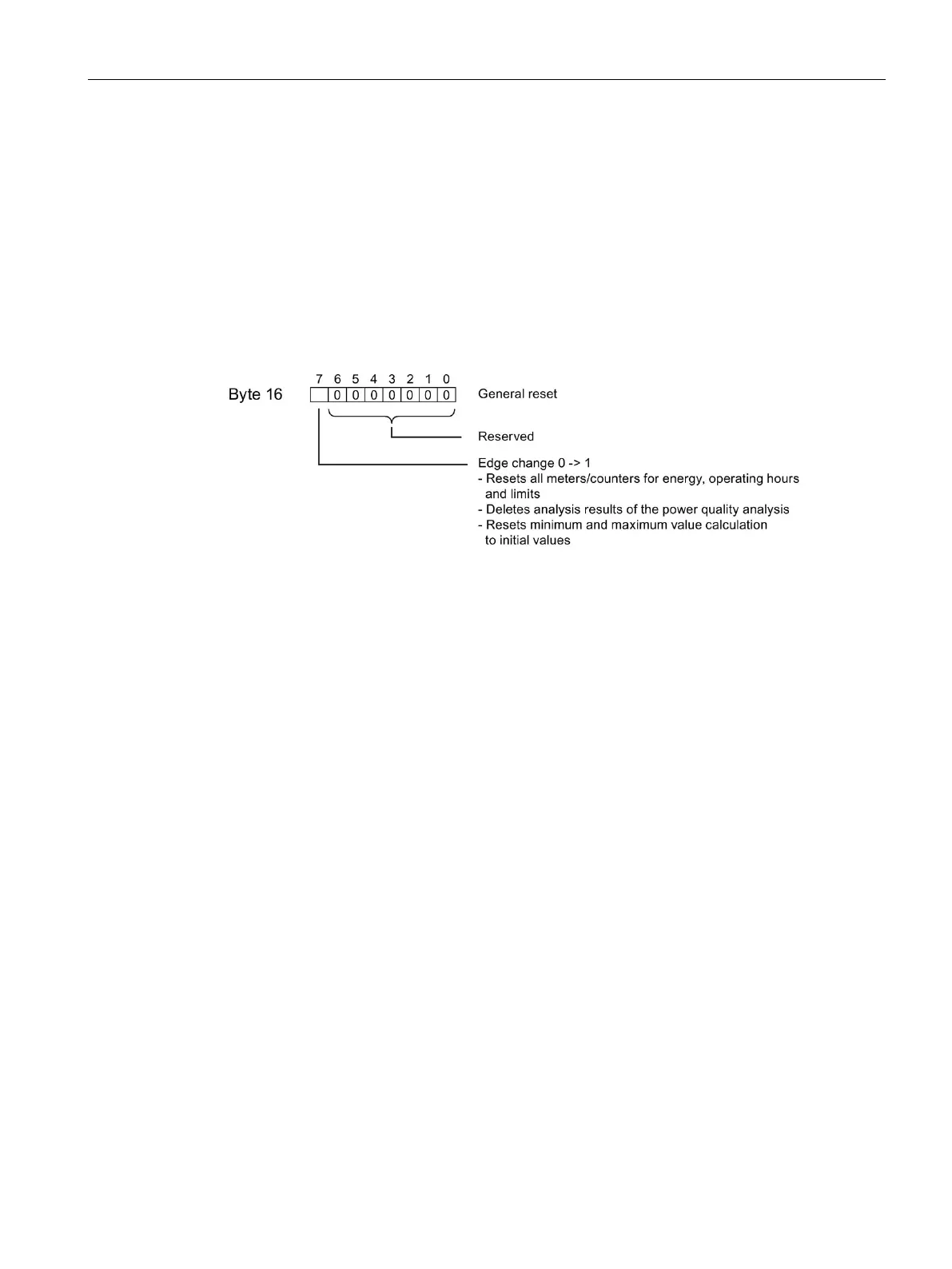

Figure 6-1 Control byte 16 in the output user data for general reset
Substitute value behavior
The substitute values for input values of the AI Energy Meter HF amount to "0".
See also
Reading measured values from user data cyclically (Page 50)

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
