Energy counters
7.3 Starting and and stopping energy meters
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
Manual, 07/2018, A5E42674880-AA
65
Counting without gate
Requirement
The current value is higher than the configured "Low limit for measuring current in relation to
nominal value current [0.1%]".
Deactivate the parameter "Enable energy meter gate" in the parameter assignment of the
module.
The module starts counting as soon as the module is started. The counter continues to
count.

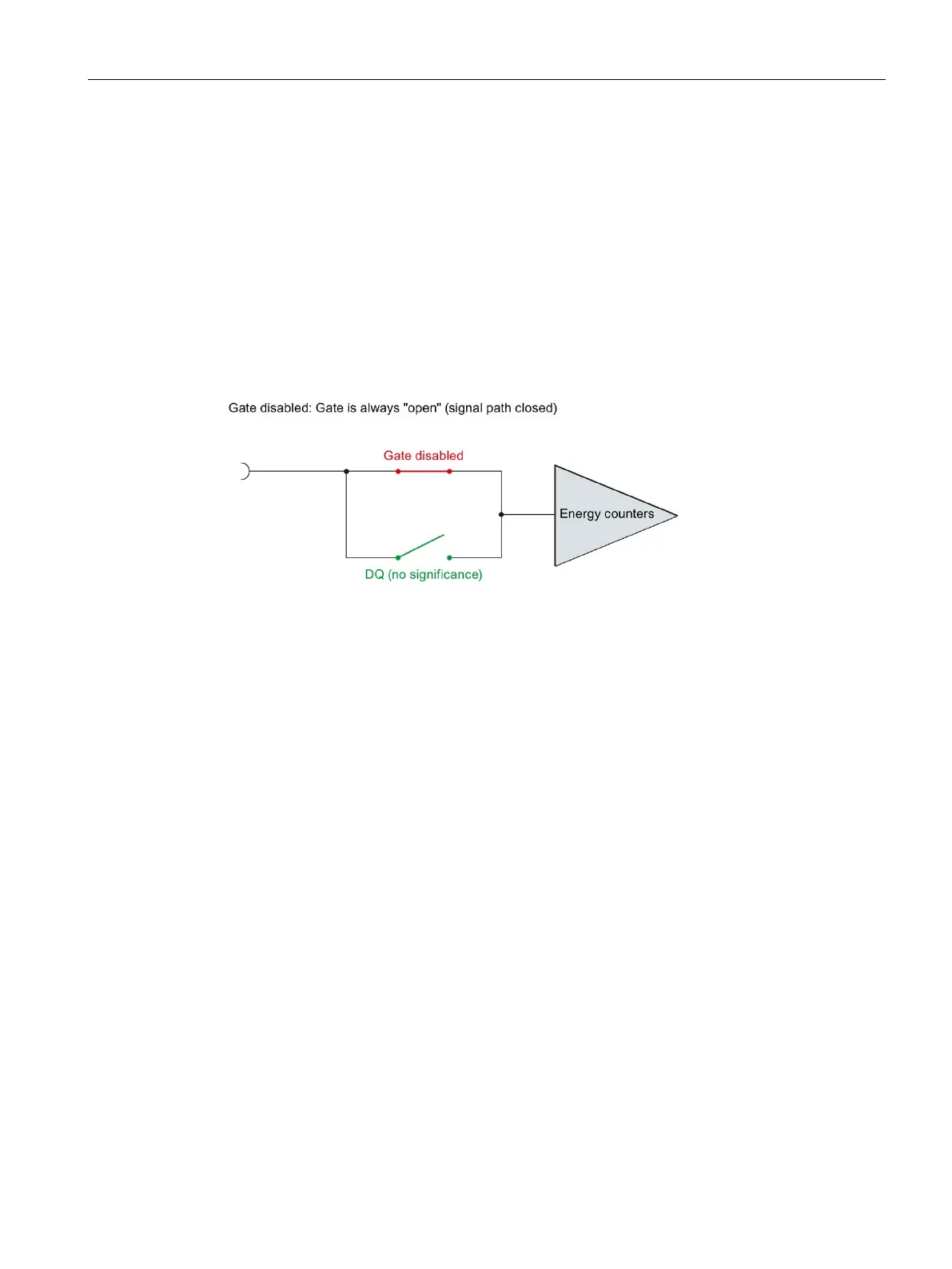

Figure 7-9 Gate disabled
