16.4 BIOS-Setup
SIMATIC HMI IPC677C
Operating Instructions, 04/2013, A5E02722710-04
227
Advanced menu > "Peripheral Configuration"

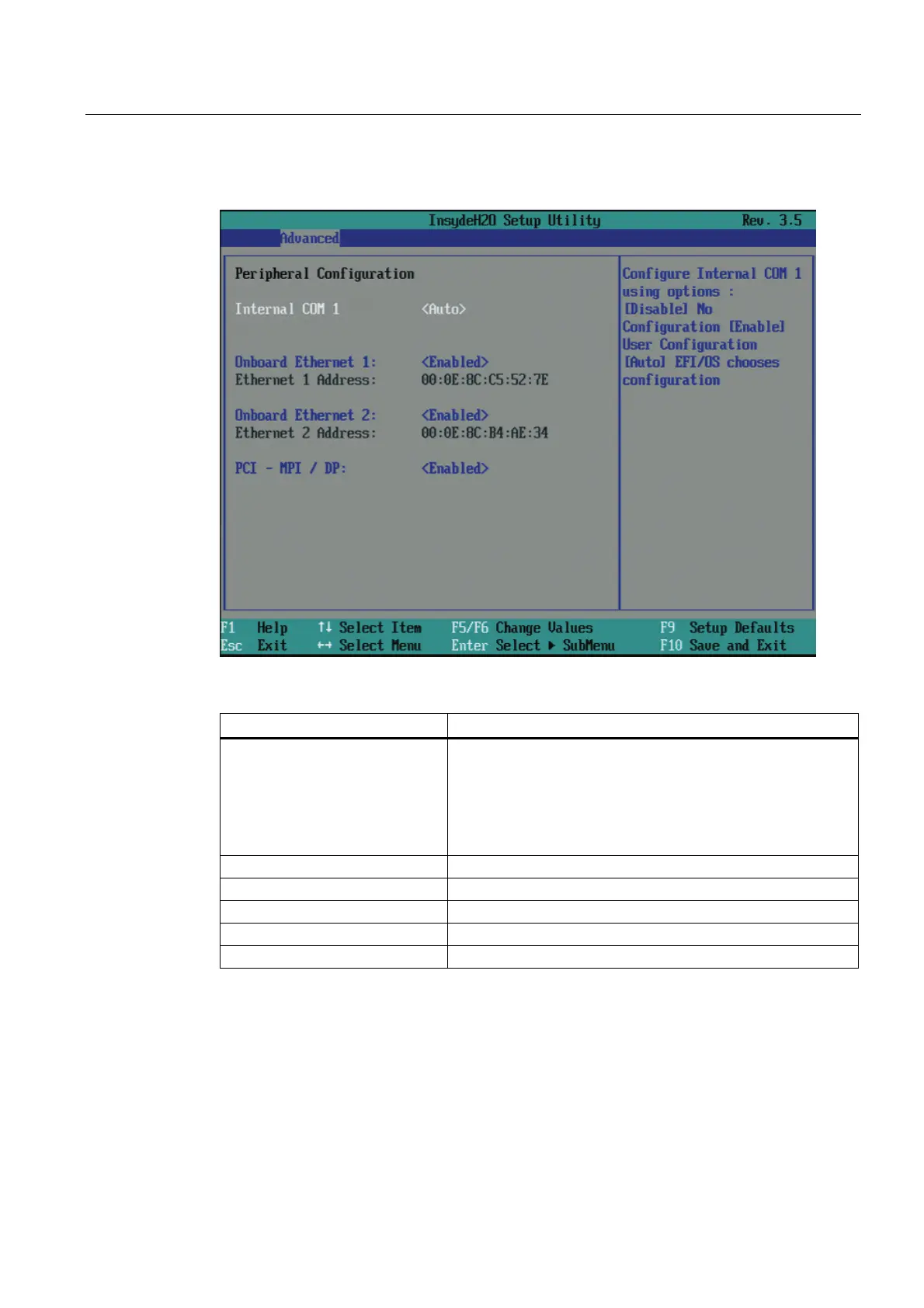

Figure 16-7 "Peripheral Configuration" submenu
Entry Meaning
Internal COM 1 Enable (Enabled) or disable (Disabled) the serial port or
configure it automatically (Auto)
With Enabled, it is possible to specify the I/O base address and
the interrupt.
AUTO: BIOS switches on the COM. Resources are assigned in
the OS per reconfiguration.
Onboard Ethernet 1: Enable or disable the onboard Ethernet 1 interface.
Ethernet 1 Address: Display the MAC address of Ethernet 1
Onboard Ethernet 1: Enable or disable the onboard Ethernet 2 interface.
Ethernet 1 Address: Display the MAC address of Ethernet 2
PCI – MPI / DP / PROFINET: Enable or disable the onboard MPI/DP or PROFINET interface.
