Advanced menu > SATA/PATA Configuration

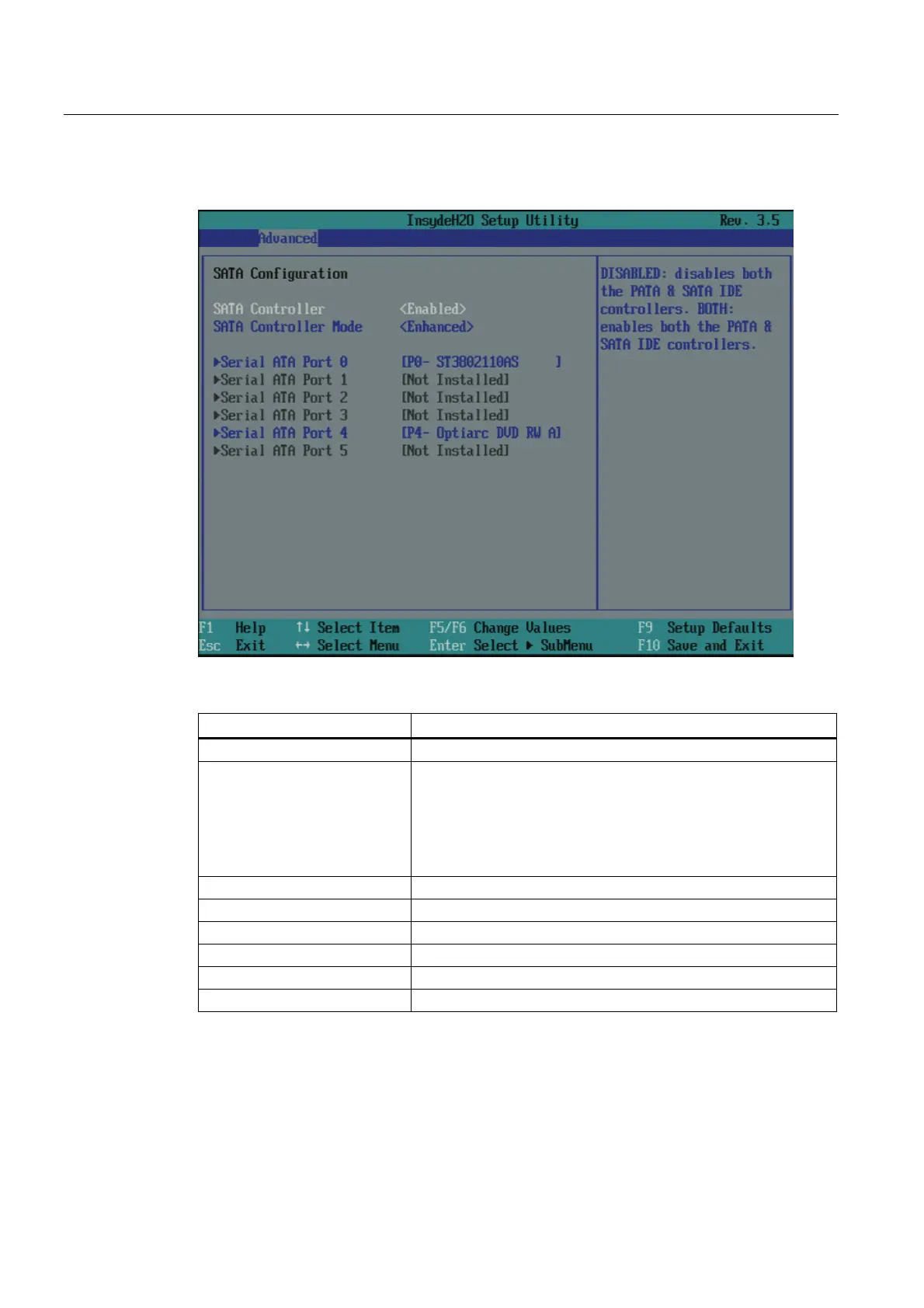

Figure 16-8 "SATA/PATA Configuration" submenu
Entry Meaning
SATA Controller Enable or disable the SATA and PATA controllers.
SATA Controller mode Set operating mode of the SATA controller:
• Enhanced: SATA Ports 0-3 operate in Legacy mode, SATA
Ports 4-5 in native IDE mode
• AHCI : Disable or enable the AHCI support
• RAID: Disables or enables RAID support
Serial ATA Port 0 Submenu for SATA Port 0 configuration
Serial ATA Port 1 Submenu for SATA Port 1 configuration
Serial ATA Port 2 Submenu for SATA Port 2 configuration
Serial ATA Port 3 Submenu for SATA Port 3 configuration
Serial ATA Port 4 Submenu for SATA Port 4 configuration
Serial ATA Port 5 Submenu for SATA Port 5 configuration
