Siemens SIMATIC HMI series System Manual

WinCC BarChartControl

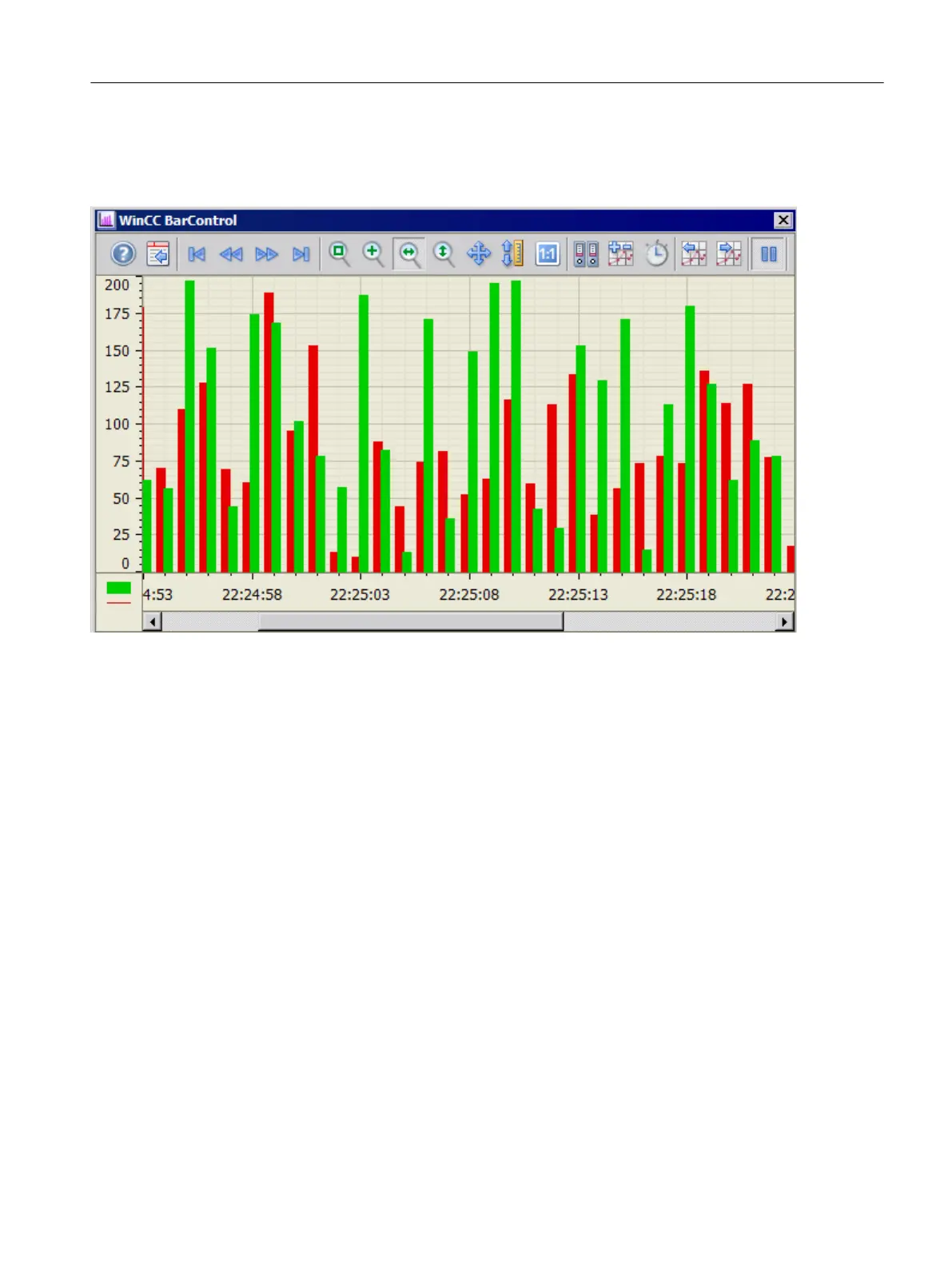

The new WinCC BarChartControl shows values of archive tags in a bar chart.
You have numerous options for configuring how the bar chart is displayed:
● Diagram window:
–
The WinCC BarChartControl can contain one or more diagram windows.
– Each diagram window can display multiple charts.
● Chart types:
– Version 1: Only bars are displayed in the bar charts.
– Version 2: The bar with value specification contains the value as text, optionally with
display of the unit
● Write direction:
– All four write directions can be configured.
– Writing from the right is standard in the diagram window.
What's new in WinCC V7?
3.9 Extended functionality for WinCC controls
WinCC: General information and installation
System Manual, 02/2017, A5E40840020-AA 103

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
