6.3 ApDiag Menu Commands
6.3.1
Menu Bar Overview
Overview
ApDiag operation is described in the following chapters.

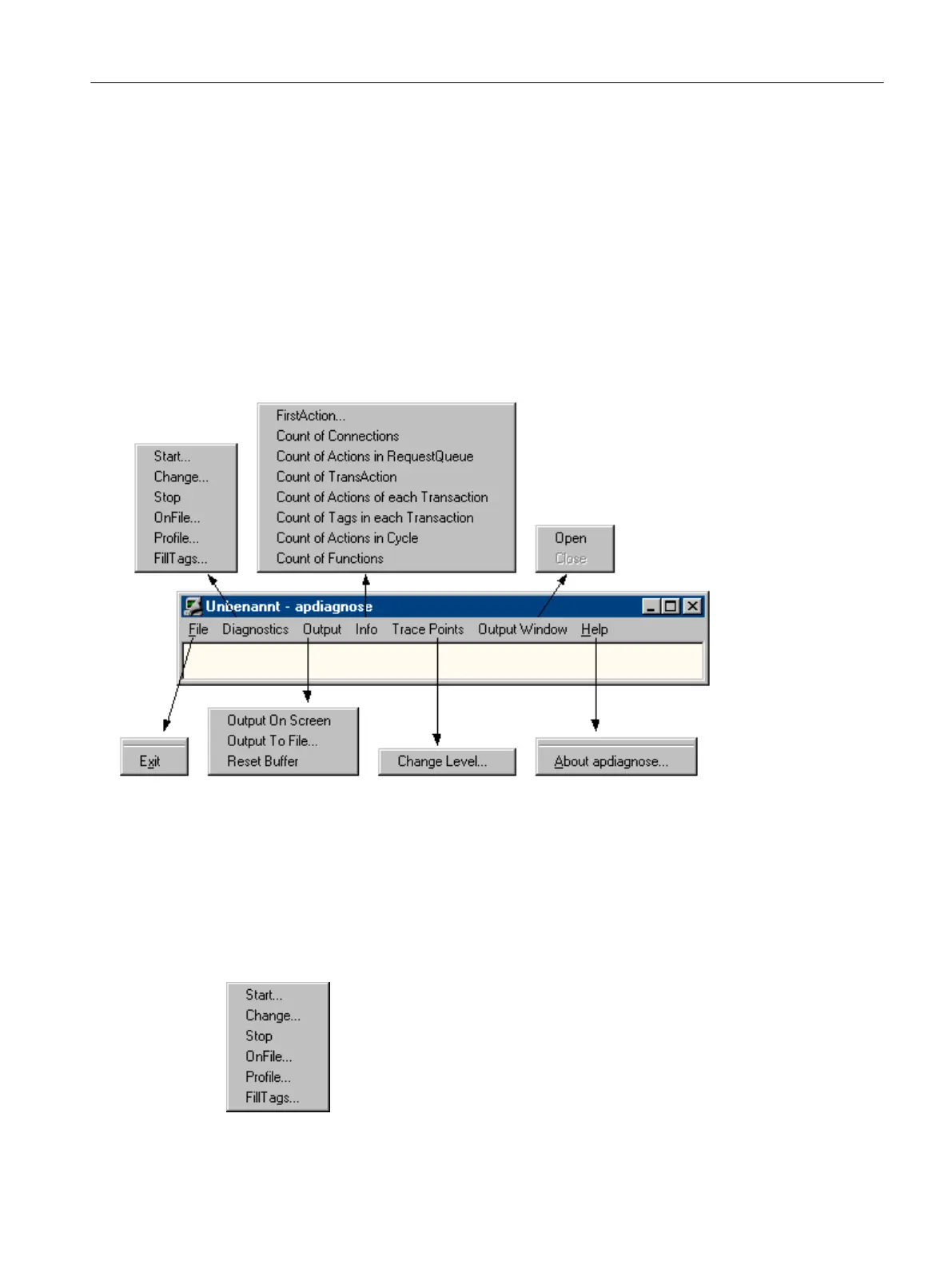

The menu bar is constructed as follows:
In the online help, you can click on a menu command with the mouse and display the respective
description.
Diagnostics
Menu "Diagnostics" offers several types of diagnostics information.
WinCC diagnosis
6.3 ApDiag Menu Commands
WinCC: General information and installation
System Manual, 02/2017, A5E40840020-AA 165

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
