7.7 Diagnostics of Licensing Problems
License Check
If
WinCC
continues to switch to demo mode even though the licenses have been transferred,
WinCC and the Automation License Manager offer a diagnostic function to check the licenses.
How to check the licenses using WinCC License Analysis
1. In the Windows start menu, select the "License Analysis" entry in the "SIMATIC > WinCC
> Tools" folder. WinCC License Analysis opens.

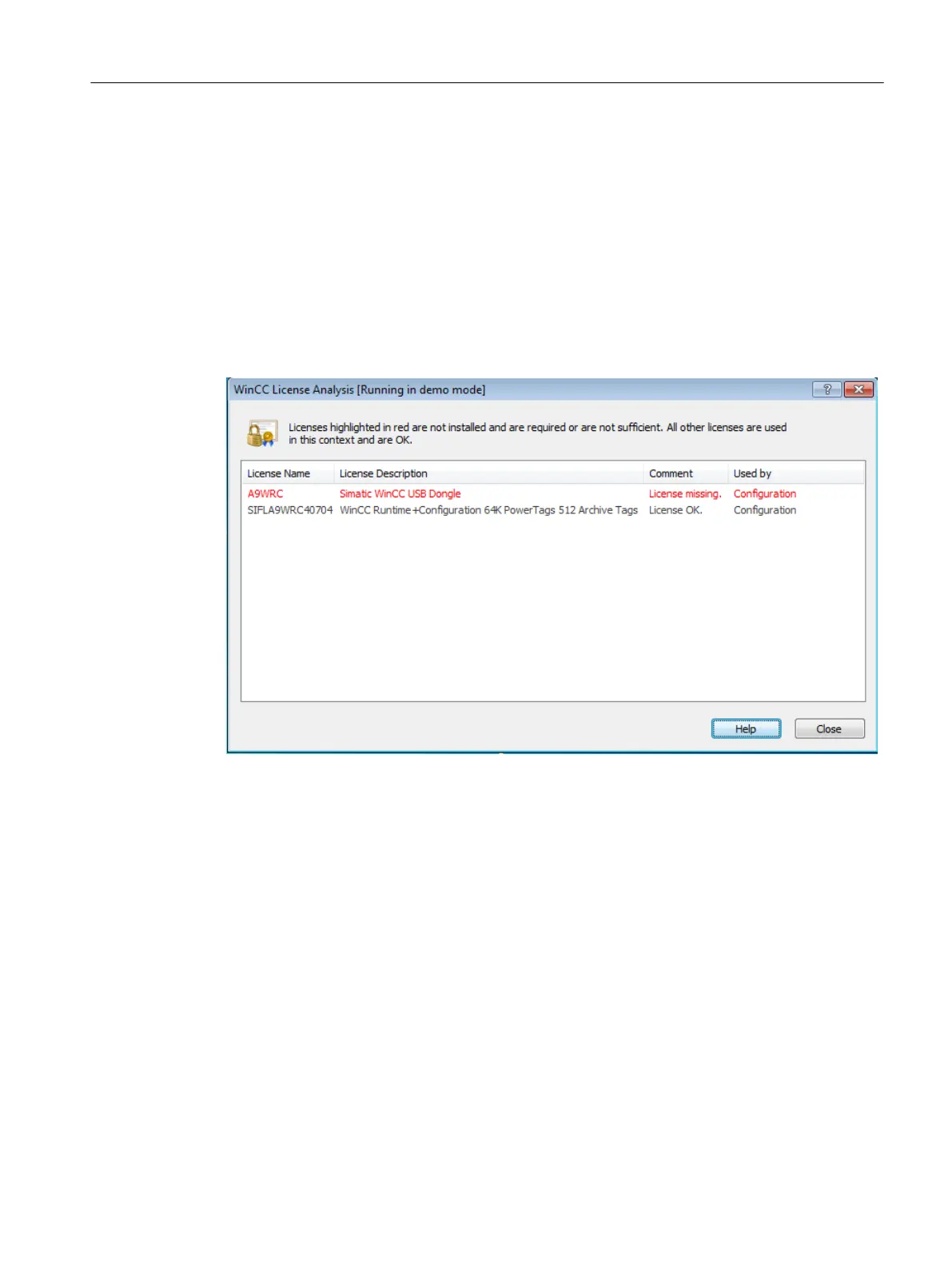

2. The window displays the installed licenses and the required licenses. Required licenses
that are not installed or not adequately dimensioned are highlighted in red.
Alternatively, open the license analysis in the Taskbar Notification Area from the shortcut menu
of the "SIMATIC WinCC" icon.
How to check the licenses using the Automation License Manager
1. Open the Automation License Manager in the "Siemens Automation" program group.
2. Select the "Management" view in the Automation License Manager.
3. Select the storage location of the license key in the navigation window. The available license
keys are displayed.
4. Select the license key to be checked in the table.
5. Select the "Check" option from the shortcut menu. The license is checked and the result of
the check is indicated in the table by means of a status icon.
Licensing
7.7 Diagnostics of Licensing Problems
WinCC: General information and installation
System Manual, 02/2017, A5E40840020-AA 205

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
