Siemens SIMATIC HMI series System Manual

Using "Start", "Change" and "Stop", the recording of diagnostic information (tracing) can be
controlled.
Menu command "OnFile" can be used for defining the output source for the individual types
of diagnostics information.
The runtime
of actions can be measured and queue growth can be monitored with command
"Profile".
Using command "FillTags", saving important diagnostics information in internal tags is
activated and deactivated.
Output

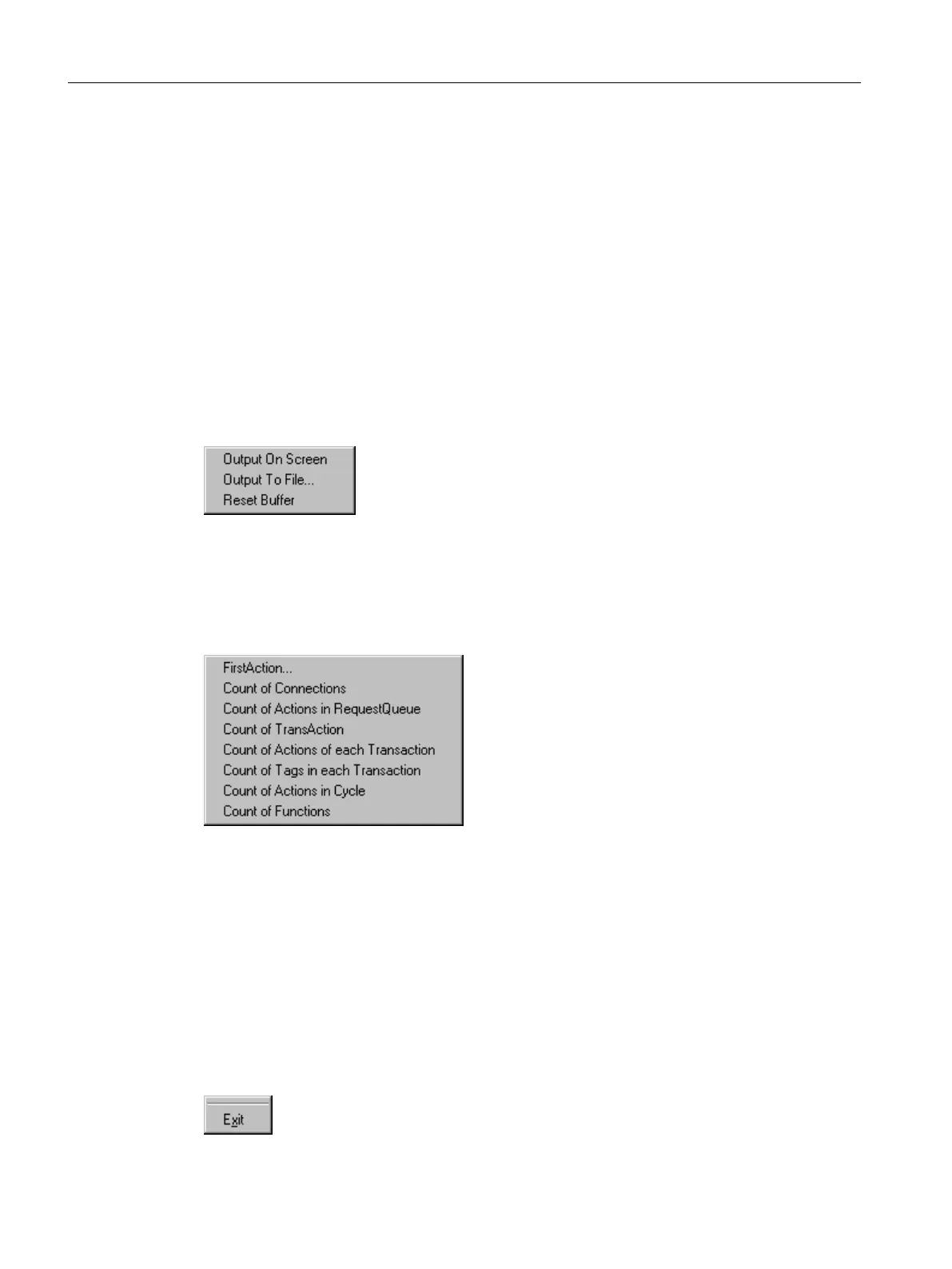

Using menu "Output", trace entries generated with diagnostics can be output to a window,
stored in a file or deleted.
The trace entries are also collected in a circulating buffer when the window is not shown.
Info
Menu "Info" delivers current information on the system.
The diagnostic information is output one time when selected (not automatically). The output
is done as trace (Level1) and as printf.
6.3.2 File - Exit
Description
Use command "Exit" to end ApDiag.
WinCC diagnosis
6.3 ApDiag Menu Commands
WinCC: General information and installation
166 System Manual, 02/2017, A5E40840020-AA
