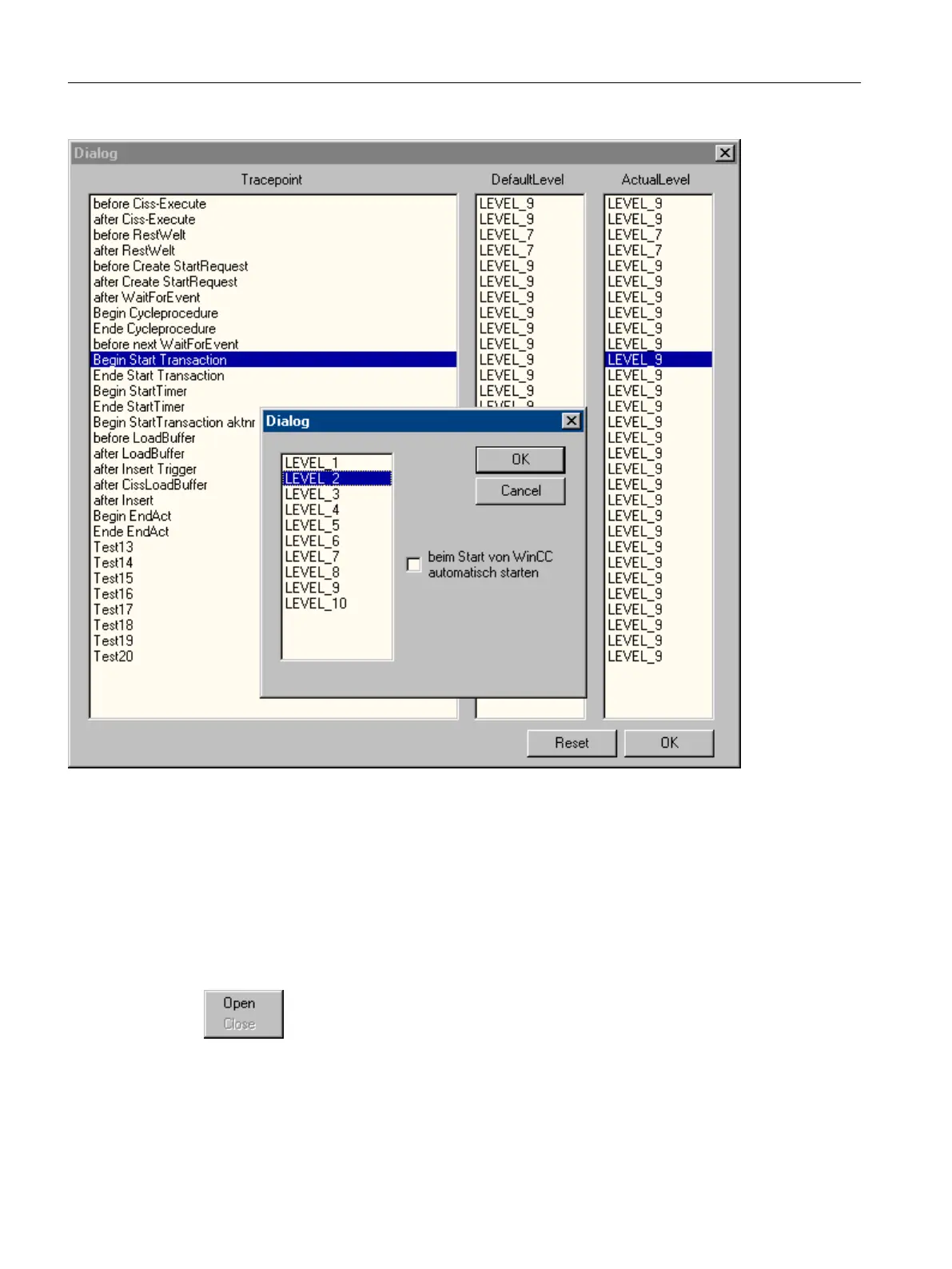

6.3.7 Output Window - Open / Close
Description
Opens or closes the output window.
The output window corresponds with application window GSC diagnosis, but offers the
following advantages:
• It is independent of the configuration. The configuration does not have to be accessed,
especially with third-party projects.
WinCC diagnosis
6.3 ApDiag Menu Commands
WinCC: General information and installation
186 System Manual, 02/2017, A5E40840020-AA

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
