Expanding and assigning parameters to the device

6.6 Drives

SIMATIC IPC BX-39A

68 Operating Instructions, 07/2022, A5E50715883-AA

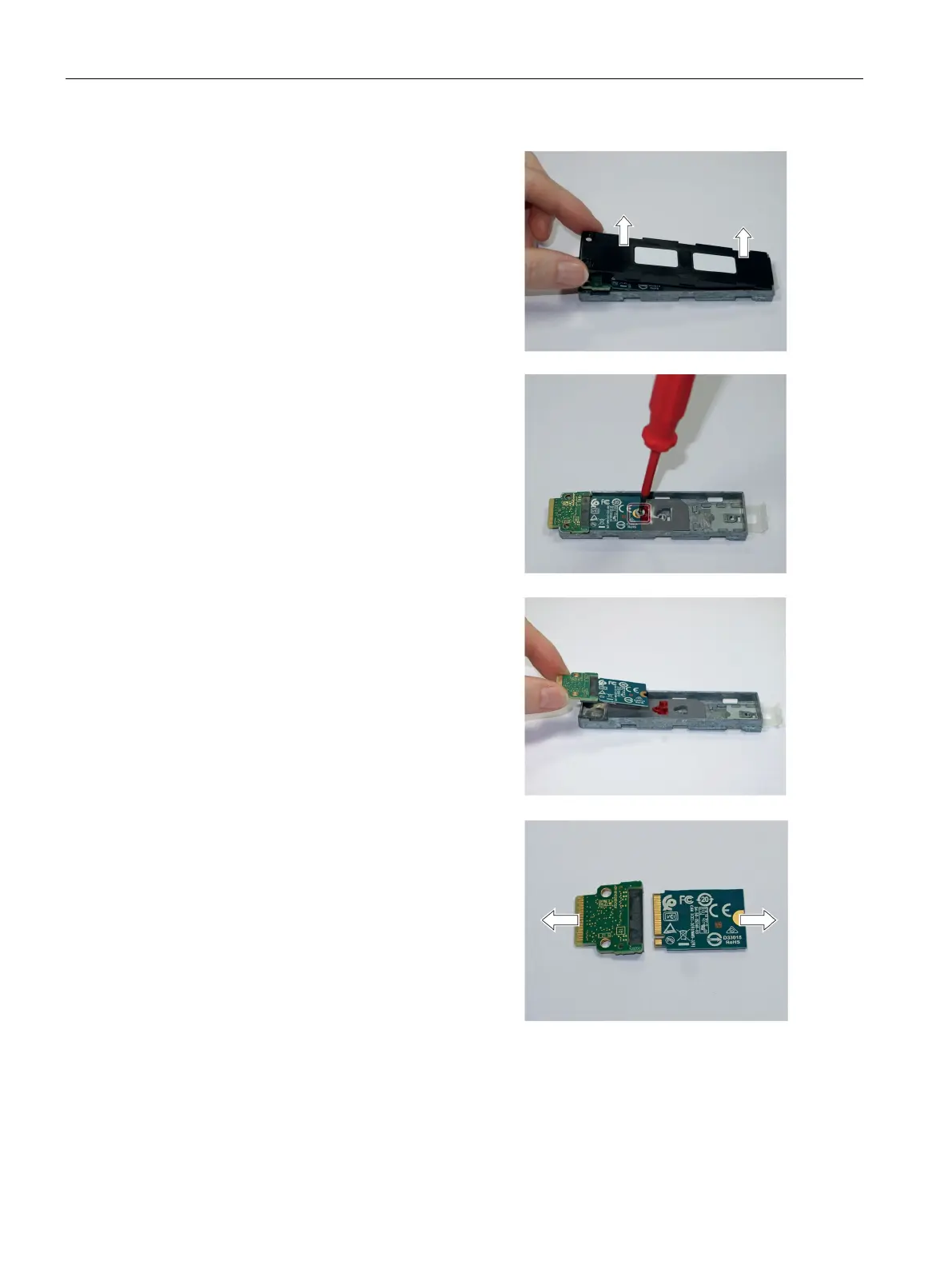

Remove the black plastic cover.

Remove the marked screw with the

screwdriver of type Torx

T8.

Remove the M.2 NVMe SSD from the

Slider as shown.

Carefully separate the M.2 NVMe SSD

fro

m the adapter plate.
