The SINAUT Configuration Tool
6.4 The connection configuration
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
143
The connection shown in red in the figure between the DNP3 master station and DNP3
station is not shown in this form in NetPro.
This is taken into account in the SINAUT connection configuration:
● Connections can be configured without knowing the exact connection path.
● The exact connection path can be viewed based on a list of used network nodes. The
degree of detail of the connection information can be set.
View of the Connection Configuration window
Open the connection configuration only after the configuration in STEP 7 NetPro has been
completed.
After opening the connection configuration, the configuration window opens.

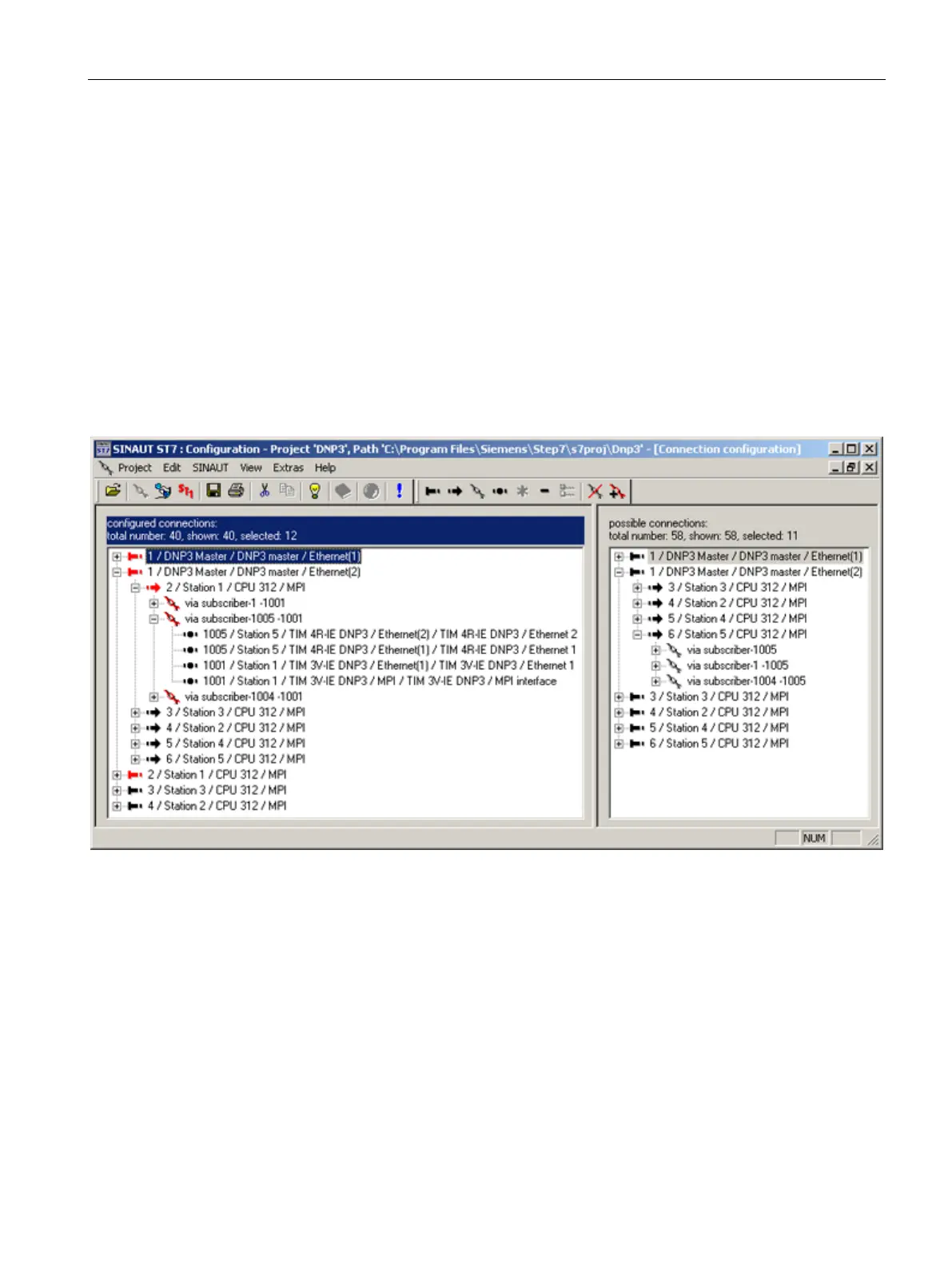

Image 6-3 The Connection configuration window of the SINAUT configuration tool
In the right-half of the window, the possible connections are listed in a tree structure resulting
from the network configuration in NetPro. The connections actually required and used for
communication in the telecontrol system installation must be transferred from the right-hand
to the left-hand window configured connections.
The two lists display the number of connections involved.
