The SINAUT Configuration Tool
6.5 The Subscriber Administration
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
155

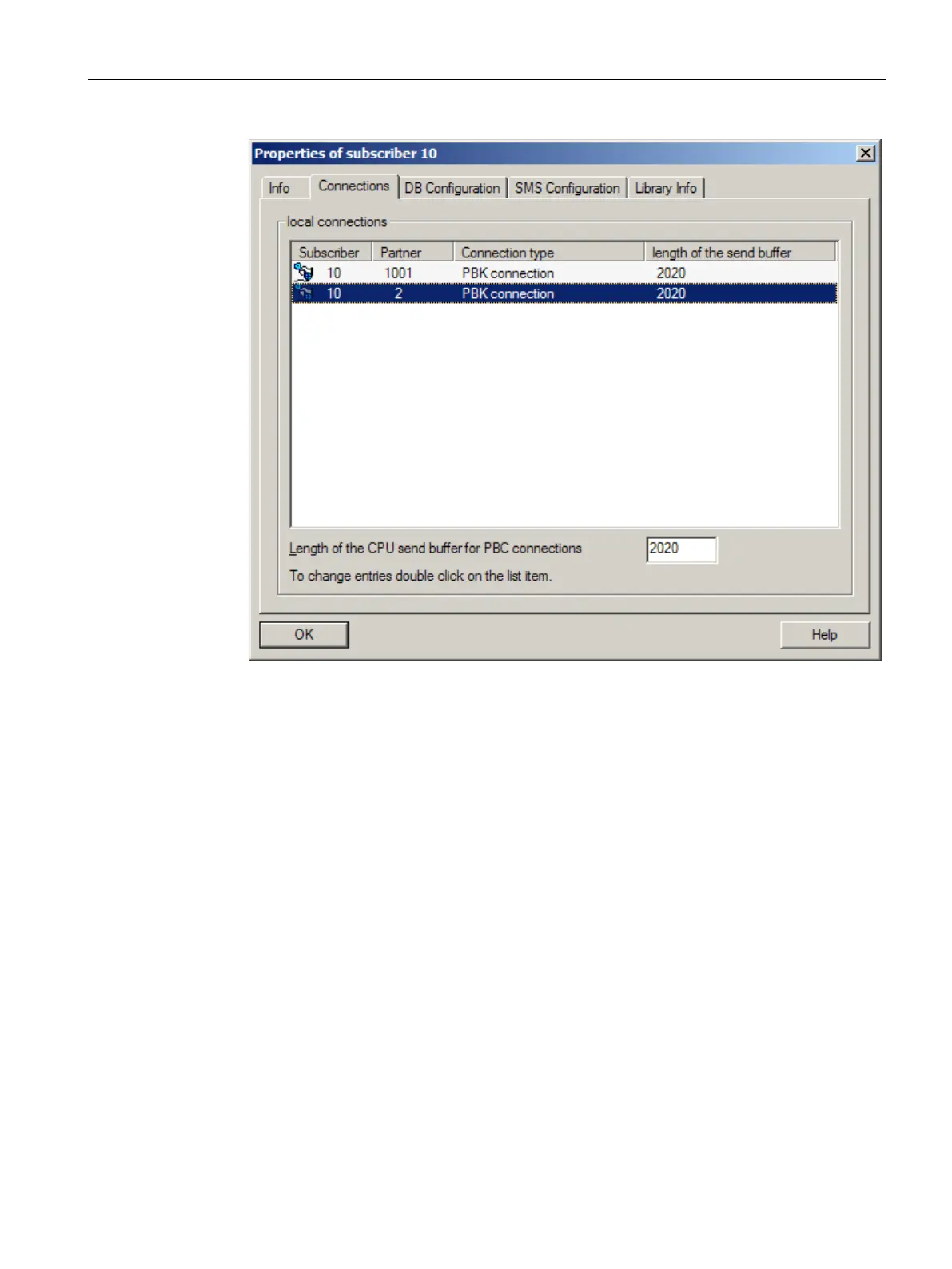

Image 6-7 Properties of subscriber dialog (CPU), Connections tab
Here, you can configure the following:
● Length of the CPU send buffer for any existing communications block connections [bytes]
This parameter cannot be set for a DNP3 CPU.
The length of the CPU send buffer for any existing communications function block
connections of a CPU. This is the same for all communications function block
connections of the current CPU.
Range of values: 202 .. 65208 bytes
Default: 2020 bytes
By double-clicking on a subscriber row in the
local connections output box, you open the
Properties - Local Connection dialog for this connection.
