The SINAUT Configuration Tool
6.5 The Subscriber Administration
TIM DNP3
156 System Manual, 12/2015, C79000-G8976-C253-04
Properties - Local Connection
dialog for the TIM
This dialog displays the properties of the local LAN connection of a TIM module to its CPU.

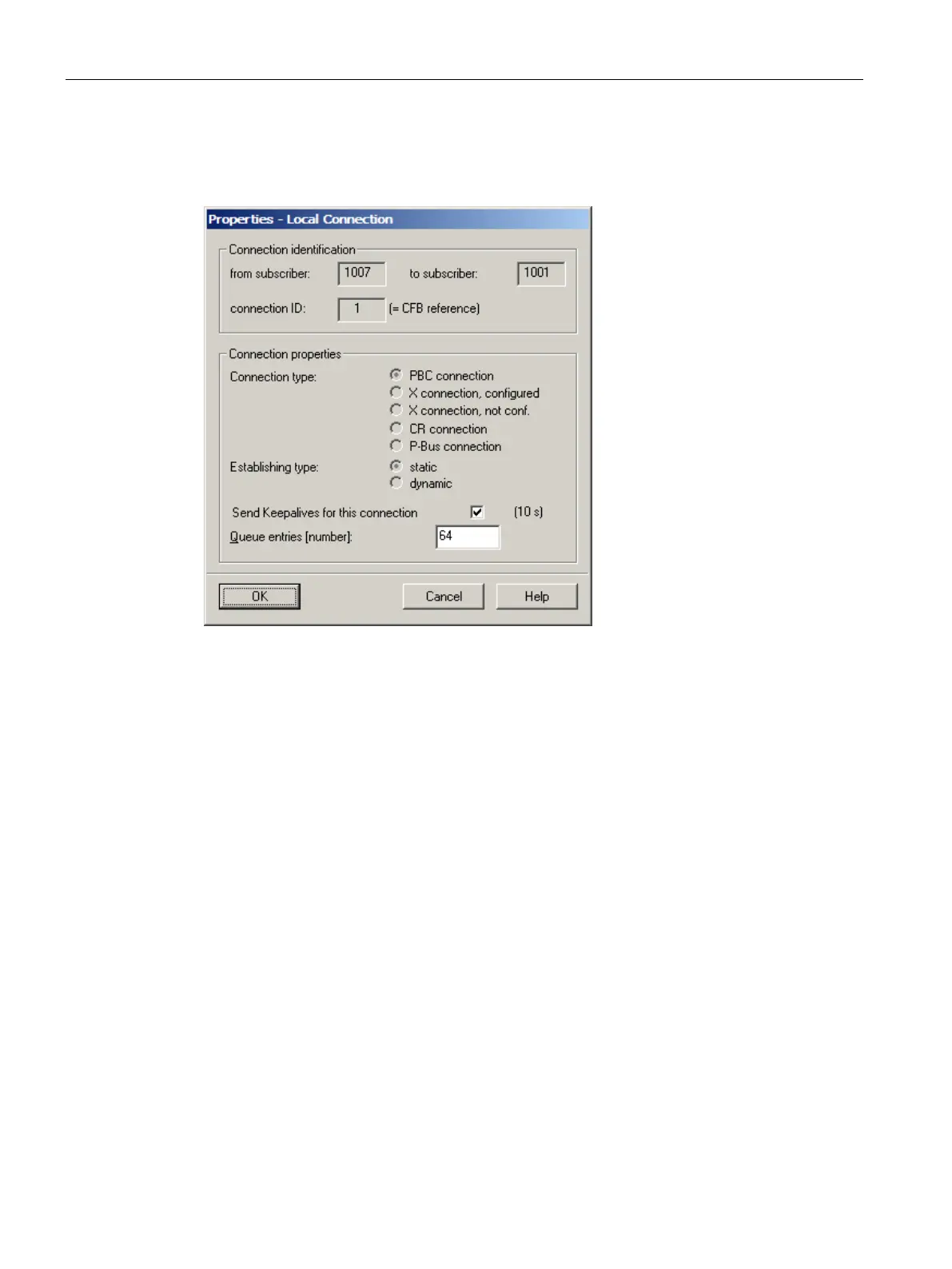

Image 6-8
Properties - Local Connection
dialog (TIM)
For the local connection of the TIM module, you can set the following here:
●
Send Keepalives for this connection:
If this option is enabled, keepalive messages are sent on this connection at the intervals
set in the network configuration for the TIM.
●
Queue entries [number]
:
Range of values: 10 .. 256
Default: 64
The number of queue entries is the number of messages that the TIM module can buffer
prior to transmission. In general, you do not need to change the default setting.
