Siemens SIMATIC TIM 3V-IE DNP3 User Manual

Diagnostics and upkeep
7.3 SINAUT diagnostics and service tool
TIM DNP3
270 System Manual, 12/2015, C79000-G8976-C253-04
● The TIM Routing Infos tab shows the following:
– At the top in the
Message area:
- the internal task ID
- the complete message length [bytes]
– Below in the
Address infos area:
- the device ID as a number and in plain text (for example MPI bus)
- the CN ID
- the station address

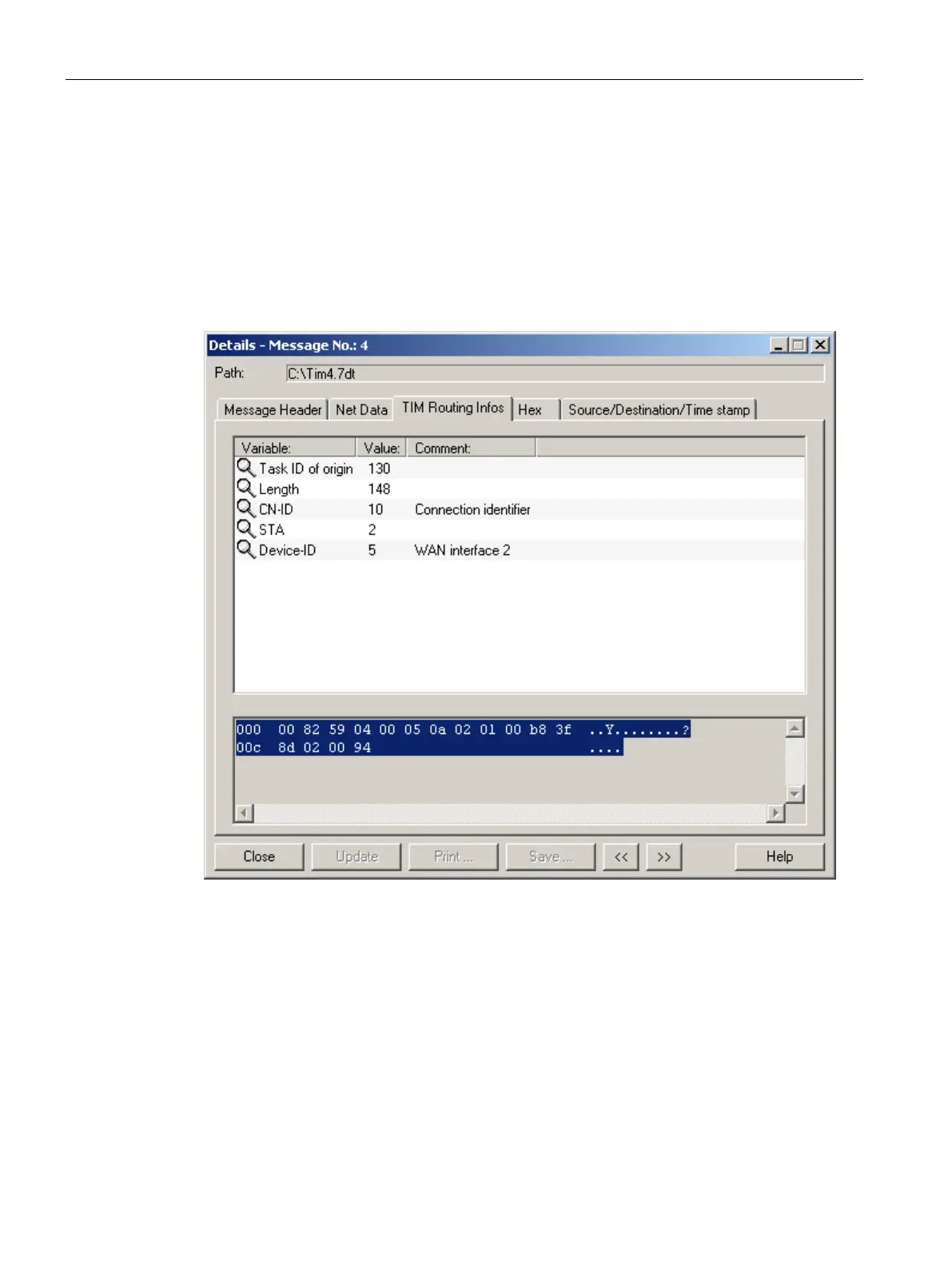

Image 7-6
Details dialog, TIM Routing Infos tab
