Diagnostics and upkeep
7.3 SINAUT diagnostics and service tool
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
271
● The Hex tab shows the following in hexadecimal format:
– In the
complete buffer box, the content of the entire message
The 1st block of numbers in each line is the byte number and data begins with the
second block of numbers. Before the net data, there are other blocks of numbers from
the message header, for example the message length etc.
– In the
net data box, only the net data of the message
The 1st block of numbers in each line is the byte number and the net data begins with
the second block of numbers.

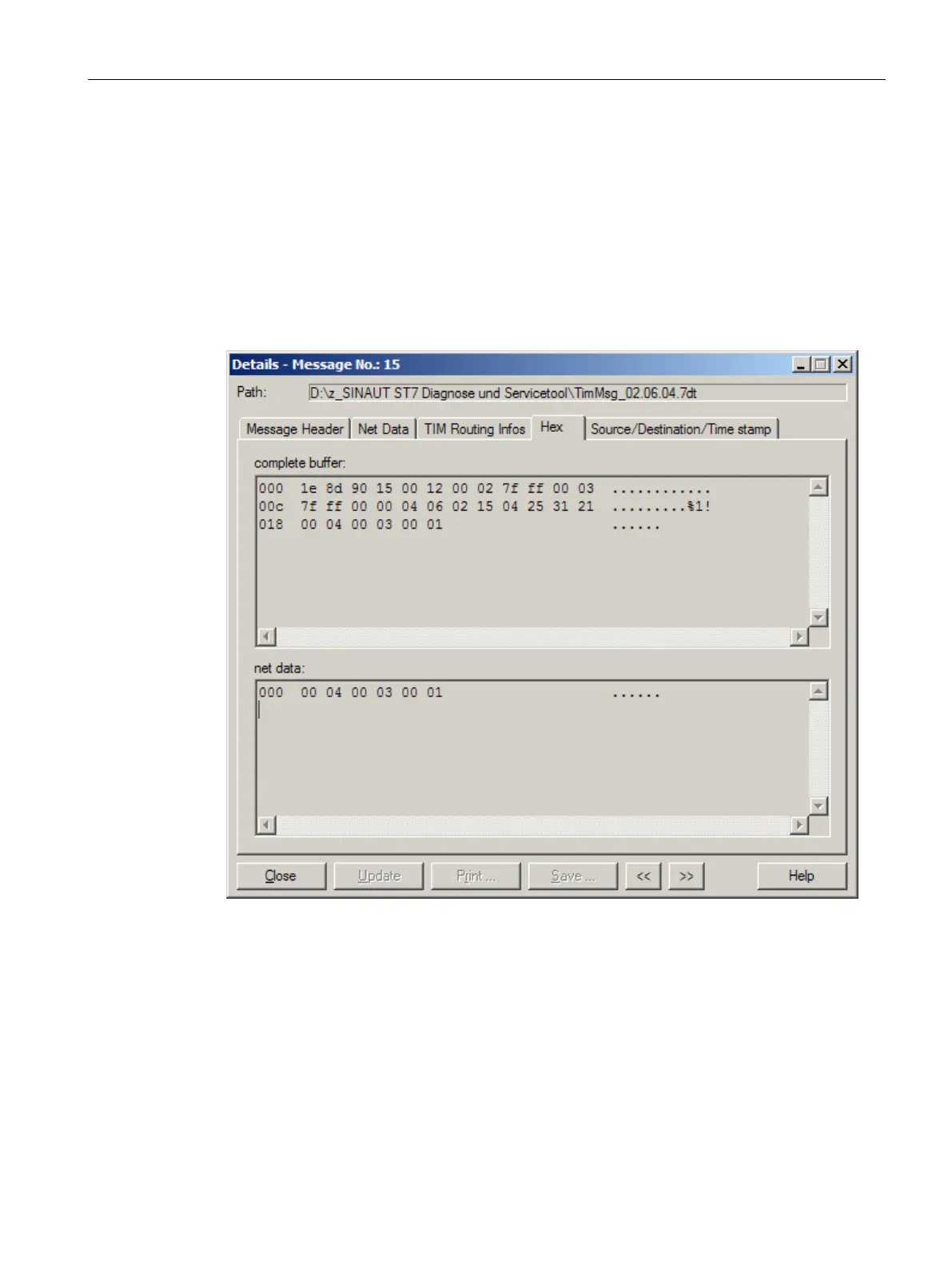

Image 7-7
Details dialog, Hex tab
● The Source/Destination/Time stamp tab provides information in its three boxes on the
source, and destination and time stamp of the message. The fields provide the following
information:
–
Source : Information on the subscriber number, name, type name, station name, object
number and index number
–
Destination : Information on the subscriber number, name, type name, station name
and object number
–
Time stamp : Information on the date, time, status, status info.
