12
12.1 General
137Digital Fault Recorder, SIMEAS R-PMU, Manual
E50417-H1076-C360-A5, Release 10.2012
Parameterize SIMEAS R-PMU
The parameterization dialog is structured as follows:

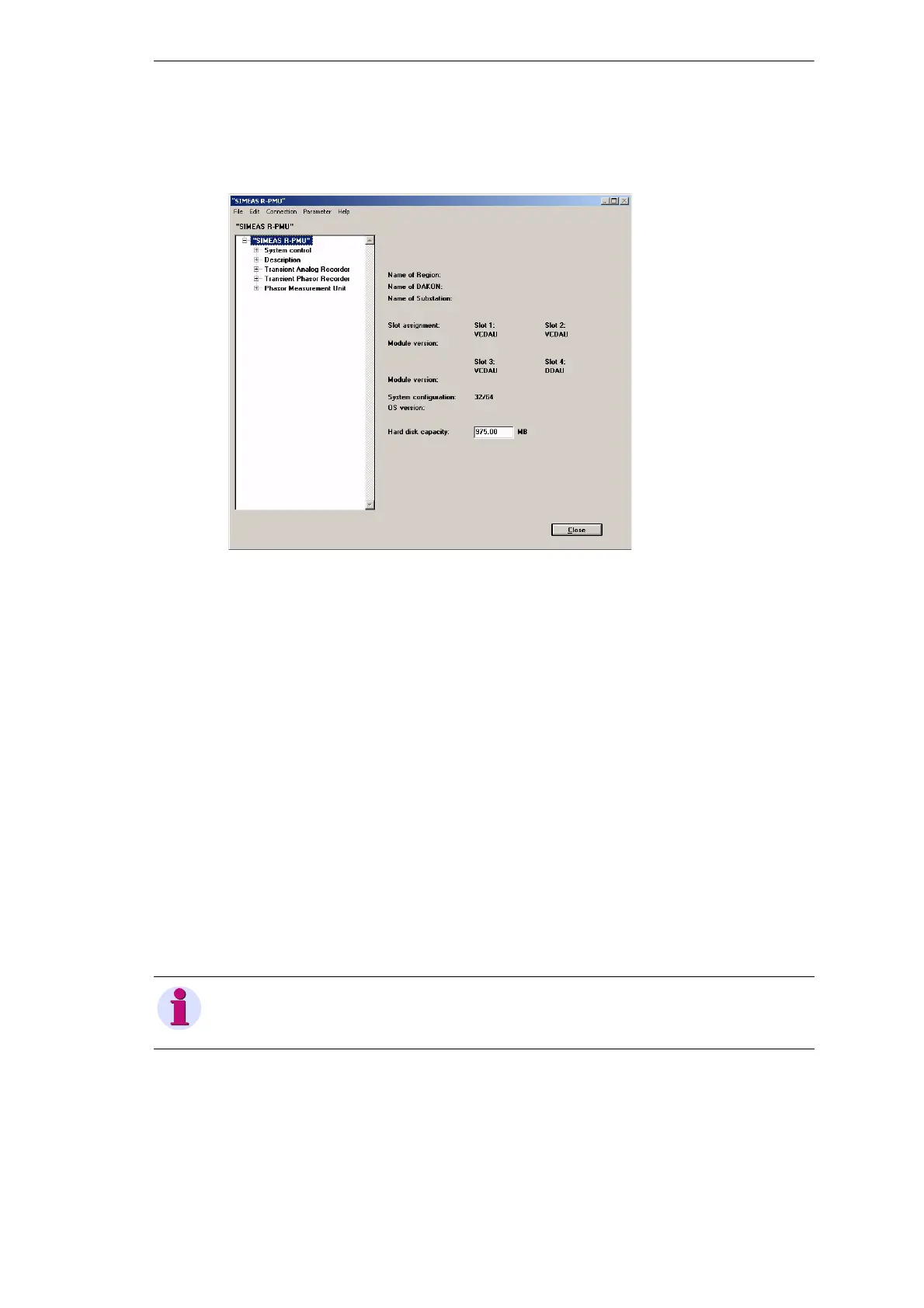

Figure 12-7 Dialog box for setting the SIMEAS R-PMU parameters
System control with the tabs Configuration, Local printer, Time synchronization and
SIMEAS R-PMU calling Master Station
Device Function with the tabs Continuous Recorder and Fault recorder
Interfaces with the tabs Data Interface, LAN Interface and Service Interface
LEDs/Relays with the tabs LED, Relay and Group Alarm
Description
Slot assignment 1 to 4 with the tabs Analog Channels, Power/Frequency,
Symmetrical Components and Binary channels
Transient Analog Recorder with tab Time settings
Trigger with the tabs Analog Trigger, Binary Trigger, External/Network, Pattern and
DC Trigger
Transient Phasor Recorder with tab Time settings
Trigger with the tabs Analog Trigger, Binary Trigger, External/Network and
DC Trigger
Phasor Measurement Unit with tab Phasor Measurement Unit
PMU interface
To select the function, click on the entry in the directory structure (navigation pane, left) and
select the corresponding tab in the right-hand pane of the dialog box.
Note
The dialogs and tabs are shown or hidden depending on the parameterization of the device.
