Siemens SIMOCODE pro User Manual

Description of the blocks
4.4 Block for MMMeas measured value function
SIMOCODE pro PCS 7 Library V9.0
168 Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001

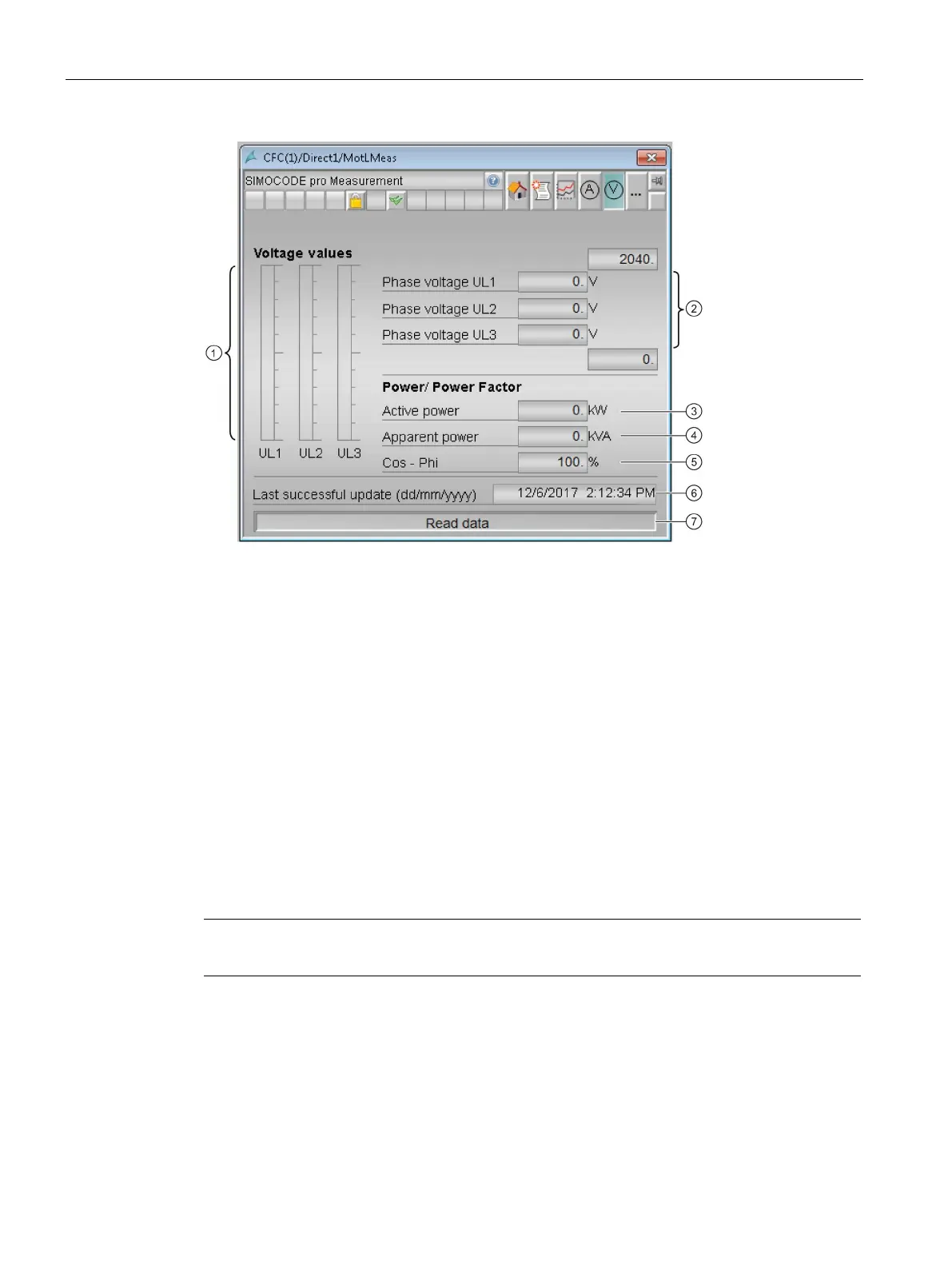

Figure 4-5 Voltage module
Voltage values
①
Voltage values UL1-UL3 as bars (Vol_OpScale high value, low value)
②
Phase voltage in Volts (MotVol1, MotVol2, MotVol3)
③
Active power in watts (ActPower)
④
Apparent power in VA (AppPower)
⑤
Power factor Cos phi in % (MotCosPhi)
⑥
Last successfull Timestamp of Read Data
⑦
Button for updating the data (RdDataOp).
Button is deactivated if RackF_Act = 1, authorization level 5 and higher (ProcessControling)
These parameters are enabled when a Voltage measuring module is connected.
Note
In case of line voltage, UL1
-L2, UL2-L3, UL3-L1 will be displayed.

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
