Introduction
1.7 Example configurations
SIMOCODE pro PCS 7 Library V9.0
24 Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001

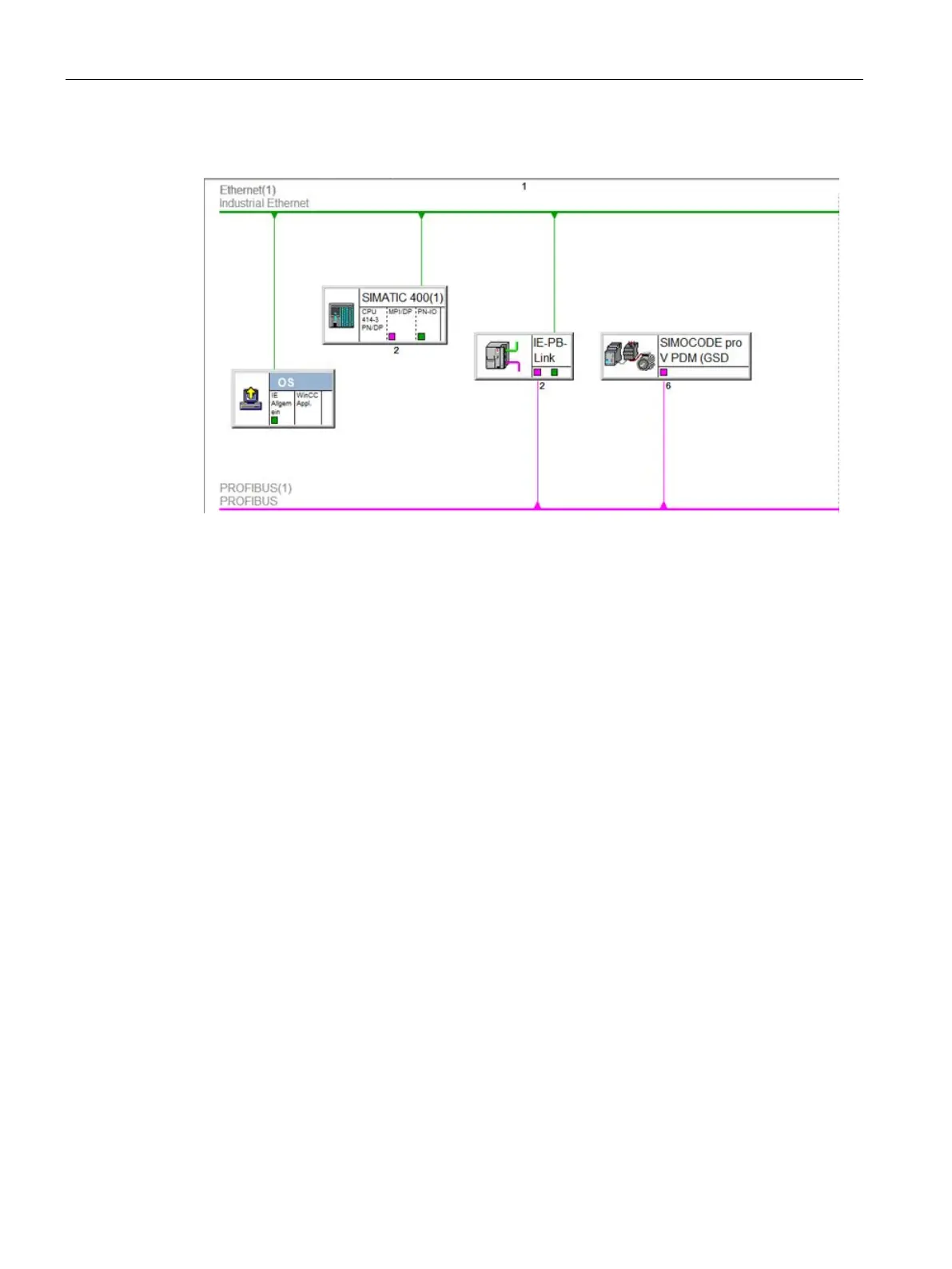

SIMOCODE pro C / S / V behind IE-PB-Link (OM / GSD)
Figure 1-7 SIMOCODE pro C / S / V behind IE-PB-Link (OM / GSD)
SIMOCODE pro PROFINET configuration
SIMOCODE pro V PN Configurations
PROFINET port monitoring settings are made mandatory. When multiple devices are
connected to the CPU/CP card interface, used and unused PROFINET port settings are
required to distinguish between actual Rack failure and Device Failure.
Standalone Configurations (With Internal CPU/External PROFINET card interface)
When multiple devices are connected to the PROFINET interface, then the following settings
needs to be done.
1. In Port 1 of the PROFINET interface, "Transmission medium" should be automatic and
the "Monitor" checkbox needs to activated as shown in figure.
2. In Port 2 of the PROFINET card, "Transmission medium" and the "Monitor" checkbox
needs to be disabled as shown in figure.
