1.7 Example configurations
SIMOCODE pro PCS 7 Library V9.0
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
25
In Device
Similarly "Transmission medium" should be automatic and "Monitor" checkbox needs to be
activated for Port1 and Port 2 of all the SIMOCODE pro V PN devices (see figure) except for
the last device in the network loop where Port 2 should be disabled as shown in figure.
These settings are applicable in both internal PROFINET interface of the PLC and external
PROFINET interface of CP Card.

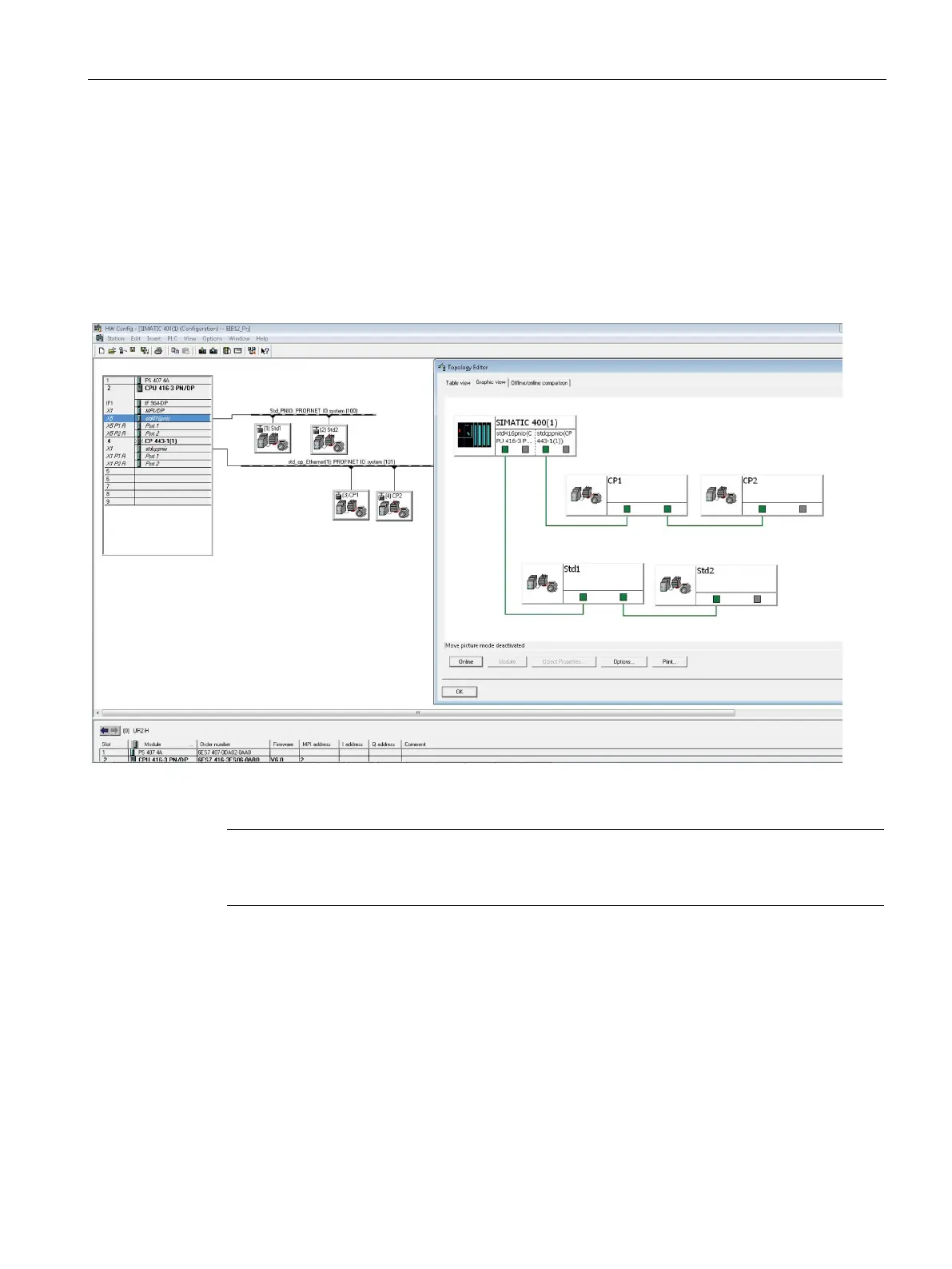

Figure 1-8 Standalone configurations
Note
By default when you add a device “Transmission medium” is set to Automatic and Monitor”
checkbo
x is disabled.

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
