Block icons and faceplate views
3.5 APL Operator Trend Control (AOTC) for Digital Values
SIMOCODE pro PCS 7 Library V9.0
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
71
3.5
APL Operator Trend Control (AOTC) for Digital Values
Opening the AOTC window
Press and hold the Ctrl key and left-click the value on the block icon to open the AOTC
window. Status of parameters (FbkFFwdOut, FbkFwdOut, FbkFRevOut and FbkRevOut) are
added to the Trend Control and the detailed information is displayed in the each row of the
overview area
.

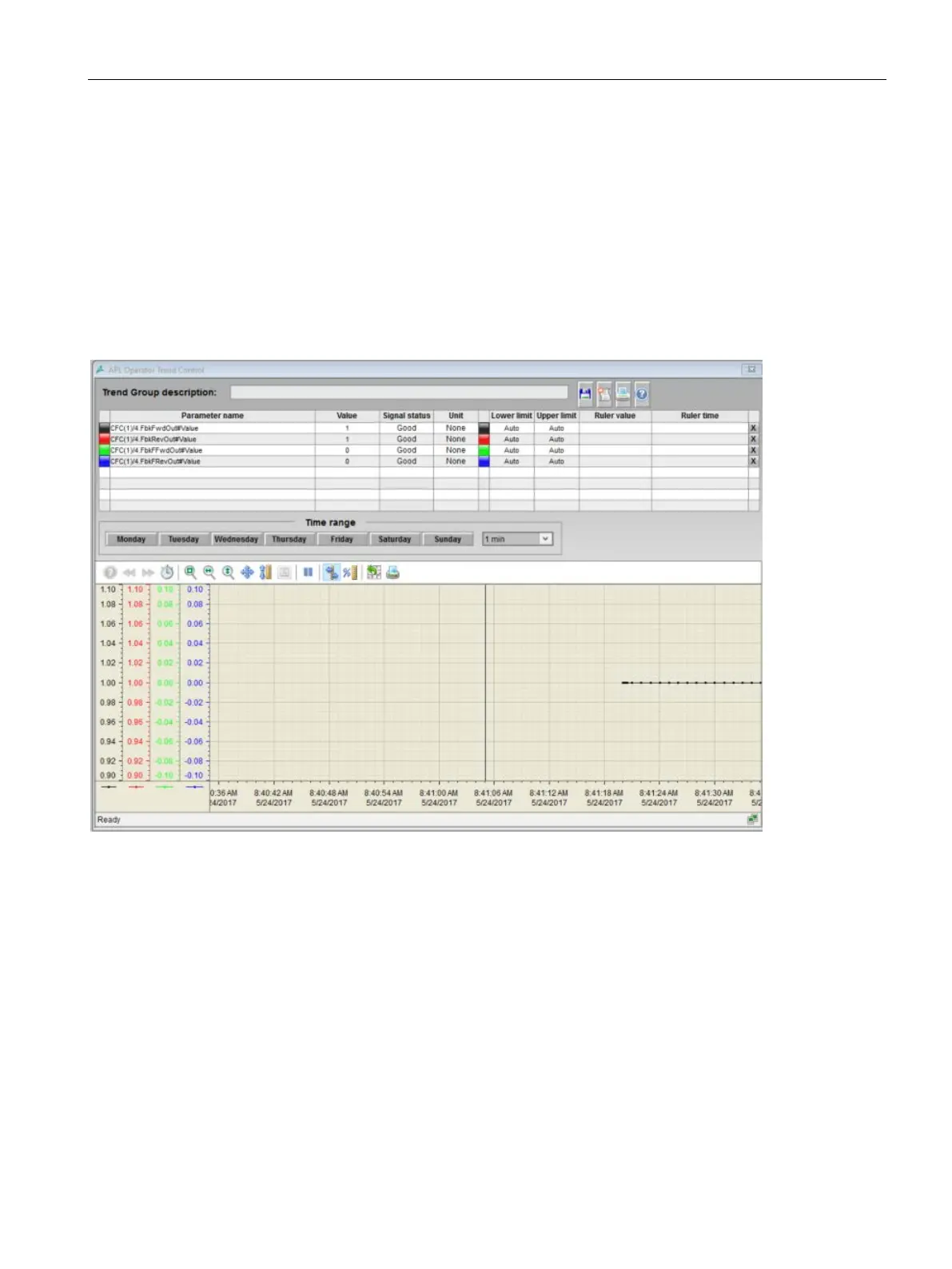

Figure 3-9 AOTC window
For more information on Operator Trend Control (AOTC)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
