Description of the blocks
4.3 MMOprtn block
SIMOCODE pro PCS 7 Library V9.0
150 Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
4.3.23.2
MMOprtn - Limits

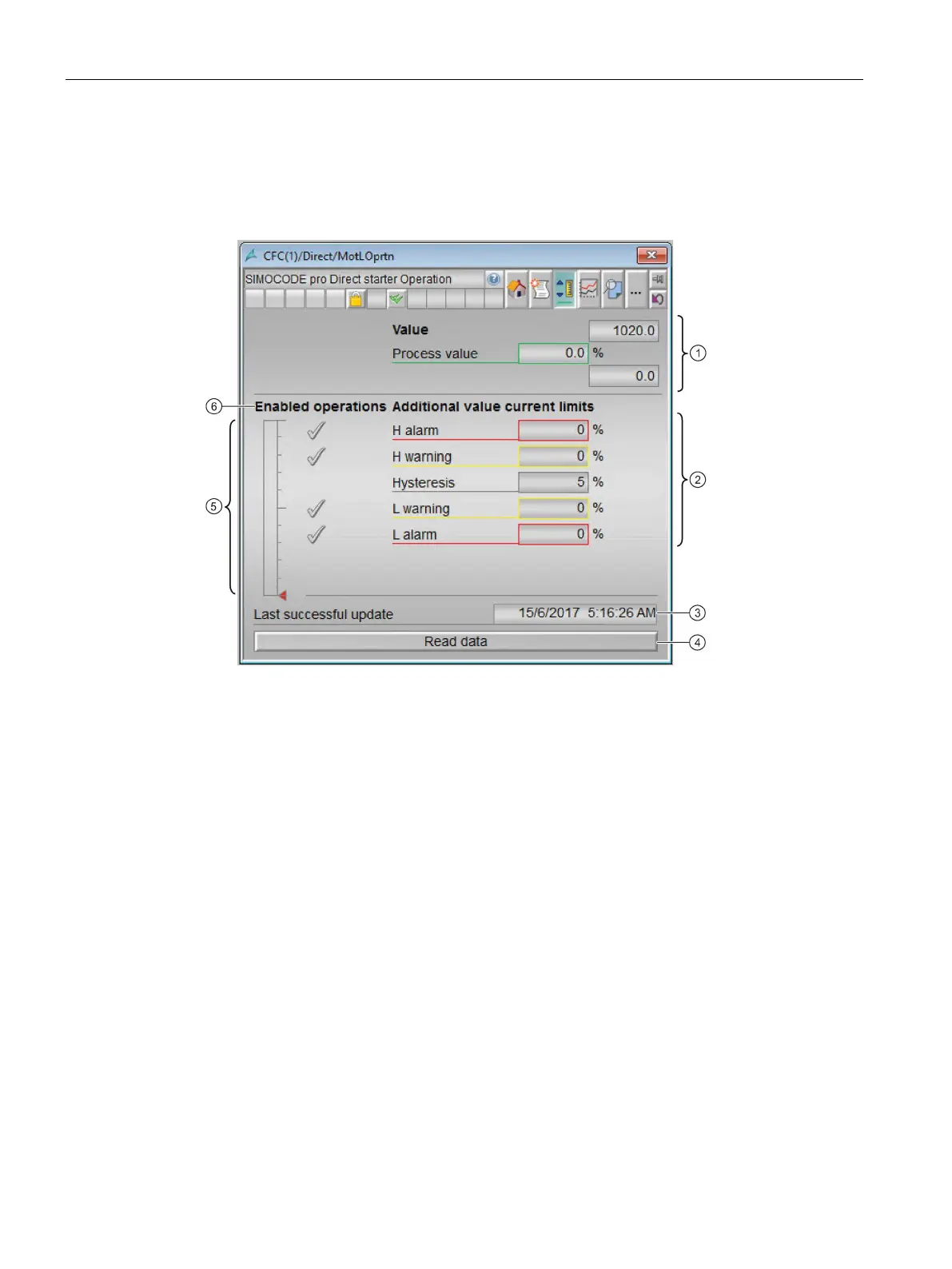

Limits view
①
Value
Display of the motor current in % with corresponding signal status (MotCurr)
Upper and lower range for motor current (
OpScale.High, OpScale.Low)
The values provide information on the display range for the bar graph (Curr_OpScale) of the
process value. The scale range is defined in the Engineering Station (ES).

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
