Siemens SIMOCODE pro User Manual

Block icons and faceplate views
3.2 Faceplates
SIMOCODE pro PCS 7 Library V9.0
68 Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001

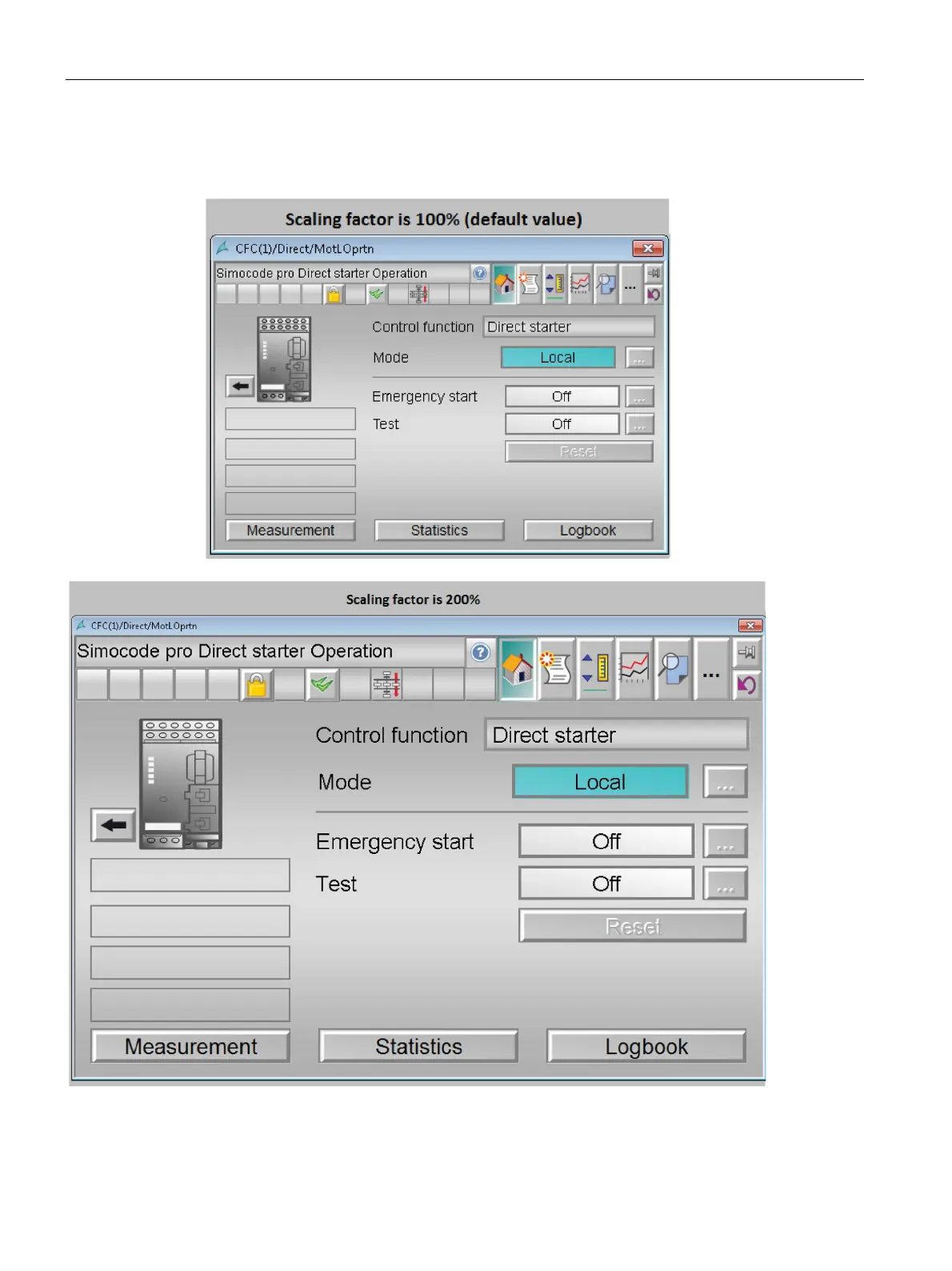

Example: The screenshot below shows the faceplates scaled up by providing the value of
200, scaled down by providing the value of 50 for the internal variable.

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
