9.1 Installation and connecting--up regulations
9-336
© Siemens AG 2008 All Rights Reserved
SIMODRIVE 611 Configuration Manual (PJU) -- 05/2008 Edition
Mounting surface
100 mm 100 mm
Cooling air
Warm discharged air

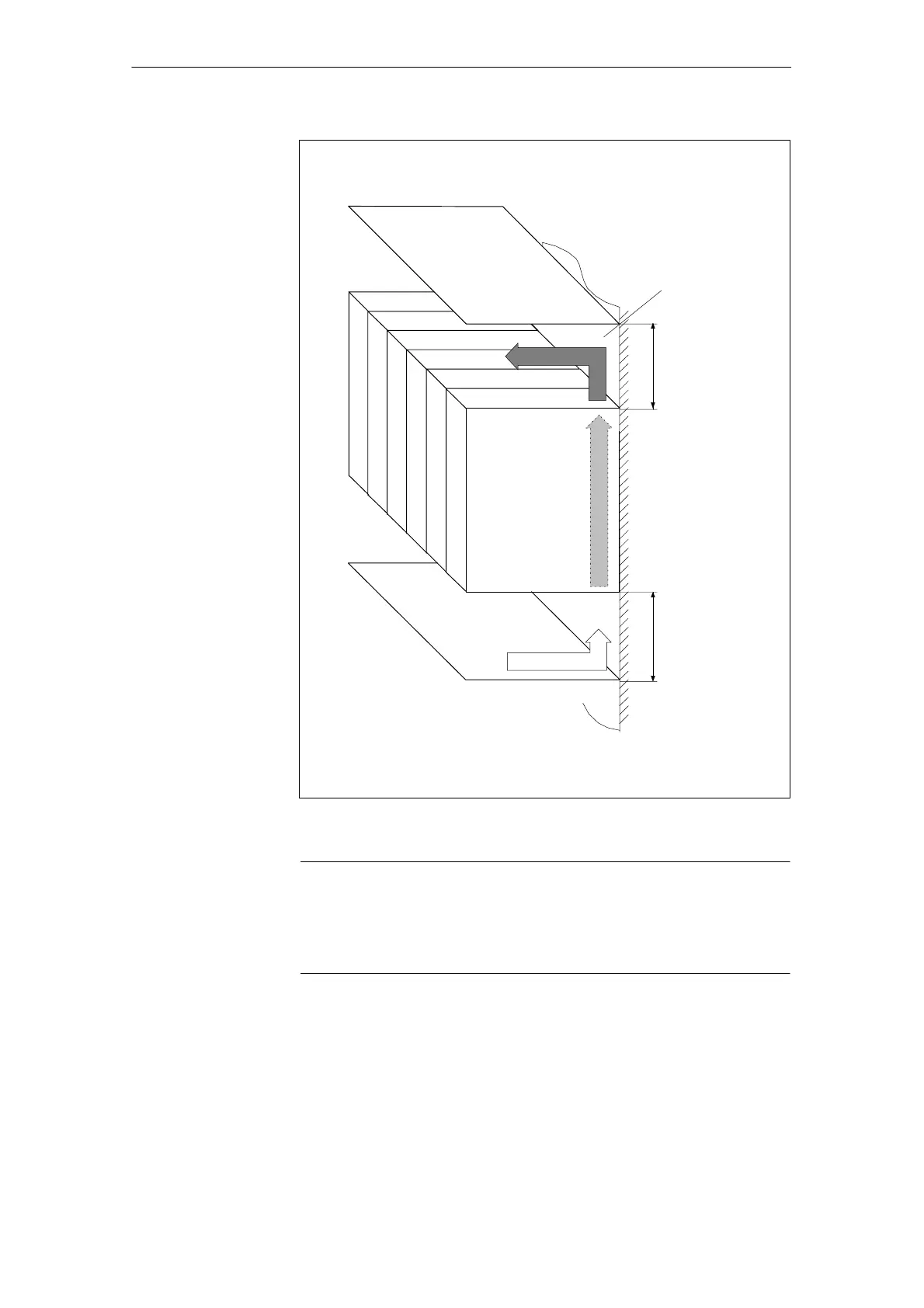

Fig. 9-5 Air flow in the electrical cabinet
Notice
For modules that generate a significant amount of heat, pulsed resistor module
and 10 kW UI module, a heat deflecting plate (100 mm wide) should be used to
protect the cable from excessive temperature. (For the pulsed resistor module,
50 mm wide, mounted so that they overlap.)
C
ne
De
n
n
MC
