4.2 Run–up of ”SIMODRIVE 611 universal”
4-119
 Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
4.2 Run–up of ”SIMODRIVE 611 universal”
At run–up, a differentiation is made, as to whether the drive was al-
ready commissioned.
 Still not commissioned
⇒ The drive requests a commissioning routine
––> refer to Chapter 4.3.1 or 3.2.1
 Already commissioned
⇒ When in an error–free condition, the drive runs up until the follow-
ing is displayed
”_ _ _ run”.
Reader’s note
Information regarding fault/error handling and diagnostics is provided
in Chapter 7.
The red LED is bright approx. 2 s
Already
commissioned?
no
yes
Power–up the ”SIMODRIVE 611 universal”
Run–up starts
Carry–out
commissioning
(e.g. specify the
power module, motor,
encoder, etc.
refer to
Chapter 4.3.1 or
Chapter 3.2.1)
”_ _ _ r u n ” is displayed
The red LED is dark
Run–up has been completed.
The drive is now in cyclic operation
Red
FAULT
LED
Display unit
Note:
Faults/errors which occur
at run–up, are displayed
flashing, in the display
unit.
START
END

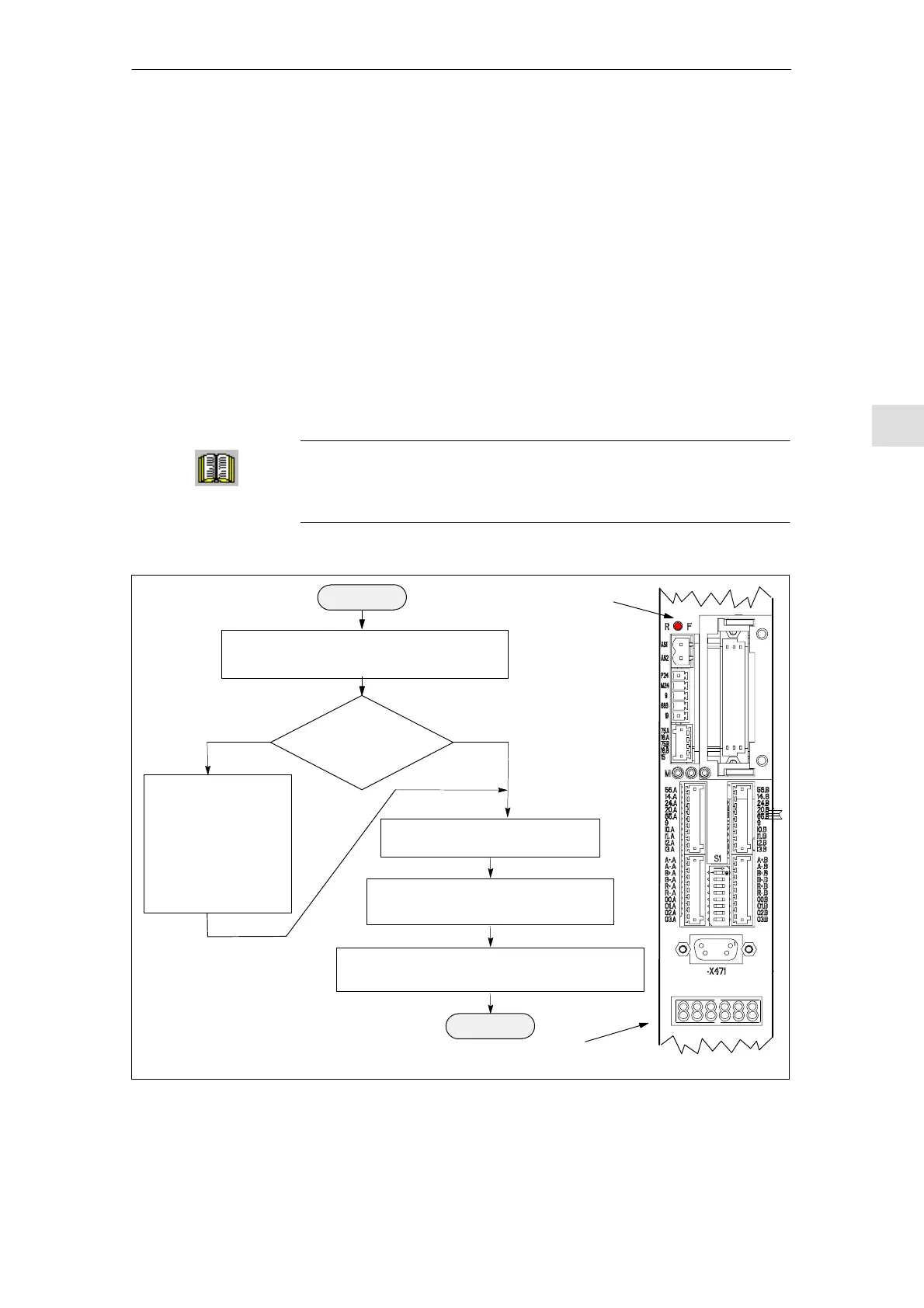

Fig. 4-1 Run–up of ”SIMODRIVE 611 universal”
General
information
