1.3 ”SIMODRIVE 611 universal” control board
1-40
Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
1.3.3 Optional modules
An additional 8 digital inputs and outputs can be realized using this
optional module.
The functionality of these inputs/outputs can be freely parameterized.
Note
The input/output terminals of the optional TERMINAL module are
– Before SW 4.1: permanently assigned to drive A or axis A
– From SW 4.1: can be freely assigned axes
The optional TERMINAL module can be used as follows,
dependent on the software release:
– The following applies before SW 2.4:
The module can only be used in the ”positioning” mode.
– The following applies before SW 2.4:
The module can be used independently of the operating mode.
Order No. [MLFB]: 6SN1114–0NA00–0AA0
I4
I5
I6
I7
I8
I9
I10
I11
O4
O5
O6
O7
O8
O9
O10
O11
X422
8 inputs
X432
8 outputs
For screws:
Tighten (due to the shield contact)
Max. torque = 0.8 Nm

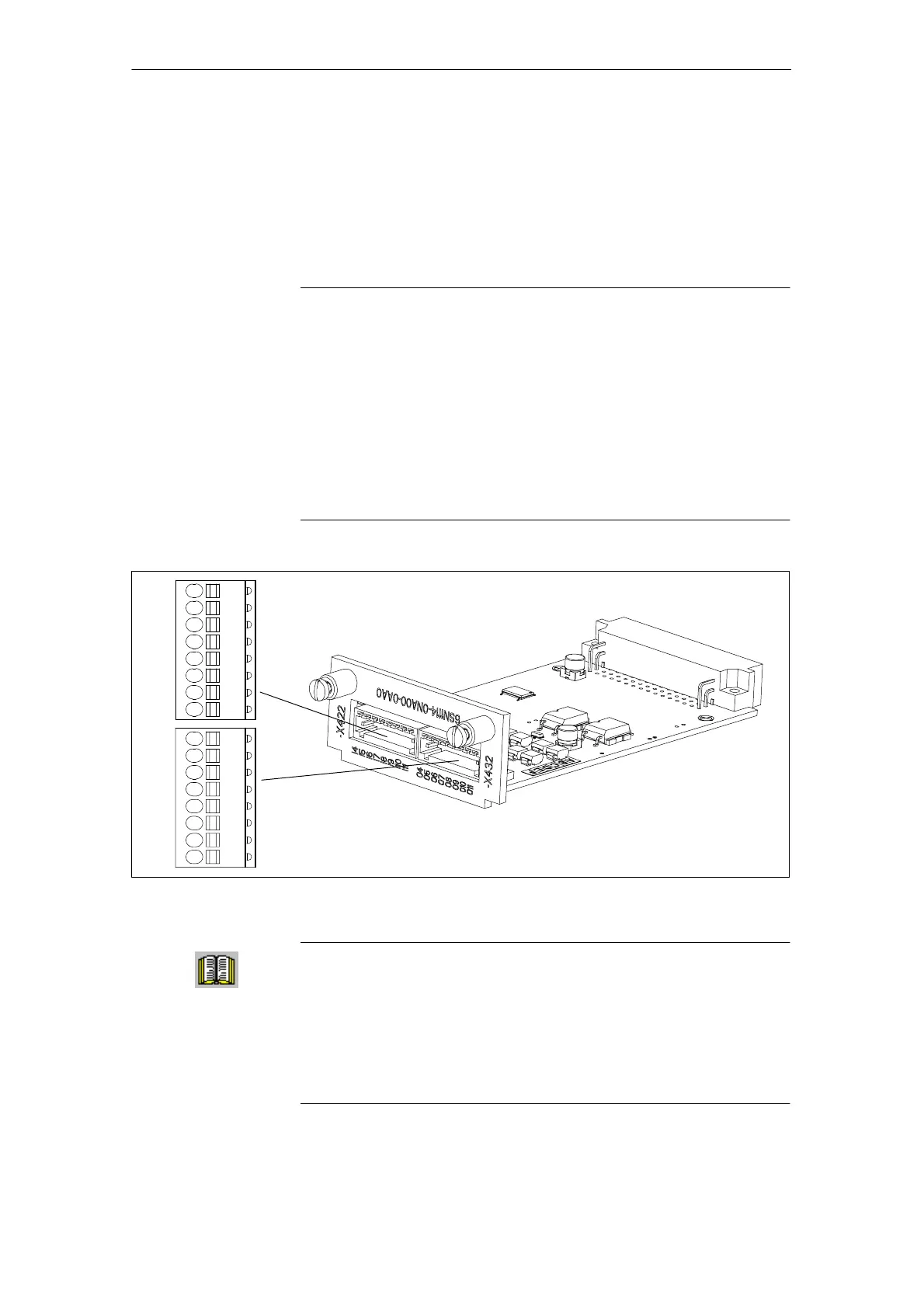

Fig. 1-7 Optional TERMINAL module
Reader’s note
Information regarding
Installing the option
The input and output terminals (X422 and X432)
The connection diagram and wiring/connecting the option module
is included in Chapter 2.
Optional
TERMINAL module
08.01
